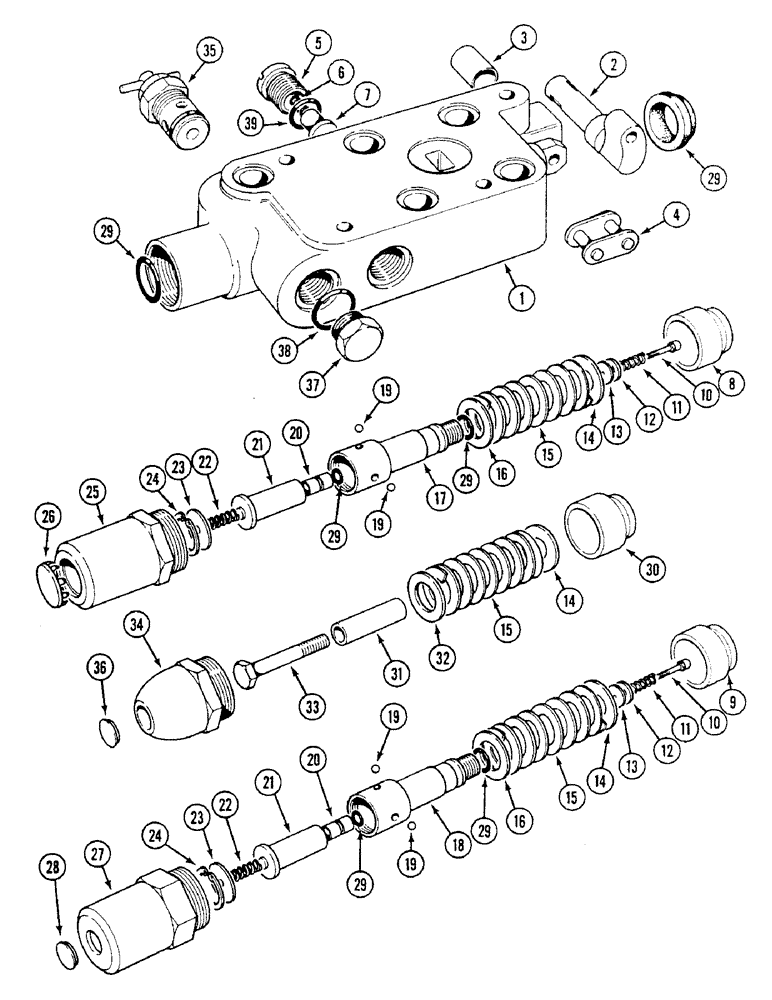

Запчасти Case IH 1494 (8-340) - REMOTE VALVE ASSEMBLIES (08) - HYDRAULICS

K965421

WASHER

VALVE ATTACHMENT detented

1шт.

K206438

VALVE

ATTACHMENT spring centered

1шт.

K204014

VALVE

ASSEMBLY detented with float, Includes: Ref. 1 - 39

1шт.

1

K956421

VALVE

ASSEMBLY detented, Includes: Ref. 2 - 39

1шт.

1

K206438

VALVE

ASSEMBLY spring detented, Includes: Ref. 2 - 39

1шт.

1

K204014

VALVE

ASSEMBLY detented with float, Includes: Ref. 2 - 39

1шт.

2

K965796

LEVER

SPINDLE valve

1шт.

3

K965797

BUSHING

valve body

2шт.

4

H63057

LINK

, Serial Range: spindle-spool

1шт.

5

K965740

PLUG

plunger, non-return valve

1шт.

6

K962067

SPRING

plunger

1шт.

7

FH730366

PLUNGER

POPPET, load check valve

1шт.

8

K962060

BUSHING

body, detented

1шт.

9

K261631

BUSHING

body, with float

1шт.

10

K965834

VALVE POPPET

PLUNGER spool, detent valve, detented or with float

1шт.

11

K963580

SPRING

detent, detented or with float

1шт.

12

K962080

SHIM,.010" Thk

(0.25 mm) (Detented or with float) .010" Thk

1шт.

12

K962081

SHIM,.005" Thk

(0.12 mm) (Detented or with float) .005" Thk

1шт.

13

K964499

PLATE

RESTRICTOR plunger, detented or with float

1шт.

14

K962082

DISC

WASHER, spool centering spring

1шт.

15

H57067

SPRING

retainer

1шт.

16

K962078

WASHER

spring, detented or with float

1шт.

17

K964500

RETAINER

spool detent, detented

1шт.

18

K261632

RETAINER

detent, with float

1шт.

19

K11483

BALL

BOLT steel, detented or with float

3шт.

20

K962071

PISTON

detent release, detented or with float

1шт.

21

K963574

PLUNGER

detent release, detented or with float

1шт.

22

K962073

SPRING

detent release, detented or with float

1шт.

23

K962079

WASHER

detent release, detented or with float

1шт.

24

100-2175

SNAP RING,0.75", Int, #75

Ring, Snap, , Detented or with float 0.75", Int, #75

1шт.

25

K963575

CAP

body, detented

1шт.

26

K962074

PLUG

cap, detented

1шт.

27

K261630

CAP

body, with float

1шт.

28

H226639

PLUG

air vent, with float

1шт.

29

K962083

GASKET KIT

KIT seal, detented or with float

1шт.

29

K965741

GASKET KIT

KIT seal, spring centered

1шт.

30

K965746

BUSHING

body, spring centered

1шт.

31

K965745

PLUG

SPACER bolt, spring centered

1шт.

32

K965744

WASHER

spring, spring centered

1шт.

33

K965743

SCREW

BOLT, special, spring centered

1шт.

34

K965742

CAP

body, spring centered

1шт.

35

K262018

VALVE

PLUG, double to single acting, spring centered

1шт.

36

K261652

PLUG

END CAP SPRING CENTERED

1шт.

37

K948415

PLUG

3/4 inch UNF

2шт.

38

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

39

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.
