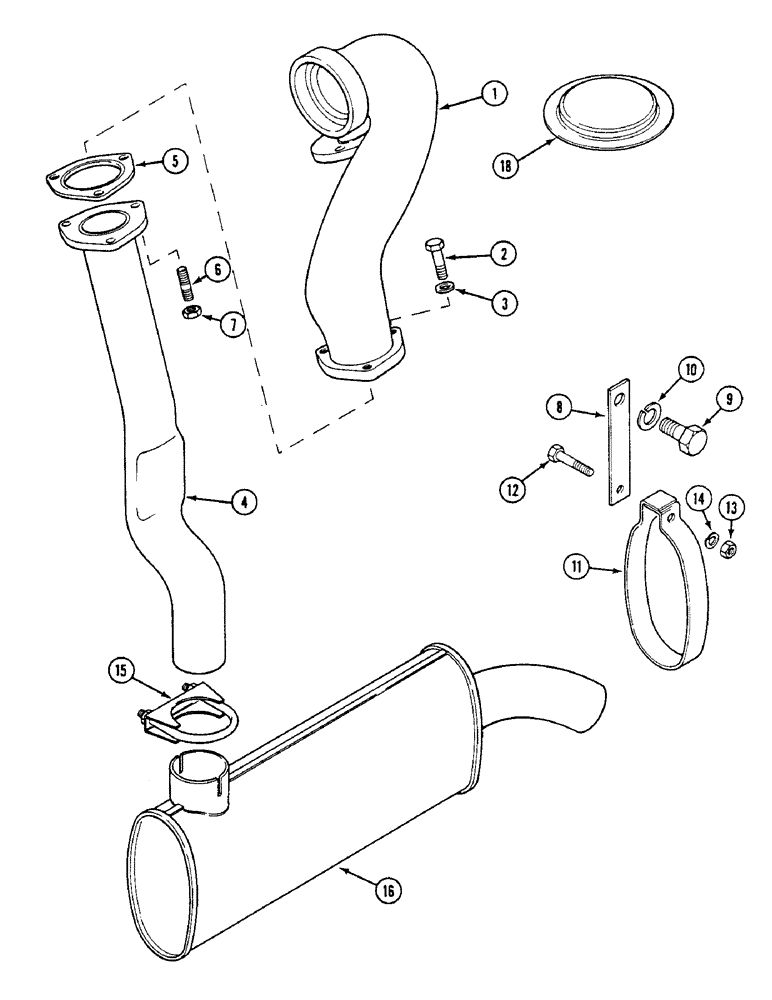

Запчасти Case IH 1494 (2-014) - DOWNSWEPT EXHAUST - UK5915, TRACTORS WITHOUT CAB (02) - ENGINE

UK5915

X

DOWNSWEPT EXHAUST UNIT, Replaces: UK5451, Includes: Ref. 1 - 18

1шт.

1

K207734

FLANGE

turbocharger outlet

1шт.

2

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

BOLT hex, 3/8 NC x 1-1/4 inch

3шт.

3

K19472

WASHER

flat, 3/8 inch, 10 mm

3шт.

4

K210122

PIPE, EXHAUST SYSTEM

PIPE, Serial Range: flange-muffler

1шт.

5

K912441

GASKET

, Serial Range: flange-pump

1шт.

6

K608203

STUD

inlet manifold, 3/8 NC x 1-7/16 inch

3шт.

7

425-106

NUT,3/8"-16, Cl 5

3шт.

8

K309875

BRACKET

SUPPORT muffler

2шт.

9

K603304

SCREW

BOLT hex, 5/8 x 1-1/4 inch NC

1шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

K210147

BRACKET

CLAMP muffler

1шт.

12

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

14

K19481

SPRING WASHER

WASHER lock, 5/16 inch

1шт.

15

K210125

CLAMP

, Serial Range: pipe-muffler

1шт.

16

K309676

MUFFLER

1шт.

18

K308886

PLATE

hood

1шт.
