Запчасти Case IH 1494 (8-334) - SECOND REMOTE VALVE, TRACTORS WITH CAB (08) - HYDRAULICS

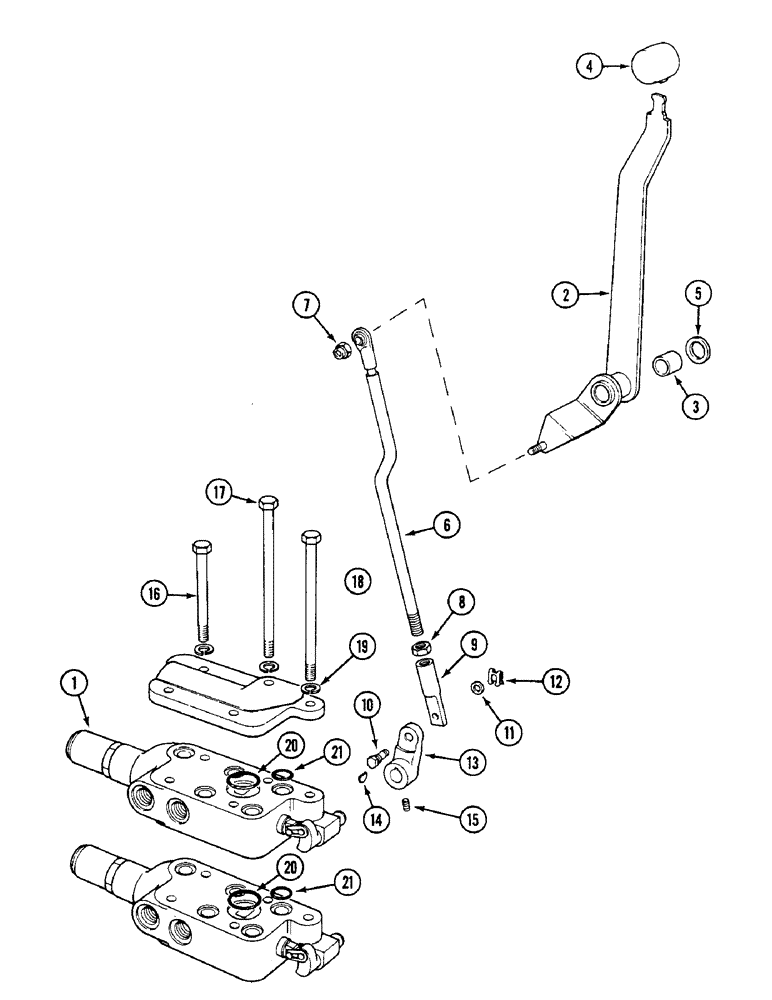

Схема запчастей Case IH 1494 - (8-334) - SECOND REMOTE VALVE, TRACTORS WITH CAB (08) - HYDRAULICS
5
3
10
9
1
2
20
12
19
20
17
21
14
13
15
6
8
4
7
11
21
16
18

Артикул

Название

Примечание

Количество

1

K956421

VALVE

ASSEMBLY detented, See Figure 8-340, Includes: Ref. 1A

1шт.

1

K206438

VALVE

ASSEMBLY spring centered, See Figure 8-340, Includes: Ref. 1A

1шт.

1a

K919242

COVER

PLATE cover

1шт.

UK6614

HOSE

CONTROLS, FITTINGS AND HOSE AT, tractors with single pump, Includes: Ref. 2 - 21

1шт.

UK6612

KIT

CONTROLS, FITTINGS AND HOSE AT, tractors with tandem pump, Includes: Ref. 2 - 21

1шт.

2

K306128

LEVER

ASSEMBLY control

1шт.

3

K655430

BUSHING

lever

2шт.

4

K306268

KNOB

control lever

1шт.

5

K655810

BUSHING

SPACER shaft

1шт.

6

K306820

ROD

second valve

1шт.

7

425-114

NUT,1/4"-28, G5

1шт.

8

280136

NUT,3/8"-16, G8

1шт.

9

K204969

ROD

END rod, single pump

1шт.

9

K204970

ROD

END rod, second valve

1шт.

10

K306319

PIN

, Serial Range: rod-lever

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

K625039

CLIP

retaining

1шт.

13

K306328

LEVER

second valve

1шт.

14

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

15

28-56

BOLT,Hex, 5/16" - 24 x 3/8", Gr 8

5/16 x 3/8 inch

1шт.

16

413-676

BOLT,Hex, 3/8" - 16 x 4-3/4", Gr 5

hex, 3/8 NC x 4-3/4 inch

2шт.

17

413-6116

BOLT,Hex, 3/8" - 16 x 7-1/4", Gr 5

3/8 x 7-1/4 inch, single pump

1шт.

17

413-6116

BOLT,Hex, 3/8" - 16 x 7-1/4", Gr 5

3/8 x 7-1/4 inch, tandem pump

2шт.

18

K600519

BOLT

3/8 UNC x 6-3/4 inch, single pump, order 413-6108

2шт.

18

113-2253

BOLT,Hex, 3/8" - 16 x 7-3/4", Gr 5

3/8 x 7-3/4 inch, tandem pump

1шт.

19

492-11038

LOCK WASHER,3/8"

5шт.

20

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

1-3/16 inch, 30 mm, ID

1шт.

21

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

REF

INSTRUCTION

HOSES AND COUPLINGS, See Figure 8-338

1шт.

Выбрано товаров: 29
