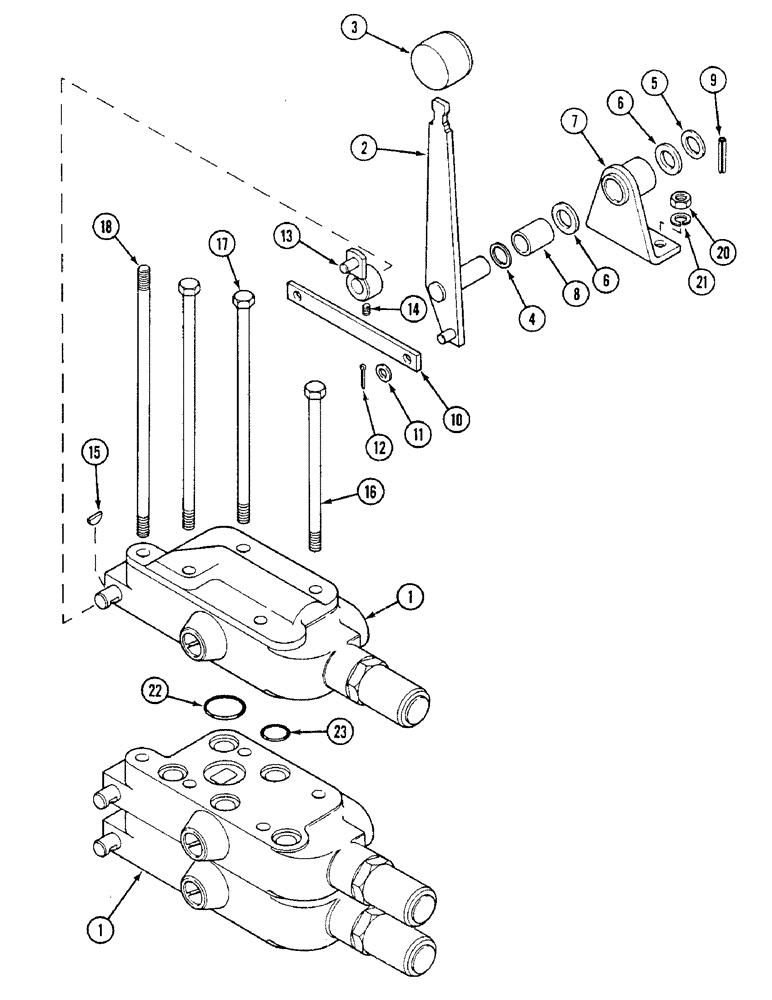

Запчасти Case IH 1494 (8-330) - THIRD REMOTE VALVE ATTACHMENT, TRACTORS WITHOUT CAB (08) - HYDRAULICS

1

K956421

VALVE

ASSEMBLY detented, no cover, See Figure 8-340, Includes: Ref. 1A

1шт.

1

K206438

VALVE

ASSEMBLY, spring centered, See Figure 8-340, Includes: Ref. 1A

1шт.

1a

K919242

COVER

PLATE cover

1шт.

UK5745

VALVE

FITTINGS ATTACHMENT, single pump, Includes: Ref. 2 - 23

1шт.

K5746

FITTINGS ATTACHEMNT, tandem pump, Includes: Ref. 2 - 23

1шт.

2

K306224

LEVER

hand

1шт.

3

K306268

KNOB

control lever

1шт.

4

K628130

SEAL

RING sealing

2шт.

5

K651781

WASHER

16 mm, order 895-11016

2шт.

6

K655810

BUSHING

SPACER shaft

2шт.

7

K306625

BRACKET

support, hand lever, Includes: Ref. 8

1шт.

8

K621377

BUSHING

lever pivot

1шт.

9

K657405

PIN

roll

1шт.

10

K306216

ARM

LINK valve

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.

12

K652195

PIN

cotter, 2 x 12 mm, order 733-2012

2шт.

13

K306199

LEVER

valve

1шт.

14

28-56

BOLT,Hex, 5/16" - 24 x 3/8", Gr 8

SCREW, 5/16 x 3/8 inch

1шт.

15

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

16

413-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

hex, 3/8 NC x 6-1/2 inch

2шт.

17

K600466

BOLT

3/8 UNC x 8-1/2 inch

1шт.

18

K600469

BOLT

3/8 UNC x 9-1/4 inch

1шт.

19

K608260

STUD

BOLT, 3/8 UNC x 10-1/2 inch

2шт.

20

425-106

NUT,3/8"-16, Cl 5

2шт.

21

492-11038

LOCK WASHER,3/8"

8шт.

22

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

1-3/16 inch, 30 mm, ID

1шт.

23

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

5шт.

REF

INSTRUCTION

HOSES AND COUPLINGS, See Figure 8-338

1шт.
