Запчасти Case IH 1494 (8-328) - SECOND REMOTE VALVE, TRACTORS WITHOUT CAB (08) - HYDRAULICS

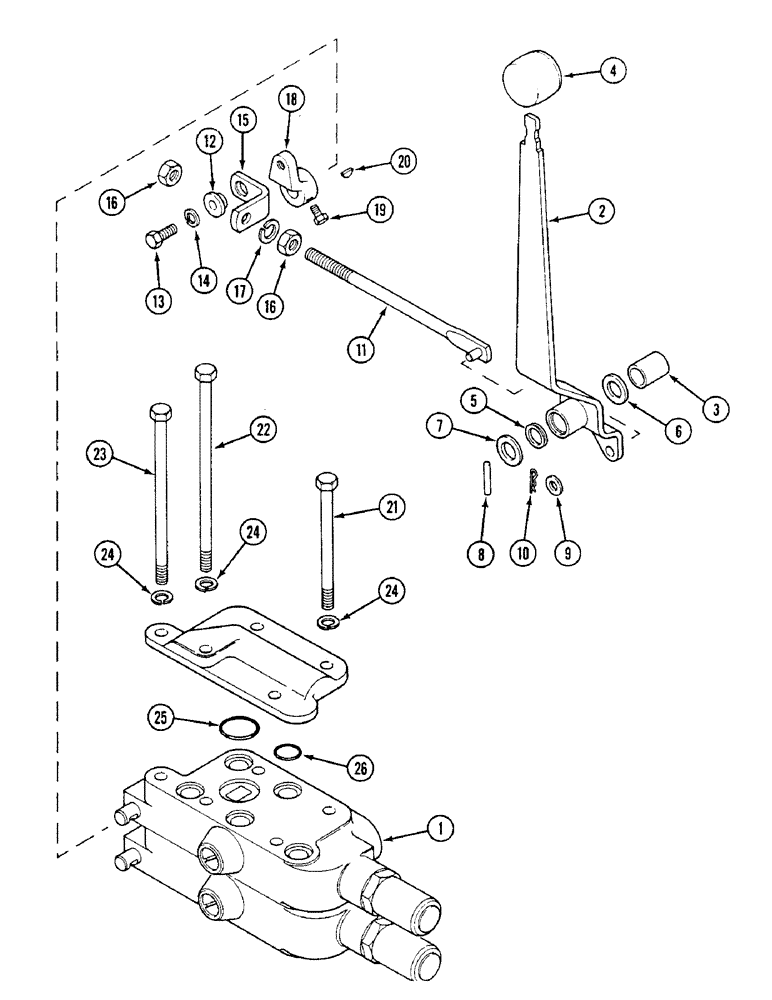

Схема запчастей Case IH 1494 - (8-328) - SECOND REMOTE VALVE, TRACTORS WITHOUT CAB (08) - HYDRAULICS
20
11
26
13
2
19
9
3
21
16
6
16
23
24
15
24
4
1
10
7
14
25
5
24
17
18
8
22
12

Артикул

Название

Примечание

Количество

1

K956421

VALVE

ATTACHMENT detented, Includes: Ref. 1A

1шт.

1

K206438

VALVE

ATTACHMENT spring centered, Includes: Ref. 1A

1шт.

1a

K919242

COVER

PLATE cover

1шт.

UK6613

KIT

CONTROLS, FITTINGS AND HOSE, tractors with single pump, Includes: Ref. 2 - 26

1шт.

UK6611

KIT

CONTROLS, FITTINGS AND HOSE, tractors with tandem pump, Includes: Ref. 2 - 26

1шт.

2

K306626

LEVER

hand, second valve, Includes: Ref. 3

1шт.

3

K621377

BUSHING

lever pivot

1шт.

4

K306268

KNOB

control lever

1шт.

5

K628130

SEAL

RING sealing

2шт.

6

K651781

WASHER

16 mm

1шт.

7

K655810

BUSHING

SPACER shaft

2шт.

8

38-11420

LOCK PIN,7/32" x 1 1/4", Slotted

Pin, 7/32" x 1 1/4", Slotted

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

1шт.

10

K950865

CLIP

retaining

1шт.

11

K307805

ARM

LINK second valve

1шт.

12

K307809

BUSHING

link

1шт.

13

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

14

K19481

SPRING WASHER

WASHER lock, 5/16 inch, order 492-11031

1шт.

15

K307808

BRACKET

link

1шт.

16

825-1410

NUT,M10, Cl 8

2шт.

17

892-11010

LOCK WASHER,M10

1шт.

18

K306198

BUCKLE

LEVER second valve

1шт.

19

28-56

BOLT,Hex, 5/16" - 24 x 3/8", Gr 8

SCREW, 5/16 x 3/8 inch

1шт.

20

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

21

413-676

BOLT,Hex, 3/8" - 16 x 4-3/4", Gr 5

hex, 3/8 NC x 4-3/4 inch

2шт.

22

413-6116

BOLT,Hex, 3/8" - 16 x 7-1/4", Gr 5

3/8 x 7-1/4 inch

1шт.

23

K600519

BOLT

3/8 UNC x 6-3/4 inch, single pump, order 413-6108

2шт.

23

113-2253

BOLT,Hex, 3/8" - 16 x 7-3/4", Gr 5

3/8 UNC x 7-3/4 inch, tandem pump

2шт.

24

492-11038

LOCK WASHER,3/8"

5шт.

25

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

1-3/16 inch, 30 mm, ID

2шт.

26

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

10шт.

REF

INSTRUCTION

HOSES AND COUPLINGS, See Figure 8-338

1шт.

Выбрано товаров: 32
