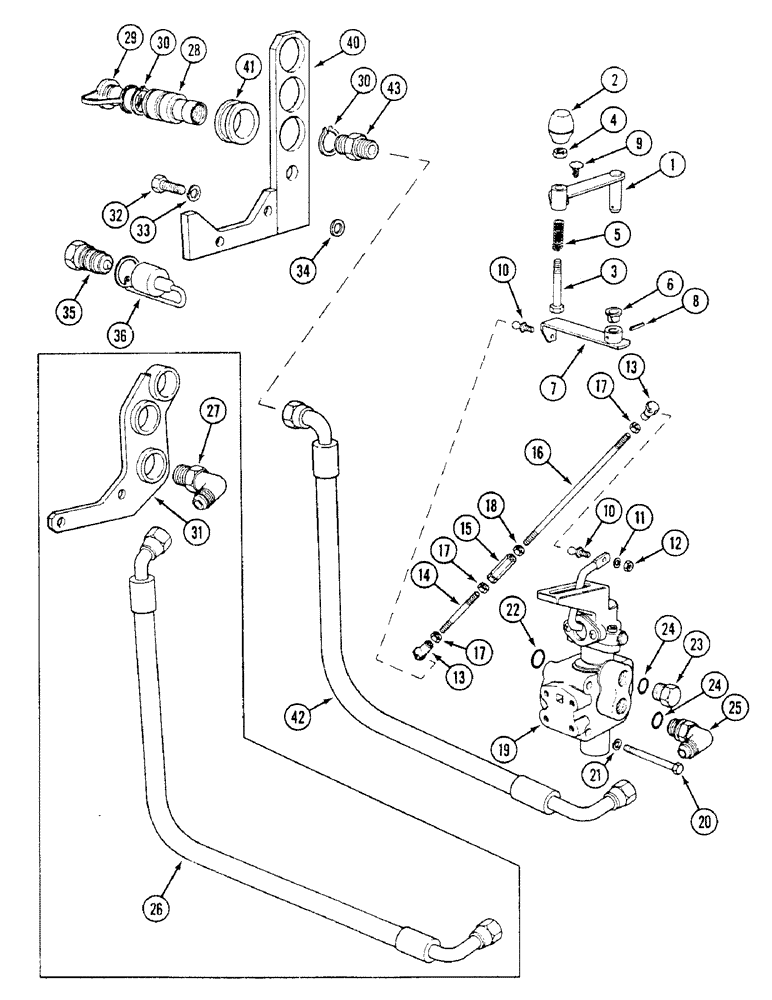

Запчасти Case IH 1494 (8-322) - THREE-WAY ATTACHMENT, TRACTORS WITH CAB, NOT NORTH AMERICA (08) - HYDRAULICS

UK5611

CONTROL

S UNIT three way valve, Includes: Ref. 1 - 18

1шт.

1

K306497

LEVER

hand

1шт.

2

K950493

KNOB

selector lever

1шт.

3

K600477

BOLT

3/8 UNC x 2-1/2 inch

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

K625059

SPRING

1шт.

6

K621310

BUSHING

cab floor

2шт.

7

K306494

LEVER

1шт.

8

138-1816

LOCK PIN,1/8" x 1", Slotted, Stainless

Pin, 1/8" x 1, Slotted, Stainless

1шт.

9

K656827

BUTTON

PLUG plastic

1шт.

10

K621904

BALL JOINT

PIVOT END ball

2шт.

11

K626552

WASHER

lock, 1/4 inch

2шт.

12

K617030

NUT

1/4 inch UNF

2шт.

13

K621903

BALL JOINT

SOCKET END, 1/4 inch UNF

2шт.

14

K205698

ROD

1/4 UNF x 3-1/2 inch

1шт.

15

K949065

SLEEVE

adjusting, 1/4 inch UNF

1шт.

16

K207037

ROD

1/4 UNF x 11-1/4 inch, 290 mm

1шт.

17

K617030

NUT

1/4 inch UNF, order 230-4714

3шт.

18

K617593

NUT

1/4 inch UNF

1шт.

UK5612

CONTROL

THREE WAY VALVE ATTACHMENT, Includes: Ref. 19 - 30

1шт.

19

K262225

VALVE

three way, See Figure 8-324

1шт.

20

K600416

BOLT

3/8 UNC x 3 inch, order 413-648

4шт.

21

492-11038

LOCK WASHER,3/8"

4шт.

22

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

23

K920826

O-RING

PLUG, 3/4 inch UNF

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

25

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

26

K202579

HOSE

TUBE flexible, 3/4 - 7/8 UNF x 25-1/4 inch, 640 mm

1шт.

26

K210342

HOSE

TUBE flexible, 685 mm

1шт.

27

K920858

ADAPTER

UNION, 7/8 UNF, P.I.N.11503469 and after

1шт.

28

A177478

COUPLING, QUICK, FEM

COUPLING female, breakaway

1шт.

29

A137135

PLUG

dust protective

1шт.

30

104-11150

SNAP RING,#150, 1.408", Ext

RING snap

2шт.

31

K200646

COUPLING, BREAK AWAY

COUPLING ASSEMBLY quick release, implement half

1шт.

32

K200645

CAP

COVER dust, implement coupling

1шт.

UK4345

BREAKER POINTS

BRACKET ASSEMBLY mounting, prior to P.I.N. 11518614, Includes: Ref. 33 - 36

1шт.

33

K202578

BRACKET

coupling support

1шт.

34

K603108

SCREW

BOLT axle housing, 1/2 UNC x 1-1/2 inch, order 413-824

2шт.

35

K19484

LOCK WASHER

WASHER lock, 1/2 inch, order 492-11050

2шт.

36

K626686

WASHER

flat, 1/2 inch, 13 mm

2шт.

UK6754

BRACKET ASSEMBLY mounting, P.I.N. 11518614 and after, Includes: Ref. 40 and 32 - 34

1шт.

40

K210350

BRACKET

coupling support, one valve

1шт.

32

K603141

SCREW

BOLT, 1/2 inch UNC x 1-1/4 inch

2шт.

33

K19484

LOCK WASHER

WASHER lock, 1/2 inch, order 492-11050

2шт.

34

K626686

WASHER

flat, 1/2 inch, 13 mm

2шт.

41

A149221

RETAINER

coupling, used with K210350

1шт.

42

K210342

HOSE

TUBE flexible, 686 mm, P.I.N.11518614 and after

1шт.

43

K920858

ADAPTER

UNION, 7/8 UNF, P.I.N.11518614 and after

1шт.
