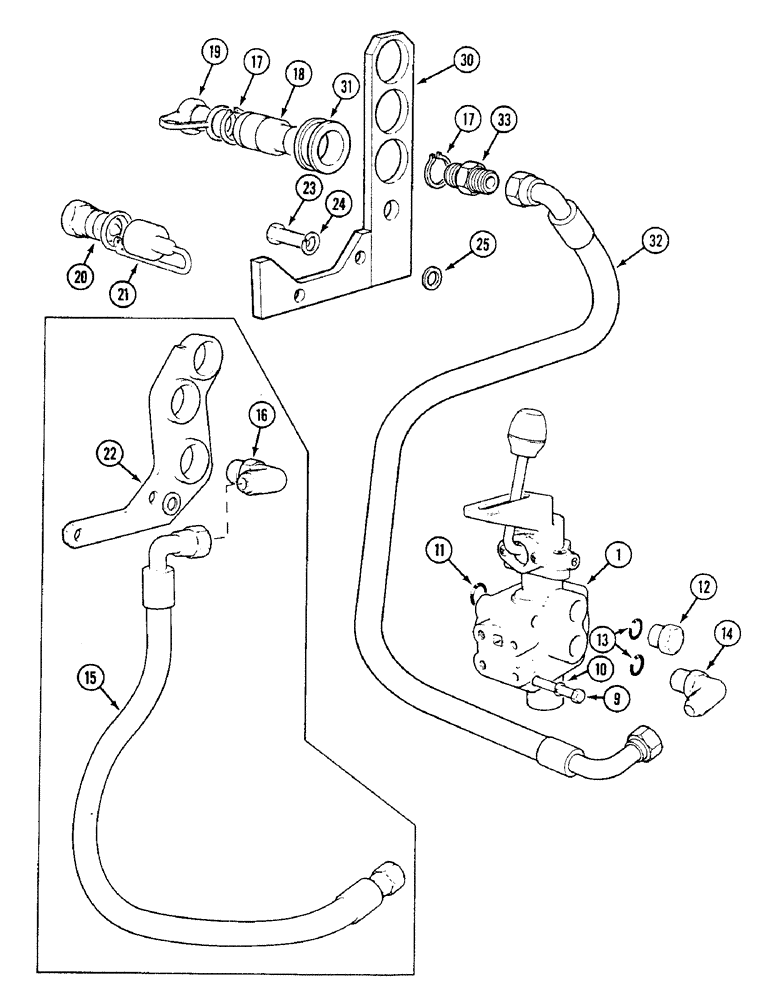

Запчасти Case IH 1494 (8-320) - THREE-WAY VALVE ATTACHMENT, TRACTORS WITHOUT CAB, NOT NORTH AMERICA (08) - HYDRAULICS

UK5647

VALVE

THREE-WAY VALVE ATTACHMENT, Includes: Ref. 1 - 19

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY three way, See Figure 8-324

1шт.

9

K600416

BOLT

3/8 UNC x 3 inch, order 413-648

4шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

12

K920826

O-RING

PLUG, 3/4 inch UNF

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

15

K210342

HOSE

TUBE flexible, 640 mm, Serial Range: prior-P.I.N.11518614

1шт.

16

K622113

FITTING

ELBOW, 7/8 inch UNF x 90 degrees

1шт.

16

K920858

ADAPTER

UNION, 7/8 UNF, P.I.N. 11503469 and after

1шт.

17

104-11150

SNAP RING,#150, 1.408", Ext

RING snap

2шт.

18

A177478

COUPLING, QUICK, FEM

COUPLING female, breakaway

1шт.

19

A137135

PLUG

dust protective

1шт.

20

K200646

COUPLING, BREAK AWAY

COUPLING ASSEMBLY quick release, implement half, Includes: Ref. 21

1шт.

21

K200645

CAP

COVER dust, implement coupling

1шт.

UK4345

BREAKER POINTS

BRACKET ASSEMBLY mounting, prior to P.I.N.11518614, Includes: Ref. 22 - 25

1шт.

22

K202578

BRACKET

coupling support

1шт.

23

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

25

K626686

WASHER

flat, 1/2 inch, 13 mm

2шт.

UK6754

BRACKET ASSEMBLY mounting, P.I.N.11518614 and after, Includes: Ref. 30 and 23 - 25

1шт.

30

K210350

BRACKET

- coupling support, one valve

1шт.

23

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

24

K19484

LOCK WASHER

WASHER lock, 1/2 inch, order 492-11050

2шт.

25

K626686

WASHER

flat, 1/2 inch, 13 mm

2шт.

31

A149221

RETAINER

coupling

1шт.

32

K210342

HOSE

TUBE flexible, 686 mm, P.I.N.11518614 and after

1шт.

33

K920858

ADAPTER

UNION, 7/8 UNF, P.I.N.11518614 and after

1шт.
