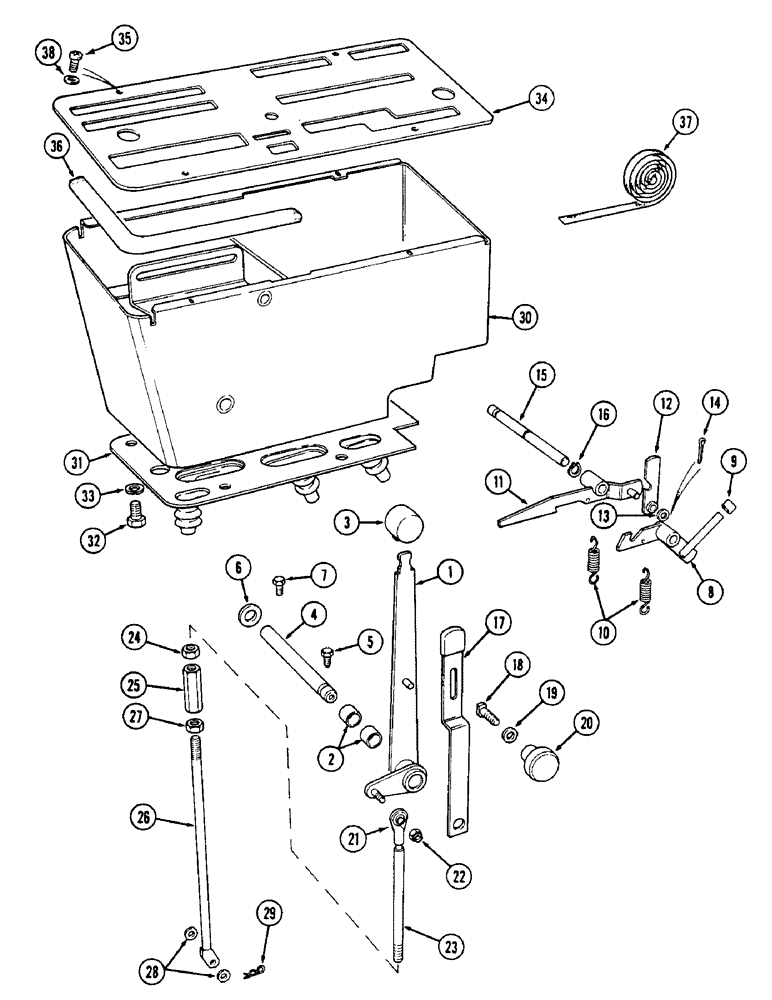

Запчасти Case IH 1494 (8-318) - CONTROL LEVER AND CONSOLE, TRACTORS WITH CAB (08) - HYDRAULICS

1

K306116

LEVER

ASSEMBLY control, hydraulic system, Includes: Ref. 2

1шт.

2

K655430

BUSHING

lever

2шт.

3

K306268

KNOB

control lever

1шт.

4

K306161

SHAFT

lever

1шт.

5

K650803

BOLT,M6 - 1 x 12mm, Grade 8.8

SCREW locating, M6

1шт.

6

K655810

BUSHING

SPACER shaft

1шт.

7

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

8

K306151

LATCH

LOCK constant pumping

1шт.

9

K306699

KNOB

lock

1шт.

10

K624938

SPRING

return

2шт.

11

K306146

LATCH

LOCK maximum lift

1шт.

12

K306324

LEVER

LOCK lever

1шт.

13

K626662

WASHER

1/4 inch

1шт.

14

K623605

PIN

cotter, 1/16 x 1/2 inch, order 432-48

1шт.

15

K306144

SHAFT

cross

1шт.

16

K621587

RING, SNAP

RING retaining, 3/8 inch, 10 mm, external, order 100-3337

1шт.

17

K306143

GUIDE

lever

1шт.

18

K909577

STUD

5/16 inch UNF

1шт.

19

K626682

WASHER

lever pin, 5/16 inch, 8 mm

1шт.

20

K921826

SERRATED NUT

hand, 5/16 UNF

1шт.

21

NSS

NOT SOLD SEPARAT

JOINT ball

1шт.

22

425-114

NUT,1/4"-28, G5

1шт.

23

K306746

ROD

upper

1шт.

24

K616982

NUT

3/8 inch UNF

1шт.

25

K950846

NUT

SLEEVE adjusting, 3/8 inch UNF

1шт.

26

K306822

ROD

lower

1шт.

27

K622808

NUT

3/8 inch UNF, order 129-289

1шт.

28

K626662

WASHER

1/4 inch

2шт.

29

K950865

CLIP

retaining

1шт.

30

K307874

PANEL

CONSOLE hydraulic control

1шт.

31

K306501

BOOT

COVER lever

1шт.

32

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

4шт.

33

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

34

K306674

COVER

console, top

1шт.

35

K656180

SCREW

No. 12 x 1/2 inch, 12 x 1/2 inch

4шт.

36

K628232

GUARD

STRIP edging, 240 mm

1шт.

37

K307130

STRIP

damping, 9 x 1.5 x 285 mm

1шт.

38

K626659

WASHER

nylon

4шт.
