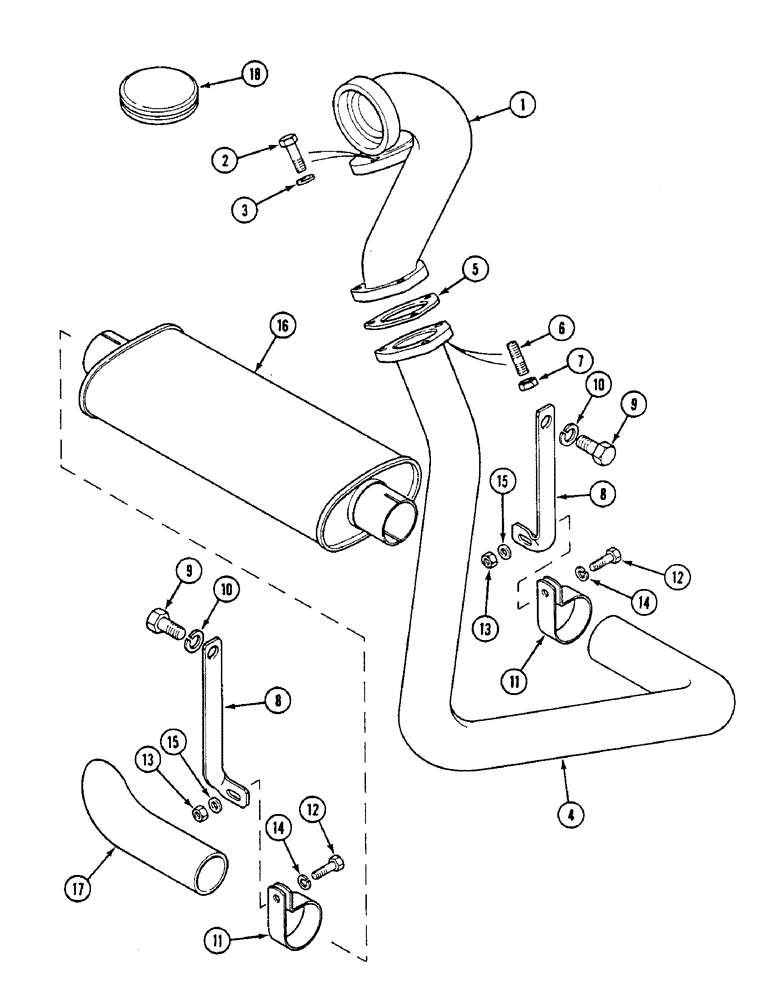

Запчасти Case IH 1494 (2-012) - DOWNSWEPT EXHAUST - UK5451, TRACTORS WITHOUT CAB (02) - ENGINE

UK5451

X

DOWNSWEPT EXHAUST UNIT, Replaced by UK5915, See Figure 2-014, Includes: Ref. 1 - 18

1шт.

1

K206197

FLANGE

turbocharger outlet

1шт.

2

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

BOLT hex, 3/8 NC x 1-1/4 inch

3шт.

3

K19472

WASHER

flat, 3/8 inch, 10 mm

3шт.

4

K206216

PIPE, EXHAUST SYSTEM

PIPE, Serial Range: flange-muffler

1шт.

5

K912441

GASKET

manifold

1шт.

6

K608203

STUD

inlet manifold, 3/8 NC x 1-7/16 inch

3шт.

7

425-106

NUT,3/8"-16, Cl 5

3шт.

9

K603304

SCREW

BOLT hex, 5/8 x 1-1/4 inch NC

2шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

K628385

CLIP

CLAMP muffler

2шт.

12

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

BOLT hex, 3/8 NC x 1-1/4 inch

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

K19472

WASHER

flat, 3/8 inch, 10 mm

2шт.

16

K305940

MUFFLER

1шт.

17

K206230

PIPE, EXHAUST SYSTEM

TAIL PIPE

1шт.

18

K307422

INSERT

PLUG hood, plastic, 98 mm diameter

1шт.
