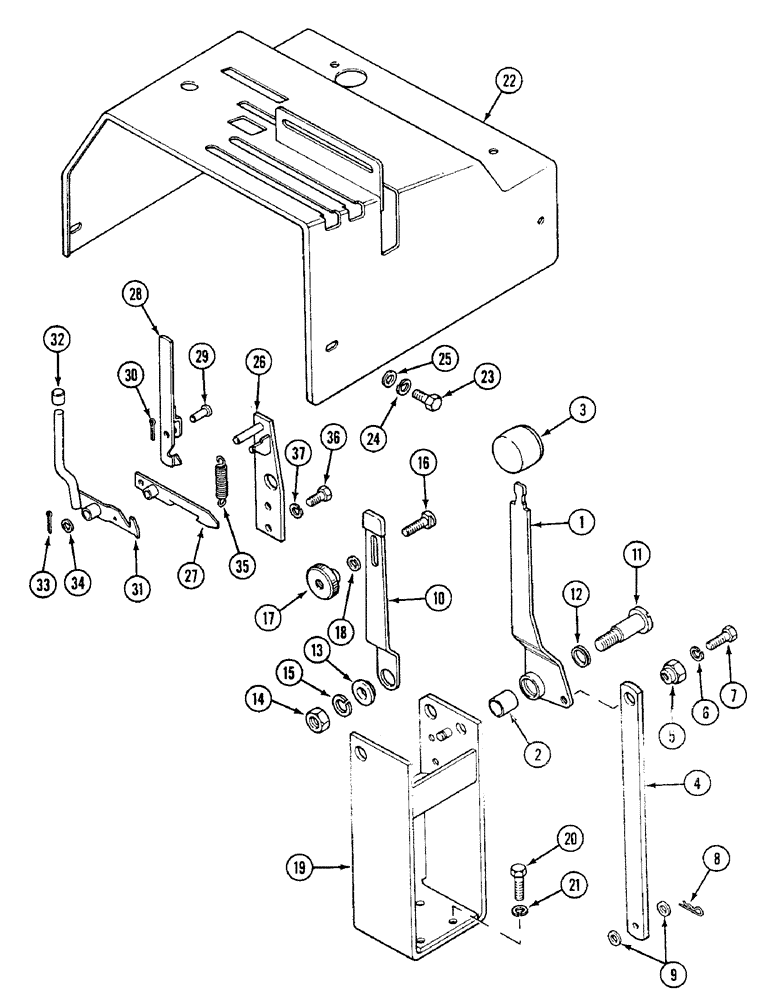

Запчасти Case IH 1494 (8-316) - CONTROL LEVER AND CONSOLE, TRACTORS WITHOUT CAB (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
K306627
LEVER
hydraulic control, Includes: Ref. 2
1шт.
2
K621377
BUSHING
lever pivot
1шт.
3
K306268
KNOB
control lever
1шт.
4
K306195
LINK
ROD connecting
1шт.
5
K306196
BUSHING
eccentric
1шт.
6
K19481
SPRING WASHER
WASHER lock, 5/16 inch
1шт.
7
K612804
SCREW
BOLT set, 5/8 UNF x 7/8 inch
1шт.
8
K950865
CLIP
retaining
1шт.
9
K626662
WASHER
1/4 inch
2шт.
10
K306190
GUIDE
LEVER guide
1шт.
11
K305521
PIN
pivot, M12
1шт.
12
K626130
RING sealing
2шт.
13
K305522
BUSHING
SPACER pivot
1шт.
14
825-1112
NUT,M12, Cl 8
hex, 12 mm, 1.75
1шт.
15
K651850
SPRING
WASHER lock, 12 mm
1шт.
16
K909577
STUD
5/16 inch UNF
1шт.
17
K921826
SERRATED NUT
hand, 5/16 UNF
1шт.
18
K651907
WASHER
5/16 inch, 8 mm, special
1шт.
19
K306181
SUPPORT
BRACKET lever support
1шт.
20
K602806
BOLT
5/16 UNC x 1-1/8 inch
3шт.
21
K19481
SPRING WASHER
WASHER lock, 5/16 inch
3шт.
22
K306370
PANEL
CONSOLE controls, without 2 post folding ROPS
1шт.
22
REF
INSTRUCTION
CONSOLE controls, with 2 post folding ROPS, See Figure 9-410
1шт.
23
K651242
BOLT
M8 x 20 mm
6шт.
24
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
6шт.
25
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
flat, 9 x 17 x 1.6 mm
6шт.
REF
INSTRUCTION
LATCH UNIT control lever, order components, Includes: Ref. 26 - 32
1шт.
26
K306185
SUPPORT
BRACKET support, lock
1шт.
27
K306244
LATCH
LOCK hold
1шт.
28
K306248
LATCH
LEVER hand
1шт.
29
K658509
PIN
clevis
1шт.
30
K652181
PIN
cotter, 1.6 x 10 mm
1шт.
31
K306228
LATCH
LOCK full lift
1шт.
32
K306699
KNOB
lock
1шт.
33
K652183
PIN
cotter, 1.6 x 16 mm
1шт.
34
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
flat, 9 x 17 x 1.6 mm
1шт.
35
K624938
SPRING
return
2шт.
36
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
hex, full threads, 8 - 1.25 x 16 mm
2шт.
37
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
2шт.
