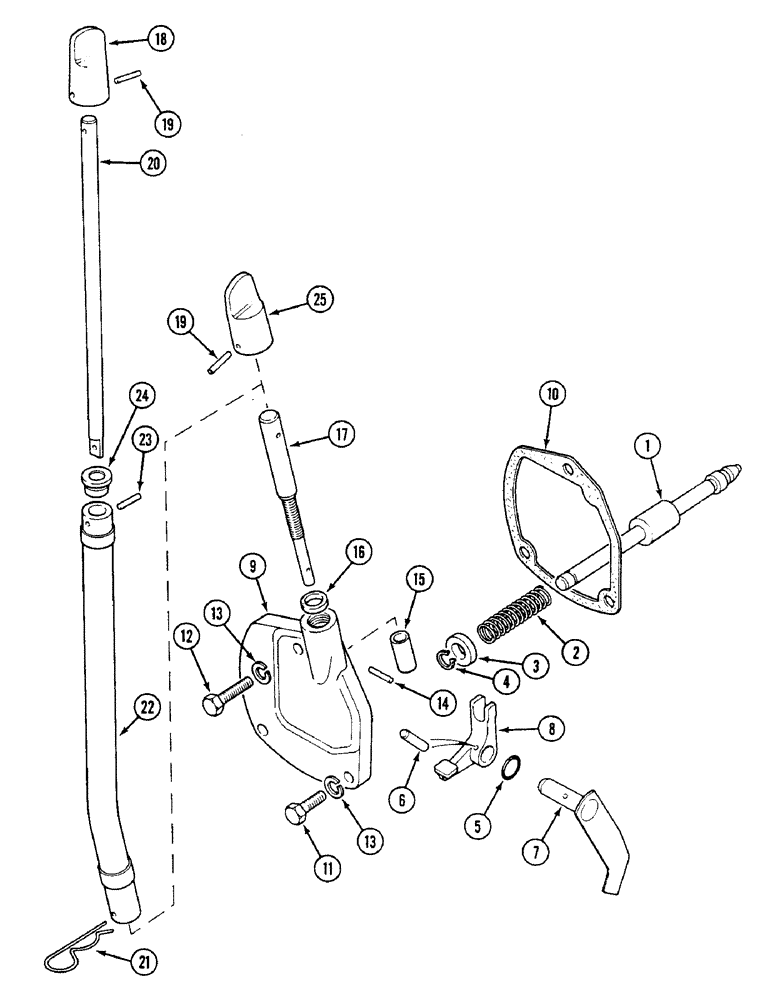

Запчасти Case IH 1494 (8-314) - FLOW RATE LOWERING CONTROL (08) - HYDRAULICS

1

K202425

NEEDLE

VALVE needle

1шт.

2

K625050

SPRING

pressure

1шт.

3

K627480

COLLAR

thrust

1шт.

4

K621562

RING, SNAP

RING snap, 3/8 inch, 10 mm, external

1шт.

5

K24554

O-RING

RING sealing, 1/2 inch, 13 mm, diameter

1шт.

6

38-1812

LOCK PIN,1/8" x 3/4", Slotted

Pin, 1/8" x 3/4", Slotted

1шт.

7

K202417

SHAFT

pivot

1шт.

8

K202416

FORK

actuating

1шт.

9

K203105

COVER

control housing

1шт.

10

K202414

GASKET,1.59mm Thk

cover

1шт.

11

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

12

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

hex, 5/16 NC x 1-1/2 inch

1шт.

13

K19481

SPRING WASHER

WASHER lock, 5/16 inch

3шт.

14

K623728

PIN

3/32 x 1/2 inch

1шт.

15

K202422

BLOCK

SPACER spindle

1шт.

16

K623681

WIPER

RING sealing, 1/2 inch, 13 mm, ID

1шт.

17

K202421

SCREW

SPINDLE adjusting

1шт.

18

K306344

KNOB

selector, tractor with cab

1шт.

19

138-1816

LOCK PIN,1/8" x 1", Slotted, Stainless

Pin, 1/8" x 1, Slotted, Stainless

1шт.

20

K306829

SHAFT

SPINDLE control, tractor with cab

1шт.

21

K624874

SPRING

CLIP spring, 3/4 inch

1шт.

22

K306340

HOSE

DRIVE flexible, tractor with cab

1шт.

23

38-1812

LOCK PIN,1/8" x 3/4", Slotted

Pin, 1/8" x 3/4", Slotted

1шт.

24

K659210

BUSHING

plastic

2шт.

25

K306670

KNOB

control spindle, tractor without cab

1шт.
