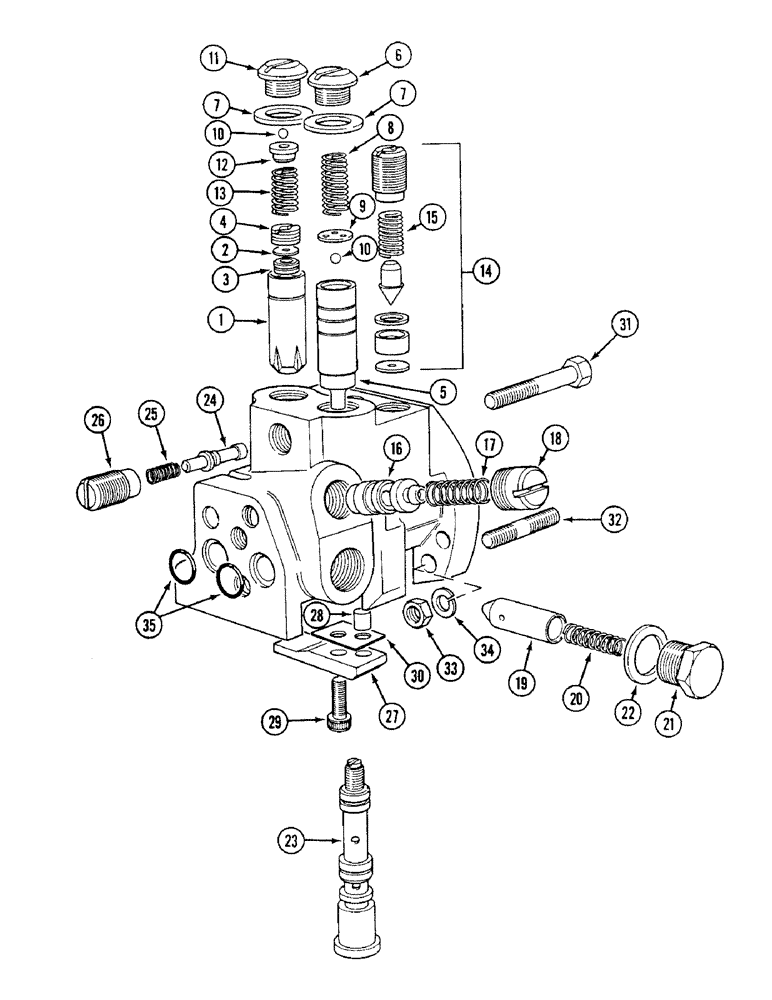

Запчасти Case IH 1494 (8-306) - SELECTAMATIC CONTROL VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
K262493
VALVE
CONTROL VALVE ASSEMBLY, new, Replaces: K956606, Includes: Ref. 1 - 26
1шт.
1
NSS
NOT SOLD SEPARAT
PLUNGER by pass valve
1шт.
2
K913621
WASHER
restrictor
1шт.
3
K921154
FILTER
by pass plunger
1шт.
4
K947759
PLUG
3/8 inch UNF
1шт.
5
NSS
NOT SOLD SEPARAT
PLUNGER hold valve
1шт.
6
K913242
PLUG
5/8 inch UNF
1шт.
7
K623515
SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk
WASHER sealing, 5/8 inch, 16 mm
2шт.
8
K24832
SPRING
pressure
1шт.
9
K920136
SHIM
RETAINER ball
1шт.
10
K11548
BALL
steel, 1/8 inch, 3 mm, OD
2шт.
11
K948067
PLUG
5/8 inch UNF
1шт.
12
K947977
RETAINER
spring
1шт.
13
K24832
SPRING
pressure
1шт.
14
K961794
VALVE
ASSEMBLY relief, pre-set, set by manufacturer, Includes: Ref. 15
1шт.
15
K625160
SPRING
relief valve
1шт.
16
K202530
SPOOL
rate of lowering valve
1шт.
17
K625108
SPRING
rate of lowering valve
1шт.
18
K202531
CAP
PLUG, 3/8 inch BSP
1шт.
19
K916395
PLUNGER
non return valve
1шт.
20
K625167
SPRING
non return valve
1шт.
21
K916397
PLUG
3/4 inch UNF
1шт.
22
K623530
SEAL
WASHER sealing, 3/4 inch, 19 mm
1шт.
23
NSS
NOT SOLD SEPARAT
SPOOL valve
1шт.
24
NSS
NOT SOLD SEPARAT
PLUNGER, latching valve
1шт.
25
K625180
SPRING
latching valve
1шт.
26
K913971
PLUG
9/16 inch UNF
1шт.
27
K912464
WASHER
PLATE abutment
1шт.
28
K24853
PIN
DOWEL locating, 1/4 x 11/16 inch
1шт.
29
K606803
SCREW
self locking, 1/4 inch UNC
1шт.
30
K912467
SHIM,.015" Thk
(0.38 mm) .015" Thk
2шт.
30
K912465
SHIM,.003" Thk
(0.05 mm) .003" Thk
1шт.
30
K912466
SHIM,.007" Thk
(0.18 mm) .007" Thk
1шт.
31
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
hex, 5/16 NC x 2-1/4 inch
1шт.
32
K608143
STUD
5/16 UNC x 1-1/2 inch
2шт.
33
9635082
NUT,5/16" - 18, Gr 5
5/16 inch UNC
2шт.
34
K19481
SPRING WASHER
WASHER lock, 5/16 inch
3шт.
35
K625408
O-RING
7/16 inch, 11 mm, ID
2шт.
K962813
GASKET
SEAL KIT control valve
1шт.
Выбрано товаров: 39
