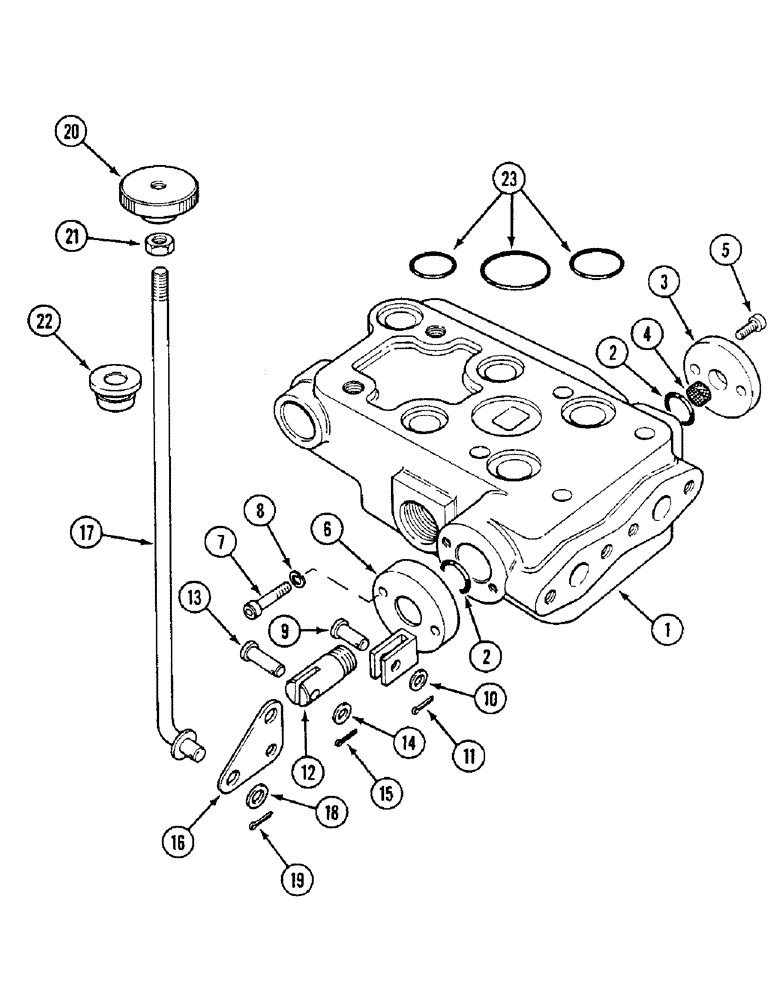

Запчасти Case IH 1494 (8-302) - COMBINING VALVE, TRACTORS WITHOUT CAB (08) - HYDRAULICS

1

K206877

HOUSING

VALVE ASSEMBLY combining, Includes: Ref. 2 - 23

1шт.

2

K625405

O-RING,0.549" ID x 0.103" Width

9/16 inch, 14 mm, ID

2шт.

3

K202852

CAP

ASSEMBLY end, Includes: Ref. 4

1шт.

4

K915393

FOAM

PAD breather

1шт.

5

K616485

SCREW

No. 10 UNF x 1/2 inch

2шт.

6

K206906

CAP

end

1шт.

7

K616489

SOCKET/RECEPTACLE

SCREW, No. 10 UNF x 1 inch

2шт.

8

K19488

SPRING WASHER

lock, 3/16 inch

2шт.

9

K625981

PIN

clevis, 1/4 x 9/16 inch

1шт.

10

K627473

WASHER

1/4 inch, 6 mm

1шт.

11

K652181

PIN

cotter, 1.6 x 10 mm

1шт.

12

K203441

SPOOL

EXTENSION spool

1шт.

13

K625969

PIN

clevis, 1/4 x 13/16 inch

1шт.

14

K627473

WASHER

1/4 inch, 6 mm

1шт.

15

K652181

PIN

cotter, 1.6 x 10 mm

1шт.

16

K206717

LEVER

actuating

1шт.

17

K306431

ROD

hand

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

1шт.

19

K652195

PIN

cotter, 2 x 12 mm

1шт.

20

K921826

SERRATED NUT

hand, 5/16 UNF

1шт.

21

425-115

NUT,5/16"-24, G5

lock, 5/16 inch UNF

1шт.

22

K306665

BUSHING

plastic

1шт.

23

REF

INSTRUCTION

O-RING seals, See Figure 8-294

1шт.
