Запчасти Case IH 1494 (8-298) - HYDRAULIC TUBES - REAR AXLE (08) - HYDRAULICS

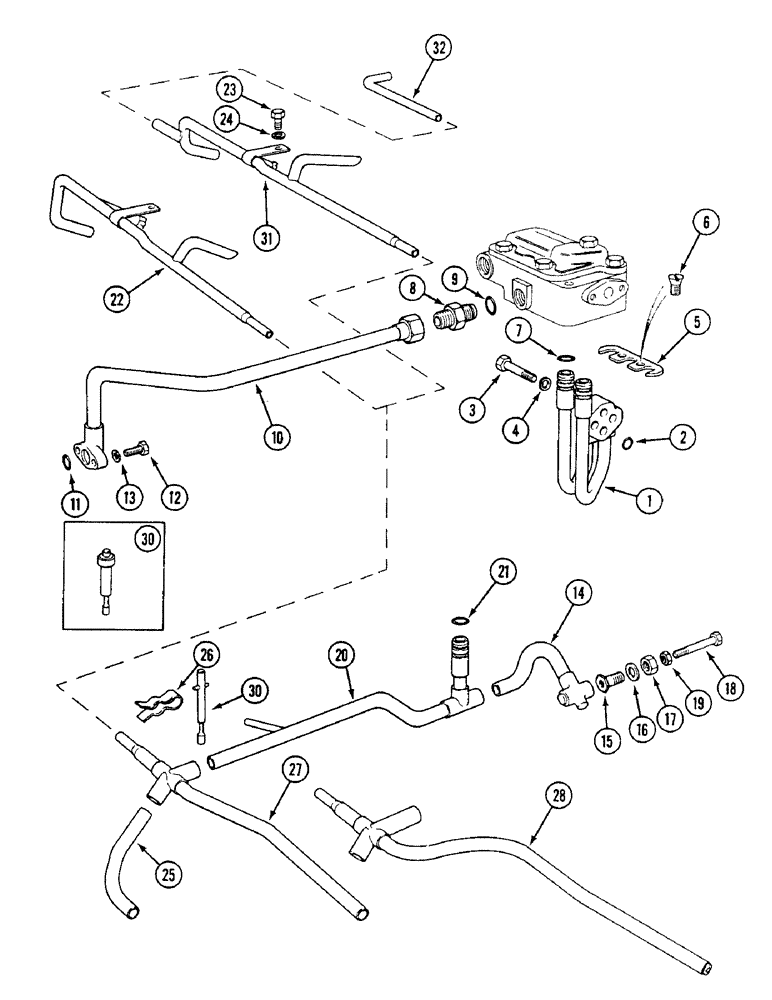

Схема запчастей Case IH 1494 - (8-298) - HYDRAULIC TUBES - REAR AXLE (08) - HYDRAULICS
28
21
14
27
2
26
9
1
24
13
12
6
32
4
5
23
3
20
15
30
30
17
19
31
8
18
25
22
16
10
11
7

Артикул

Название

Примечание

Количество

1

K952224

PIPE

TUBE control valve

1шт.

2

K625408

O-RING

7/16 inch, 11 mm, ID

2шт.

3

K600405

BOLT

3/8 UNC x 1-5/8 inch

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

K915344

WASHER

PLATE locating

1шт.

6

K604094

SCREW

1/4 x 5/8 inch

2шт.

7

K625405

O-RING,0.549" ID x 0.103" Width

9/16 inch, 14 mm, ID

2шт.

8

K626026

FITTING

UNION, 7/8 inch UNF

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

K919244

PIPE,16.375, 4.875" L

TUBE ram cylinder

1шт.

11

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

12

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

13

K19481

SPRING WASHER

WASHER lock, 5/16 inch

2шт.

14

K915339

TUBE

lubrication, Serial Range: valve-tee

1шт.

15

K912269

BUSHING

threaded, axle housing, 1/2 - 5/16 inch UNC

1шт.

16

K626577

WASHER

sealing, 1/2 inch, 13 mm

1шт.

17

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

18

K602816

SCREW

BOLT, 5/16 UNC x 2-3/8 inch

1шт.

19

K607081

LOCK NUT

NUT lock, 5/16 inch UNC

1шт.

20

K916891

PIPE

TUBE, distribution block to cross piece

1шт.

21

K625405

O-RING,0.549" ID x 0.103" Width

9/16 inch, 14 mm ID

1шт.

22

K203177

PIPE,19.437, 3.125" L

TUBE lubrication, gearbox, Synchromesh without creeper gear

1шт.

22

K942372

PIPE

TUBE lubrication, gearbox, power shift

1шт.

23

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

24

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

K913785

PIPE,0.5" OD

TUBE lubrication, ram cylinder

1шт.

26

K625009

SPRING

CLIP retaining, tube to axle housing

1шт.

27

K950514

PIPE

TUBE lubrication, reversible shaft PTO

1шт.

28

K919662

PIPE

TUBE lubrication, multispeed PTO

1шт.

31

K207843

PIPE

TUBE lubrication, gearbox, Synchromesh with creeper gear

1шт.

32

K210109

PIPE

TUBE lubrication, creeper gear

1шт.

Выбрано товаров: 31
