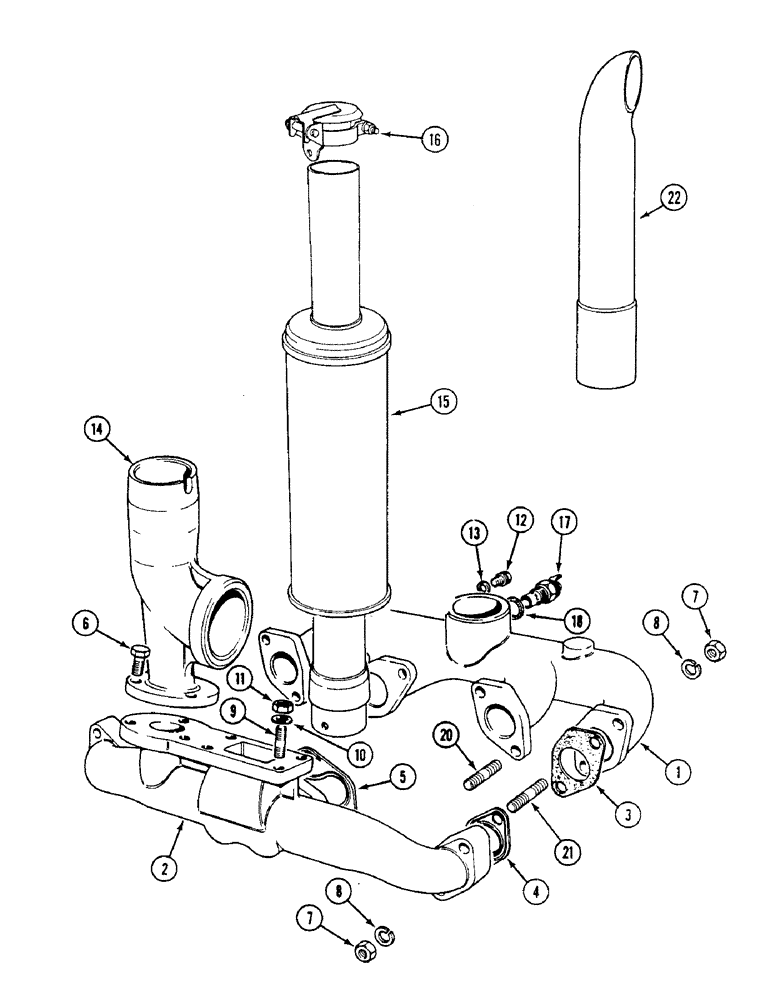

Запчасти Case IH 1494 (2-010) - MANIFOLDS AND MUFFLER (02) - ENGINE

K923244

MANIFOLD

intake

1шт.

2

K929728

MANIFOLD

exhaust

1шт.

3

K921730

MANIFOLD GASKET

intake manifold

4шт.

4

K907344

MANIFOLD GASKET

exhaust manifold

2шт.

5

K907343

GASKET

exhaust manifold

1шт.

6

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

BOLT hex, 3/8 NC x 1-1/4 inch

3шт.

7

425-106

NUT,3/8"-16, Cl 5

15шт.

8

K19472

WASHER

flat, 3/8 inch, 10 mm

15шт.

9

K608201

STUD

3/8 UNC x 1-5/8 inch

4шт.

10

K19472

WASHER

flat, 3/8 inch, 10 mm

4шт.

11

425-106

NUT,3/8"-16, Cl 5

4шт.

12

K609691

PLUG

1/8 inch BSP, Replaces: K19591

1шт.

13

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

sealing

1шт.

14

K207415

FLANGE

exhaust

1шт.

15

K306484

MUFFLER

1шт.

16

A7479

CAP

rain, Replaces: K309955

1шт.

17

K928523

GLOW PLUG

THERMOSTART fuel, Glo-Plug, CAV 11854102

1шт.

18

K626957

WASHER

sealing, 7/8 inch, 22 mm

1шт.

20

K608214

STUD

inlet and exhaust manifold, 3/8 UNC x 2 inch

3шт.

20

K608203

STUD

inlet manifold, 3/8 NC x 1-7/16 inch

3шт.

20

K608237

STUD

inlet manifold, 3/8 UNC x 1-3/4 inch

2шт.

21

K608209

STUD

exhaust manifold, 3/8 UNC x 2-1/4 inch

2шт.

21

K608242

STUD

exhaust manifold, 3/8 UNC x 2-3/4 inch

2шт.

21

K608216

STUD

exhaust manifold, 3/8 UNC x 1-3/8 inch

1шт.

21

K608237

STUD

inlet manifold, 3/8 UNC x 1-3/4 inch

2шт.

22

A169156

EXTENSION

muffler, used with ROPS

1шт.
