Запчасти Case IH 1494 (8-296) - TUBES FOR SINGLE PUMP AND FOR REAR SECTION OF TANDEM PUMP (08) - HYDRAULICS

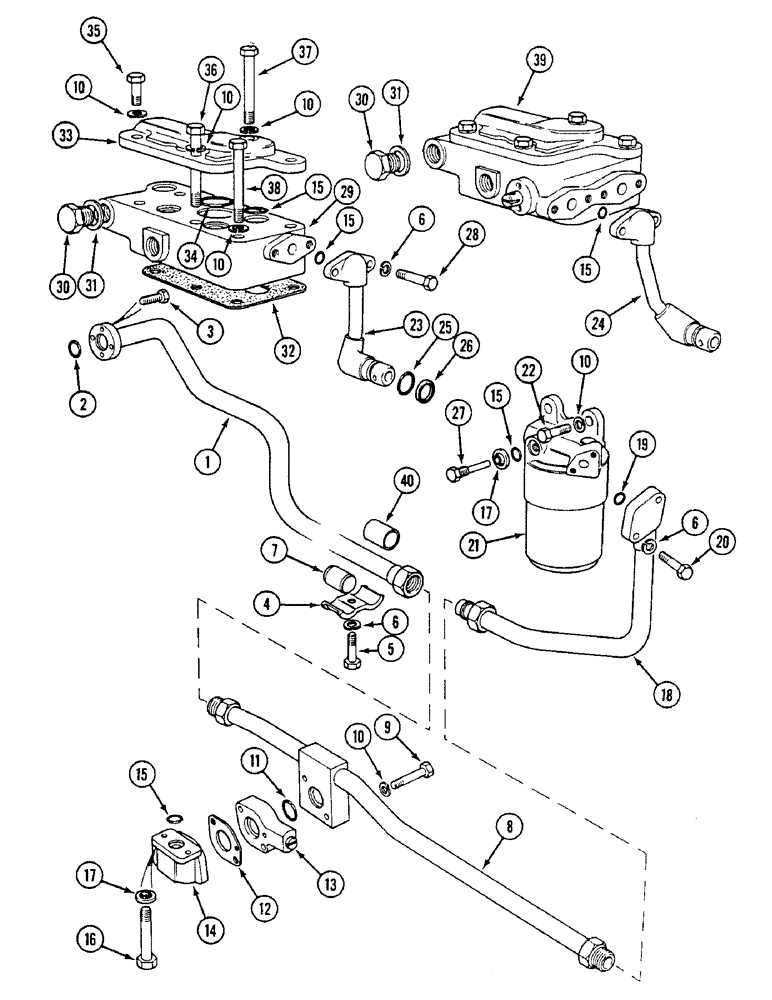

Схема запчастей Case IH 1494 - (8-296) - TUBES FOR SINGLE PUMP AND FOR REAR SECTION OF TANDEM PUMP (08) - HYDRAULICS
15
23
20
10
7
10
21
18
15
3
36
39
17
6
38
10
22
27
31
15
16
4
26
15
10
9
33
10
15
17
30
14
19
13
1
25
31
34
2
6
40
35
30
10
5
37
29
32
28
12
8
24
6
11

Артикул

Название

Примечание

Количество

1

K204421

PIPE

TUBE rear pump outlet

1шт.

2

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

3

61-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT hex socket, 1/4 NC x 1 inch

4шт.

4

K916899

BRACKET

tube clip

2шт.

5

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

6

K19481

SPRING WASHER

WASHER lock, 5/16 inch

6шт.

7

K919418

SUPPORT

BLOCK support, single pump

2шт.

8

K204419

PIPE

TUBE, relief, Serial Range: valve-unions

1шт.

9

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

10

492-11038

LOCK WASHER,3/8"

8шт.

11

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

2шт.

12

K928522

SEAL

valve and tube

1шт.

13

K928525

VALVE

ASSEMBLY bleed, See Figure 8-300

1шт.

14

K952323

VALVE

relief, pre-set, set by manufacturer

1шт.

15

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

5шт.

16

K600608

BOLT

7/16 UNC x 2-1/4 inch

2шт.

17

K626522

SEALING WASHER

sealing, 7/16 inch

3шт.

18

K203628

PIPE

TUBE, Serial Range: union-filter

1шт.

19

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

20

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

hex, 5/16 NC x 1-1/2 inch

2шт.

21

K210079

FILTER ASSEMBLY hydraulic, See Figure 8-300

1шт.

22

K602906

SCREW

BOLT, 3/8 UNC x 1-1/4 inch

2шт.

23

K202493

PIPE,0.625" OD

TUBE filter outlet, single pump, not with trailer brakes

1шт.

24

K202492

PIPE,0.625" OD

TUBE filter outlet, tandem pump, not with trailer brakes

1шт.

25

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

26

S7172

GASKET

RING backup

1шт.

27

K947791

PIN

BOLT, 7/16 inch UNC

1шт.

28

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

29

K957148

BLOCK

distribution, 5/16 inch

1шт.

30

K619528

PLUG

oil return port, 7/8 inch UNF

1шт.

31

K30085

GASKET

WASHER sealing, 7/8 inch, 22 mm

1шт.

32

K917387

GASKET

plate

1шт.

33

K919242

COVER

PLATE cover

1шт.

34

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

1-3/16 inch, 30 mm, ID

1шт.

35

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

36

K600414

BOLT

3/8 UNC x 2-3/4 inch, power shift

1шт.

37

K600416

BOLT

3/8 UNC x 3 inch

2шт.

38

K600418

BOLT

3/8 UNC x 3-1/2 inch

1шт.

39

K206877

HOUSING

VALVE ASSEMBLY combining, without cab, See Figure 8-302

1шт.

39

K206704

VALVE

ASSEMBLY combining, with cab, See Figure 8-304

1шт.

40

K200258

BUSHING

SLEEVE nylon

2шт.

K917558

SHIM

0.003 mm

1шт.

Adjusted shim.

1шт.

K917559

SHIM

0.007 mm

1шт.

Adjusted shim.

1шт.

K917560

SHIM

0.015 mm

1шт.

Adjusted shim.

1шт.

Выбрано товаров: 47
