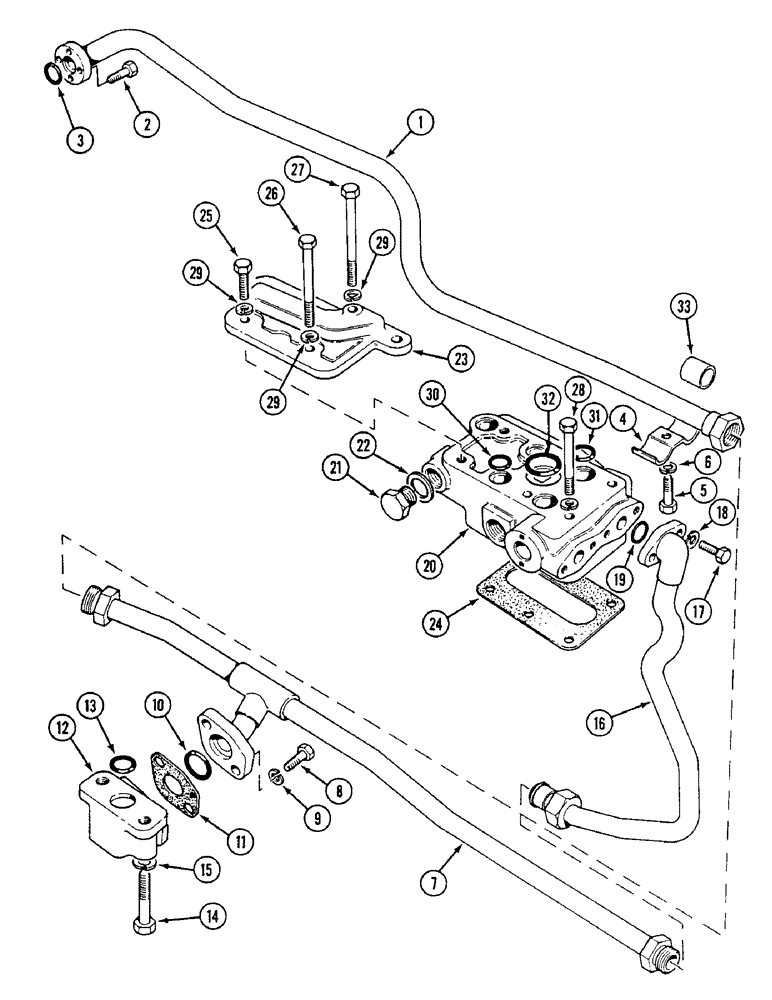

Запчасти Case IH 1494 (8-294) - TUBES FOR FRONT SECTION OF TANDEM PUMP (08) - HYDRAULICS

1

K204425

PIPE

TUBE pump outlet

1шт.

2

61-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT hex socket, 1/4 NC x 1 inch

4шт.

3

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

4

K916899

BRACKET

tube clip

2шт.

5

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

6

K19481

SPRING WASHER

WASHER lock, 5/16 inch

2шт.

7

K204423

PIPE

TUBE, relief, Serial Range: valve-union

1шт.

8

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

1шт.

11

K928522

SEAL

valve and tube

1шт.

12

K952323

VALVE

relief, pre-set, set by manufacturer

1шт.

13

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

14

K600608

BOLT

7/16 UNC x 2-1/4 inch

2шт.

15

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

16

K203627

PIPE,15.562" L

TUBE, union to combining valve

1шт.

17

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

18

K19481

SPRING WASHER

WASHER lock, 5/16 inch

2шт.

19

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

20

K206877

HOUSING

VALVE ASSEMBLY combining, without cab, See Figure 8-302

1шт.

20

K206704

VALVE

ASSEMBLY combining, with cab, See Figure 8-304

1шт.

21

K619528

PLUG

oil return port, 7/8 inch UNF

1шт.

22

K30085

GASKET

WASHER sealing, 7/8 inch, 22 mm

1шт.

23

K919242

COVER

PLATE cover

1шт.

24

K917387

GASKET

plate

1шт.

25

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

26

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

hex, 3/8 NC x 4-1/4 inch

1шт.

27

K600419

BOLT

3/8 UNC x 3-3/4 inch

2шт.

28

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

1шт.

29

492-11038

LOCK WASHER,3/8"

6шт.

30

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

3шт.

31

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

32

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

1-3/16 inch, 30 mm, ID

1шт.

33

K200258

BUSHING

SLEEVE nylon

2шт.
