Запчасти Case IH 1494 (8-292) - TANDEM HYDRAULIC PUMP - DOWTY (08) - HYDRAULICS

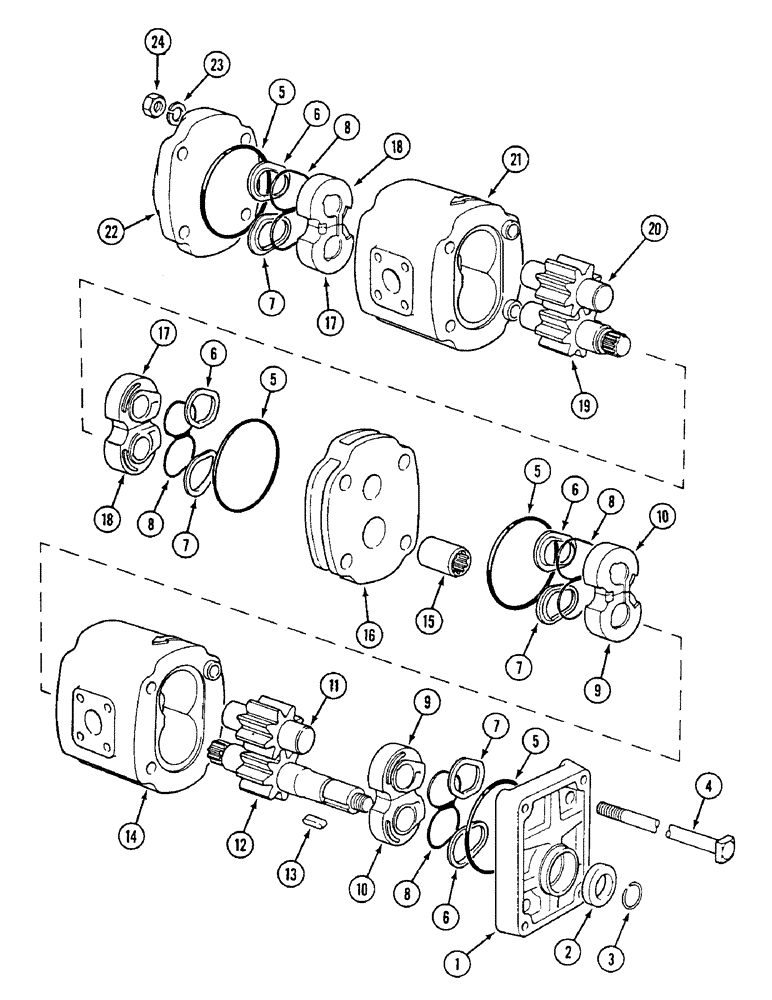

Схема запчастей Case IH 1494 - (8-292) - TANDEM HYDRAULIC PUMP - DOWTY (08) - HYDRAULICS
22
7
10
7
18
8
7
14
20
23
9
13
5
21
11
24
10
5
5
3
6
5
9
8
6
19
6
4
8
15
8
7
17
2
6
17
16
1
18
12

Артикул

Название

Примечание

Количество

1

K954263

PUMP

ASSEMBLY tandem, Dowty IP3044-IP3036, Includes: Ref. 1 - 24

1шт.

1

K962568

FLANGE

mounting

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, flange, order K260307 Seal Kit

1шт.

Part of pump seal kit P/N K260307.

1шт.

3

A48381

RING

snap, support

1шт.

4

A48287

BOLT

through, square head, 3/8 inch UNF

4шт.

5

K260307

SEAL KIT

KIT pump, Includes: Ref. 2, 6 - 8 and 13

4шт.

6

NSS

NOT SOLD SEPARAT

RING backing, order K260307 Seal Kit

4шт.

Part of pump seal kit P/N K260307.

1шт.

7

NSS

NOT SOLD SEPARAT

RING backing, order K260307 Seal Kit

4шт.

Part of pump seal kit P/N K260307.

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL lobe, pump, order K260307 Seal Kit

4шт.

Part of pump seal kit P/N K260307.

1шт.

9

NLS

NO LONGER SERVICED

front gear

2шт.

10

A48377

GEAR

BUSHING front gear

2шт.

11

A48379

GEAR

driven, front pump

1шт.

12

A49681

GEAR

DIODE rectifier

1шт.

13

NSS

NOT SOLD SEPARAT

KEY drive gear, order K260307 Seal Kit

1шт.

Part of pump seal kit P/N K260307.

1шт.

14

NSS

NOT SOLD SEPARAT

BODY pump, front

1шт.

15

A48380

COUPLING, BREAK AWAY

COUPLING pump, splined

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE center, pump

1шт.

17

A49682

BUSHING

rear gear

2шт.

18

A48384

BUSHING

rear gear

2шт.

19

A49683

GEAR

drive, rear pump

1шт.

20

A48386

GEAR

driven, rear pump

1шт.

21

NSS

NOT SOLD SEPARAT

BODY pump, rear

1шт.

22

K962569

COVER

end, pump

1шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

25-176

NUT,3/8"-24, G5, Hvy

hex, 3/8 inch UNF

4шт.

Выбрано товаров: 30
