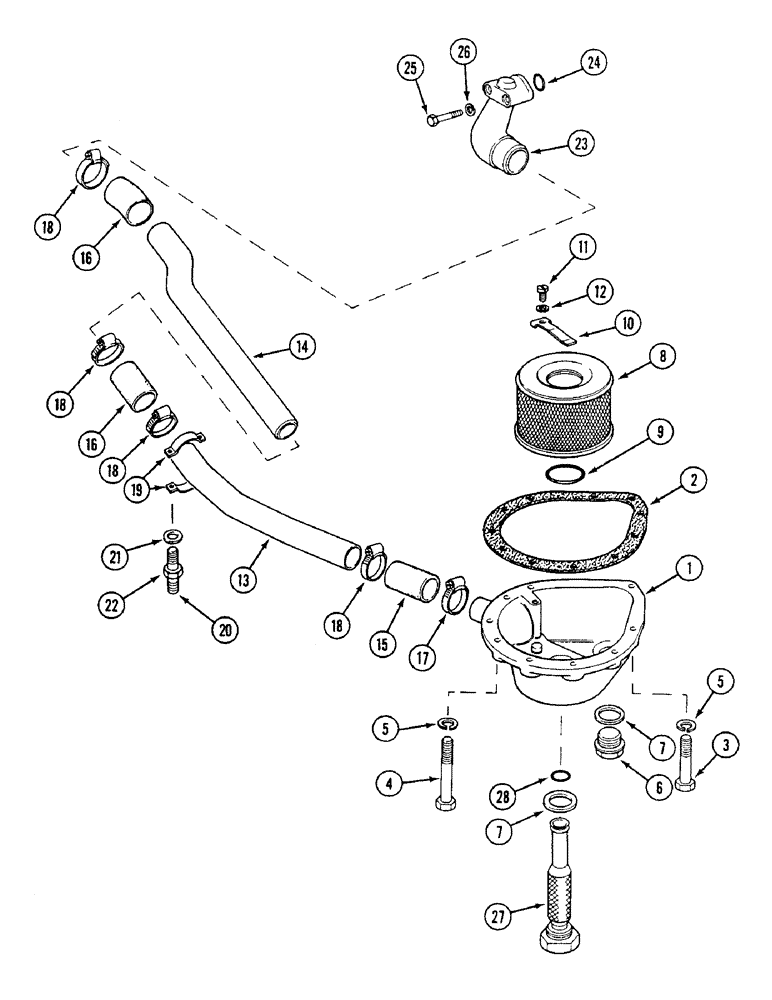

Запчасти Case IH 1494 (8-284) - INLET FILTER AND TUBES (08) - HYDRAULICS

1

K205042

HOUSING

inlet filter

1шт.

2

K940407

GASKET

housing

1шт.

3

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

10шт.

4

K600217

BOLT

5/16 UNC x 3 inch

1шт.

5

K19481

SPRING WASHER

WASHER lock, 5/16 inch

11шт.

6

K623830

PLUG

1 inch BSP, Synchromesh

1шт.

7

K17457

WASHER

sealing, 1-1/4 inch, 34 mm, ID

1шт.

8

K946089

STRAINER ELEMENT

FILTER inlet

1шт.

9

238-5220

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

10

K953845

RETAINER

PLATE retainer

1шт.

11

K614021

SET SCREW,#10 - 32 x 1/2"

No. 10 UNF x 1/2 inch

1шт.

12

K19488

SPRING WASHER

lock, 3/16 inch

1шт.

13

K204088

HOSE,1.75" OD x 11.312, 3.562" L

TUBE inlet, rear

1шт.

14

K204087

PIPE

TUBE inlet, front

1шт.

15

K924378

HOSE

elbow, 1-3/4 x 2-3/8 inch, 44 x 60 mm

1шт.

16

K917126

HOSE

, Serial Range: housing-tube

2шт.

17

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP hose, 2-1/4 inch, 57 mm, dia., Replaces: K622031

1шт.

18

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP adj., 1-9/16 - 2-1/2 inch dia.

5шт.

19

K916897

SHIM

BRACKET tube

2шт.

20

K608160

STUD

5/16 UNC x 1-3/8 inch

4шт.

21

K19481

SPRING WASHER

WASHER lock, 5/16 inch

4шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

23

K950129

FITTING

ELBOW pump inlet, Sundstrand pump

1шт.

23

K205713

FITTING

ELBOW pump inlet, Dowty pump

1шт.

24

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

25

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

hex, 5/16 NC x 2-1/4 inch

2шт.

26

K19481

SPRING WASHER

WASHER lock, 5/16 inch

2шт.

27

K205927

FILTER

oil, power shift pump

1шт.

28

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.
