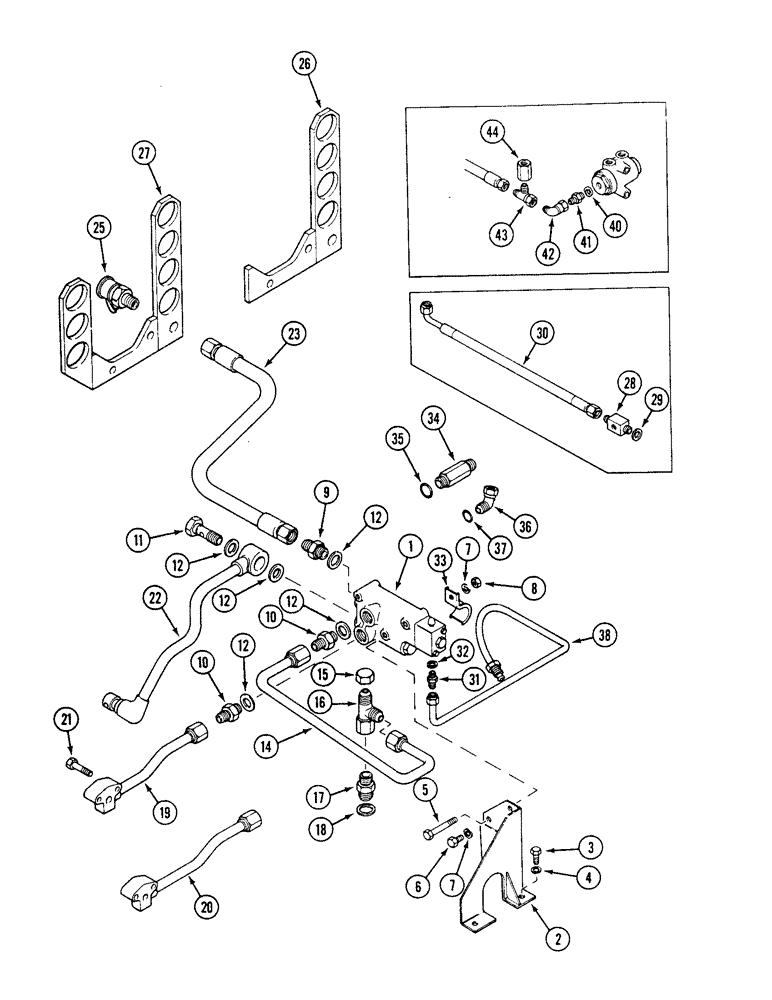

Запчасти Case IH 1494 (7-282) - TRAILER BRAKES - FACTORY INSTALLATION (07) - BRAKES

1

K205200

VALVE

ASSEMBLY brake, Bosch 0538-008-315

1шт.

2

K310128

BRACKET

valve support

1шт.

3

K602902

SCREW

BOLT, 3/8 UNC x 3/4 inch

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

K650350

BOLT

M8 x 60 mm

1шт.

6

513-604

BOLT

SCREW, M8 x 16 mm

1шт.

7

592-6

WASHER

lock, 8 mm

2шт.

8

K651507

NUT

M8

1шт.

9

K626105

FITTING

UNION, M18 x 3/4 inch UNF

1шт.

10

K626106

FITTING

UNION, M18 x 7/8 inch UNF

2шт.

11

K310150

BOLT

M18, special

1шт.

12

K623530

SEAL

WASHER sealing, 3/4 inch, 19 mm

4шт.

13

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

14

K310133

PIPE

TUBE, Serial Range: valve-axle

1шт.

15

K626108

CAP

7/8 inch UNF

1шт.

16

K622181

FITTING

TEE FITTING, 7/8 inch UNF

1шт.

17

K626107

FITTING

UNION, 7/8 inch UNF

1шт.

18

K30085

GASKET

WASHER sealing, 7/8 inch, 22 mm

1шт.

19

K310135

PIPE

TUBE, valve to distribution block, single pump

1шт.

20

K310136

PIPE

TUBE valve to combining valve, tandem pump

1шт.

21

K600205

BOLT

5/16 UNC x 1-1/2 inch

2шт.

22

K310151

PIPE

TUBE, Serial Range: filter-valve

1шт.

23

K310134

HOSE

TUBE flexible, 350 mm

1шт.

25

K205210

COUPLING, BREAK AWAY

COUPLING quick release, trailer brakes

1шт.

26

K210350

BRACKET

coupling support, single valve

1шт.

27

K210349

BRACKET

coupling support, two or more valves

1шт.

28

K311032

CONNECTOR, ELEC

CONNECTOR flexible tube, prior to P.I.N. 11519236

1шт.

29

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

sealing, prior to P.I.N. 11519236

1шт.

30

K311033

HOSE

TUBE flexible, 7/16 inch UNF x 500 mm, prior to P.I.N. 11519236

1шт.

31

K626110

FITTING

UNION, M10 x 7/16 inch UNF

1шт.

32

K626521

SEALING WASHER

WASHER sealing, 3/8 inch, 10 mm

1шт.

33

K311027

CLIP

CLAMP hose

1шт.

34

K626109

FITTING

UNION, 3/4 inch UNF, fits remote valve

1шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

36

K622129

FITTING

ELBOW, 3/4 inch UNF

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

K311618

PIPE

TUBE, slave cylinder to brake valve, P.I.N. 11519236 and after

1шт.

40

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

sealing

1шт.

41

K626110

FITTING

UNION, M10 x 7/16 inch UNF, prior to P.I.N. 11519691

1шт.

42

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

swivel, 90 degree, prior to P.I.N. 11519691

1шт.

43

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

FITTING swivel, prior to P.I.N. 11519691

1шт.

44

K311535

FITTING

CONNECTOR, to flexible tube and switch, prior to P.I.N. 11519691

1шт.
