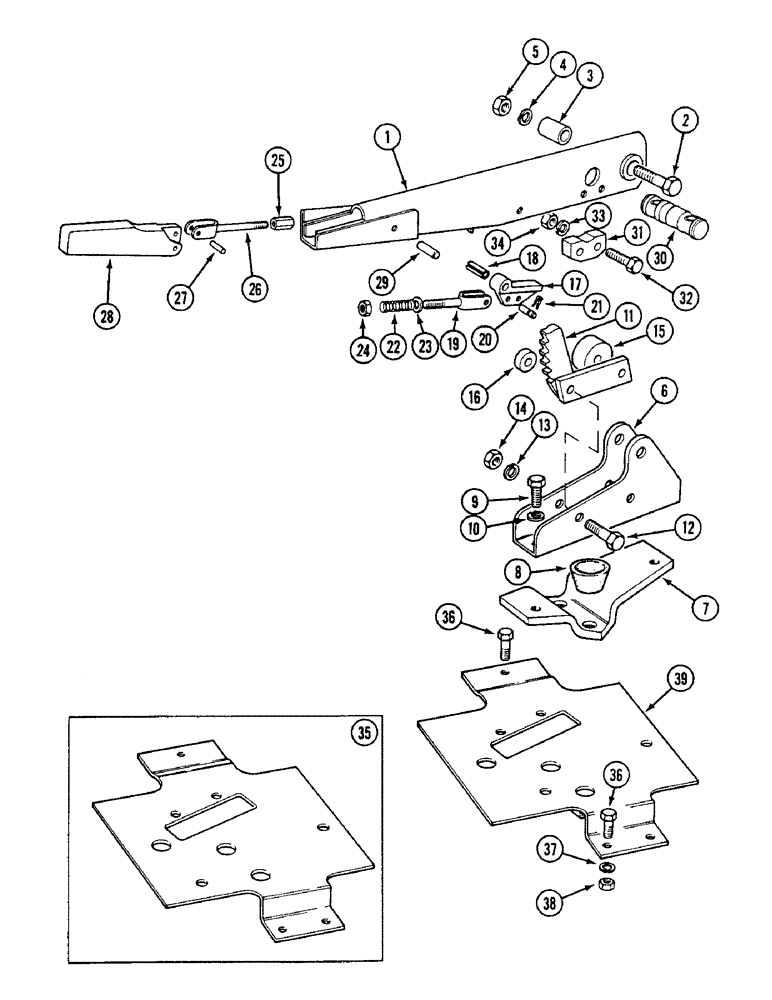

Запчасти Case IH 1494 (7-280) - HAND BRAKE LEVER (07) - BRAKES

1

K955643

LEVER

hand

1шт.

2

K600526

BOLT

3/8 UNC x 1-7/8 inch, hand, Serial Range: lever-bracket

1шт.

3

K627052

BUSHING

SPACER lever pivot, hand, Serial Range: lever-bracket

1шт.

4

492-11038

LOCK WASHER,3/8"

hand lever to bracket 3/8"

1шт.

5

425-106

NUT,3/8"-16, Cl 5

1шт.

6

K955244

BRACKET

hand lever support

1шт.

7

K949506

SHIM

PLATE retaining, with cab

1шт.

8

K949507

SEAL

rubber, with cab

2шт.

9

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

BOLT, 5/16 UNC x 3/4 inch, with cab

2шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm, without cab

2шт.

10

K19481

SPRING WASHER

WASHER lock, 5/16 inch, with cab

2шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , without Cab M8

2шт.

11

K307481

RATCHET

1шт.

12

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch, Ratchet to support bracket

2шт.

13

K19481

SPRING WASHER

WASHER lock, 5/16 inch, ratchet to support bracket

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Ratchet to support bracket

2шт.

15

K627109

BUSHING

SPACER, 1-3/8 inch, 35 mm, ratchet to support bracket

1шт.

16

K627110

BUSHING

SPACER, 3/4 inch, 19 mm, ratchet to support bracket

1шт.

17

K307484

PAWL

1шт.

18

K623924

SPRING

PIN spring, 1/4 x 7/8 inch

1шт.

19

K950033

ROD

pull

1шт.

20

K949499

PIN

grooved, 3/16 x 1/2 inch

1шт.

21

K621572

RING, SNAP

CLIP spring

1шт.

22

K625099

SPRING

return

1шт.

23

K626310

WASHER

lock, 3/16 inch, 3/16 inch, 5 mm

1шт.

24

225-14210

NUT,#10-32

2шт.

25

K617297

NUT

SLEEVE adjusting, No., 10 UNF

1шт.

26

K950033

ROD

pull

1шт.

27

K949498

PIN

plain

1шт.

28

K950026

LEVER

release

1шт.

29

138-2067

PIN,3/16" x 1", Coiled

1шт.

30

K949501

BAR

balance

1шт.

31

K949502

SUPPORT

BLOCK support

1шт.

32

K966404

SCREW

BOLT, 1/4 x 1-1/8 inch, block to hand lever

2шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Block to hand lever 1/4"

2шт.

34

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC, block to hand lever

2шт.

35

K306450

SUPPORT

hand brake, without cab, prior to P.I.N. 11276966

1шт.

36

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm, without cab

1шт.

36

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm, without cab

2шт.

37

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , without Cab M8

2шт.

38

825-1408

NUT,M8, Cl 8

Without cab M8, Cl 8

2шт.

39

K308648

SUPPORT

hand brake, without cab, P.I.N. 11276966 and after

1шт.
