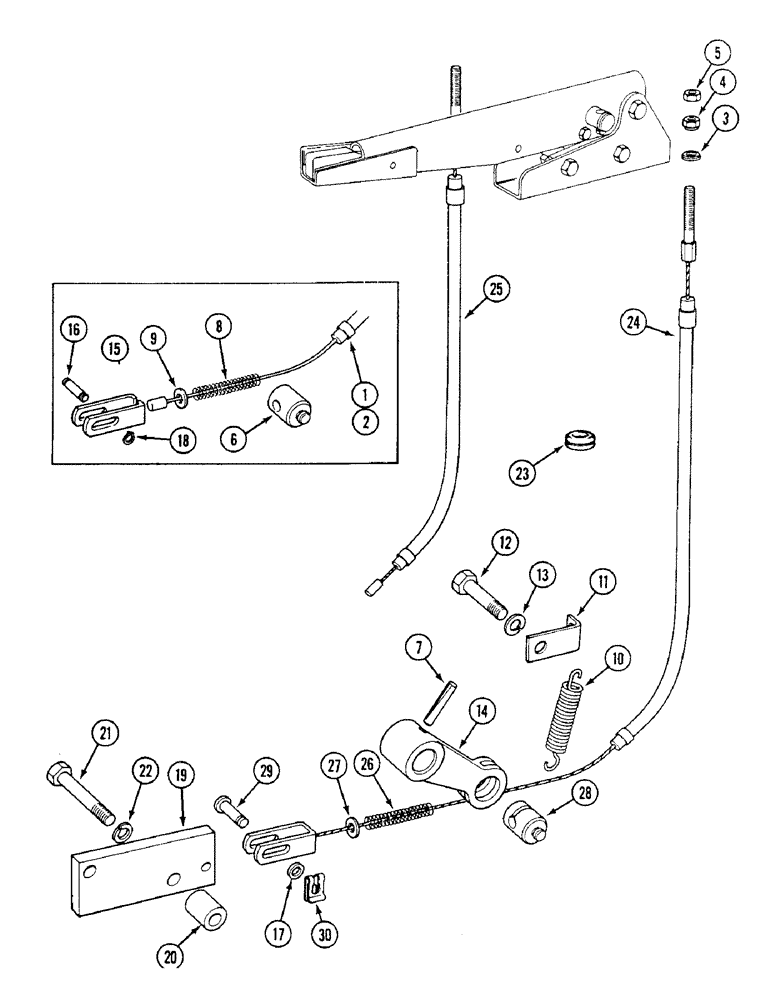

Запчасти Case IH 1494 (7-278) - LINKAGE FOR HAND BRAKE (07) - BRAKES

1

K949505

BRAKE

CABLE, inner and outer, left hand, without cab, order K311168

1шт.

1

K205723

CABLE

inner and outer, left hand, high clearance, with cab

1шт.

1

K953948

CABLE

inner and outer, left hand, with cab, order K311170

1шт.

2

K205724

CABLE

inner and outer, right hand, high clearance, with cab

1шт.

2

K953949

CABLE

inner and outer, right hand, high clearance, without cab

1шт.

2

K949504

BRAKE

CABLE, inner and outer, right hand, without cab, order K311167

1шт.

2

K950221

BRAKE

CABLE, inner and outer, right hand, with cab, order K311169

1шт.

3

K949503

WASHER

spherical, 5/16 inch

2шт.

4

K617285

SPECIAL NUT

5/16 inch UNF

2шт.

5

K622807

NUT

lock, 5/16 inch UNF

2шт.

6

K950216

PIN

brake lever, 1 x 7/8 inch

2шт.

7

135-101

GROOVED PIN,3/8" x 1 3/4", Type A

PIN, GROOVED, 3/8" x 1 3/4", Type A

2шт.

8

K625259

SPRING

cable return

2шт.

9

K626911

WASHER

11/32 inch, 9 mm

2шт.

10

K624927

SPRING

return

2шт.

11

K954736

SPRING

BRACKET return spring

2шт.

12

K608828

BOLT

1/2 UNC x 2-1/2 inch

2шт.

13

K626345

LOCK WASHER

WASHER lock, 1/2 inch

2шт.

14

K950211

LEVER

operating

2шт.

15

K949523

FORK

END brake cable

2шт.

16

K949552

PIN

grooved, 5/16 x 1-1/4 inch

2шт.

17

K626682

WASHER

lever pin, 5/16 inch, 8 mm

4шт.

18

K621482

RING, SNAP

RING retaining, 5/16 inch, 8 mm, external

2шт.

19

K954758

PLATE

BRACKET cables

2шт.

20

K627108

BUSHING

SPACER bracket, 1-3/16 inch, 30 mm

4шт.

21

K608836

BOLT

1/2 UNC x 4 inch

4шт.

22

K19484

LOCK WASHER

WASHER lock, 1/2 inch

4шт.

23

K653162

BOX

GROMMET cables, without cab

2шт.

24

K311168

CABLE

inner and outer, left hand , without cab, Replaces: K949505

1шт.

25

K311167

CABLE

inner and outer, right hand, without cab, Replaces: K949504

1шт.

24

K311170

CABLE

ASSEMBLY, left hand, with cab, Replaces: K953948, Includes: Ref. 26 & 27

1шт.

25

K311169

CABLE

ASSEMBLY, right hand, with cab, Replaces: K950221, Includes: Ref. 26 & 27

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING cable

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER cable

1шт.

28

K210359

PIN

brake lever

2шт.

29

K625930

PIN

clevis

2шт.

30

K625040

CLIP

spring

2шт.
