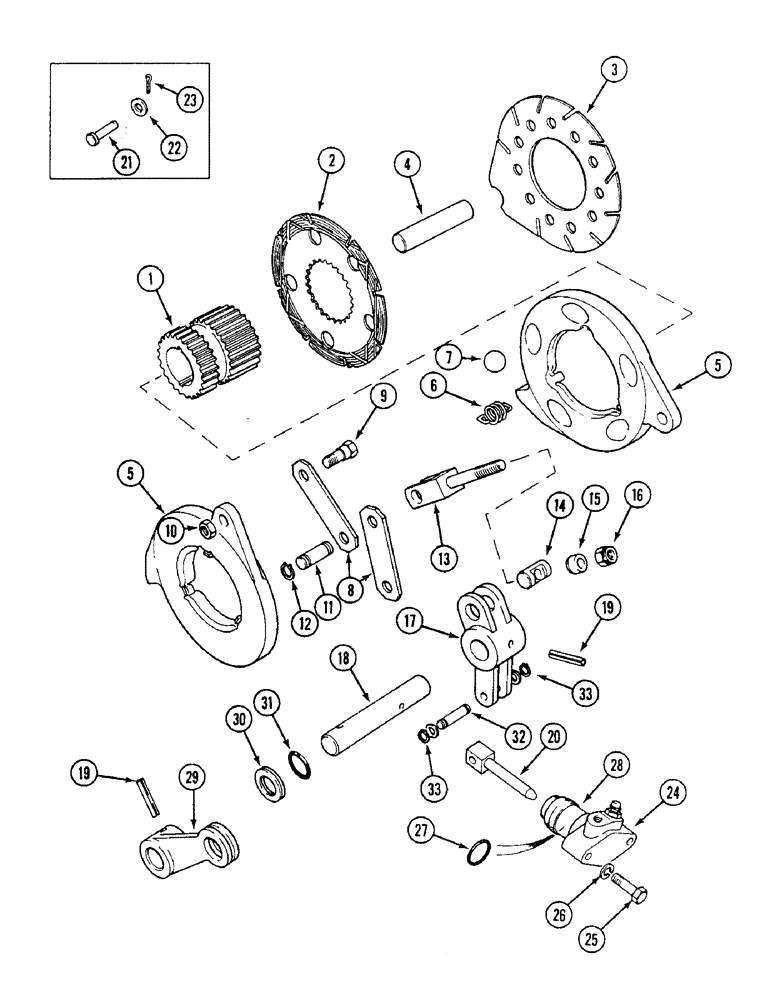

Запчасти Case IH 1494 (7-276) - DISC BRAKE MECHANISM (07) - BRAKES

1

K947582

HUB

brake discs

2шт.

2

K202905

DISC

rotating, 7 inch, 178 mm, diameter, Girling 73320118

12шт.

3

K200550

BRAKE DISC

DISC stationary, 7 inch, 178 mm, diameter, Girling 64322031

8шт.

4

K940860

SHAFT

PIN stationary discs

2шт.

5

K954738

LEVER

ACTUATING ASSEMBLY, Girling 64322316, Includes: Ref. 6 - 10

2шт.

6

K965862

SPRING

Girling 64325327

6шт.

7

K963645

BALL

steel, Girling 64150456

10шт.

8

K965865

LEVER

actuating, Girling 64326580

4шт.

10

K965864

NUT

special, Girling 6410050

4шт.

11

K625933

PIN

pivot

2шт.

12

K625042

CLIP

RING snap, spindle, 1/2 inch, 13 mm, External

2шт.

13

K947591

STUD

ROD AND FORK

2шт.

14

K947596

PIN

2шт.

15

K627016

BUSHING

SPACER

2шт.

16

K617374

NUT

3/8 inch UNF

2шт.

17

K210161

LEVER

Replaces: K201681

2шт.

18

K201818

SHAFT

pivot

2шт.

19

135-101

GROOVED PIN,3/8" x 1 3/4", Type A

PIN, GROOVED, 3/8" x 1 3/4", Type A

4шт.

20

K203380

ROD

push

2шт.

21

K210326

PIN

groove, order also K621482 Circlip

2шт.

22

K626682

WASHER

lever pin, 5/16 inch, 8 mm

4шт.

23

K11933

PIN

cotter, 1/8 x 5/8 inch

2шт.

24

K200219

CYLINDER

SLAVE CYLINDER, See Figures 7-262 and 7-270

2шт.

25

K600205

BOLT

5/16 UNC x 1-1/2 inch

4шт.

26

K19481

SPRING WASHER

WASHER lock, 5/16 inch

4шт.

27

K628876

O-RING,1.443" ID x 0.073" Width

cylinder to reduction housing

2шт.

28

K965764

SEAL

COVER rubber

2шт.

29

K950211

LEVER

operating

2шт.

30

K85417

SEAL

dirt

2шт.

31

K623762

O-RING,0.99" ID x 0.147" Width

O-RING sealing, 1 inch, 25 mm, ID

2шт.

32

K210326

PIN

clevis, 5/16 x 1-5/8 inch

2шт.

33

K621482

RING, SNAP

RING retaining, 5/16 inch, 8 mm external

4шт.
