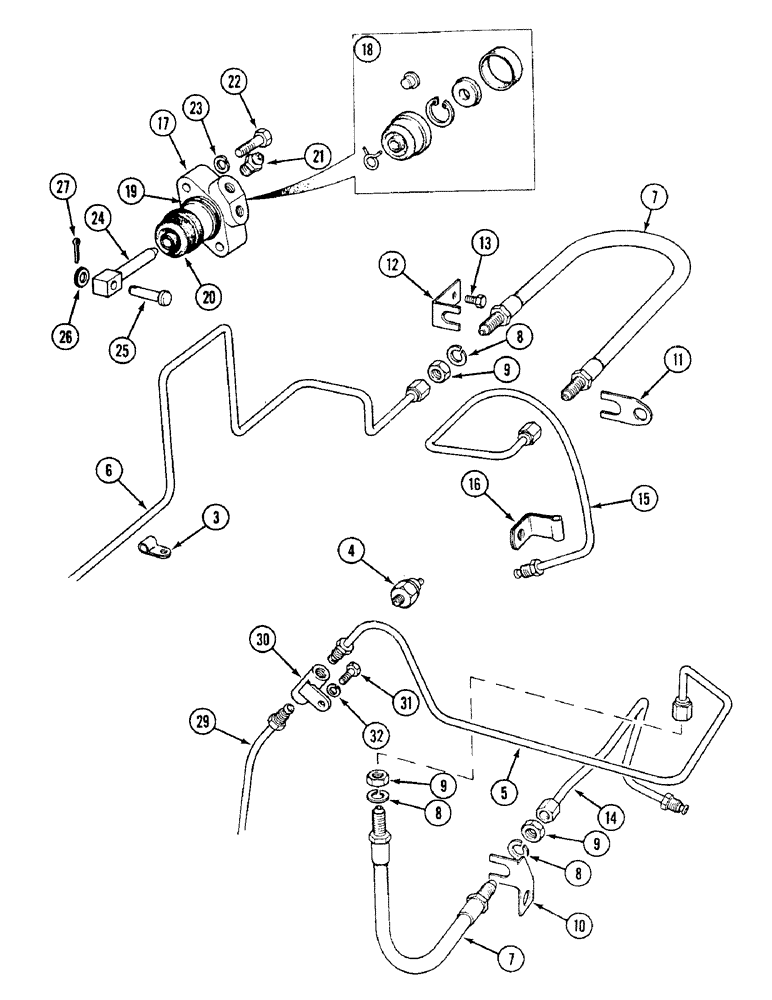

Запчасти Case IH 1494 (7-274) - BRAKE TUBES AND SLAVE CYLINDERS, TRACTORS WITH CAB, P.I.N. 11519691 AND AFTER (07) - BRAKES

3

K625000

CLIP

tube

1шт.

4

K951976

LIGHT SWITCH

SWITCH stop lamps

1шт.

5

K310507

PIPE

TUBE, three way to flexible hose, left hand

1шт.

6

K310506

PIPE

TUBE, union to flexible, right hand

1шт.

7

K957164

HOSE,11.023" L

TUBE ASSEMBLY flexible, M12 x 280 mm

2шт.

8

K626686

WASHER

flat, 1/2 inch, 13 mm

4шт.

9

K652100

LOCK NUT

lock, M12

4шт.

10

K301428

CLIP,ELECTRICAL

CLIP, left hand flexible

1шт.

11

K302118

BRAKE

CLIP, right hand flexible

1шт.

12

K302911

BRACKET

CLIP, right hand flexible

1шт.

13

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 12 mm

2шт.

14

K301277

PIPE

TUBE, slave cylinder, left hand, standard clearance

1шт.

14

K304295

PIPE

TUBE, slave cylinder, left hand, high clearance

1шт.

15

K302096

PIPE

TUBE, slave cylinder, right hand, standard clearance

1шт.

15

K304296

PIPE

TUBE, slave cylinder, right hand, high clearance

1шт.

16

K628376

CLIP

CLAMP tube

2шт.

17

K200219

CYLINDER

SLAVE CYLINDER, Includes: Ref. 18 - 21

2шт.

18

K965765

KIT

seals, mineral oil, Girling MIN 18

2шт.

19

K628876

O-RING,1.443" ID x 0.073" Width

cylinder to reduction housing

1шт.

20

K965764

SEAL

COVER rubber, Girling 73670122

1шт.

21

K964534

SCREW,M12 x 1

air removal

1шт.

22

K600365

BOLT

5/16 UNC x 1-1/2 inch

4шт.

23

K19481

SPRING WASHER

WASHER lock, 5/16 inch

4шт.

24

K203380

ROD

push

2шт.

25

K210326

PIN

clevis, 5/16 x 1-5/8 inch, 5/16 inch

2шт.

26

K626682

WASHER

lever pin, 5/16 inch, 8 mm

4шт.

27

K621482

RING, SNAP

RING retaining, 5/16 inch, 8 mm, external

2шт.

29

K310505

PIPE

TUBE, union to three way fitting, left hand

1шт.

30

K310498

FITTING

three way

1шт.

31

K650527

BOLT

M6 x 16 mm

1шт.

32

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.
