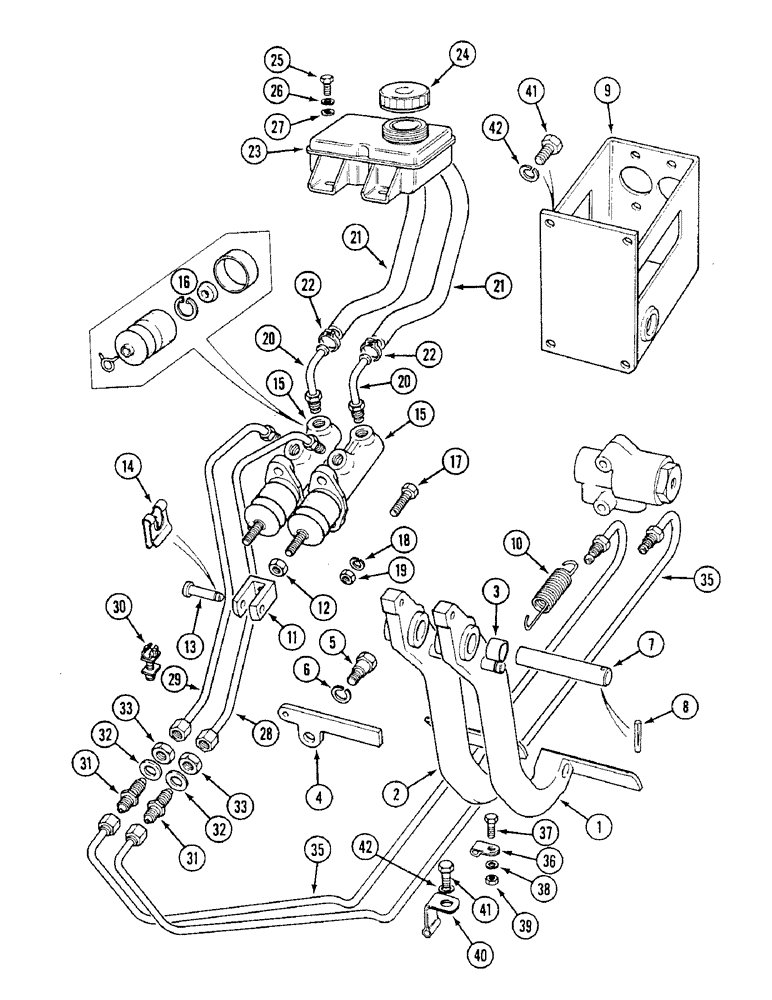

Запчасти Case IH 1494 (7-268) - BRAKE PEDALS AND MASTER CYLINDERS, TRACTORS WITH CAB, PRIOR TO P.I.N. 11519691 (07) - BRAKES

1

K307849

PEDAL

brake, left hand, Includes: Ref. 3

1шт.

2

K307850

PEDAL

brake, right hand, Includes: Ref. 3

1шт.

3

K655525

BUSHING

pedal

2шт.

4

K948974

LATCH

PLATE locating, pedals

1шт.

5

K600500

SCREW

BOLT, special

1шт.

6

K626700

WASHER

lock

1шт.

7

K303546

SHAFT

PIN pivot

1шт.

8

K690706

PIN

roll, 6 x 30 mm

1шт.

9

K303164

MOUNTING PARTS

BRACKET pedal

1шт.

10

K303540

SPRING

return

2шт.

11

K622212

FORK

END rod, 5/16 inch UNF

2шт.

12

425-115

NUT,5/16"-24, G5

lock, 5/16 inch UNF

2шт.

13

K625930

PIN

clevis

2шт.

14

K625040

CLIP

spring

2шт.

15

K950544

CYLINDER,36.32mm Stroke

ASSEMBLY, Girling 73067017, Includes: Ref. 16

2шт.

16

K964572

SEAL KIT

SEAL KIT master cylinder

1шт.

17

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

hex, 5/16 NC x 1-1/8 inch

4шт.

18

K19481

SPRING WASHER

WASHER lock, 5/16 inch

4шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

20

K302099

PIPE

TUBE master cylinder inlet

2шт.

21

K203032

HOSE

reservoir to master cylinder

2шт.

22

K656903

CLIP

CLAMP, return, Serial Range: tube-tank

2шт.

23

K301441

RESERVOIR

brake

1шт.

24

K301443

CAP

filler

1шт.

25

K652474

BOLT

M6 x 12 mm

2шт.

26

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

28

K301270

PIPE

TUBE, master cylinder to union, left hand

1шт.

29

K301269

PIPE

TUBE, master cylinder to union, right hand

1шт.

30

K625008

CLIP

tube

2шт.

31

K301280

FITTING

UNION connecting

2шт.

32

K626686

WASHER

flat, 1/2 inch, 13 mm

2шт.

33

K652100

LOCK NUT

lock, M12

2шт.

35

K306554

PIPE

TUBE, union to balance valve

2шт.

36

K621690

CLIP

brake tube

2шт.

37

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch

2шт.

38

K626341

SPRING WASHER

WASHER lock, 1/4 inch

2шт.

39

K607000

NUT

1/4 inch UNC

2шт.

40

K625000

CLIP

tube

2шт.

41

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

4шт.

42

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.
