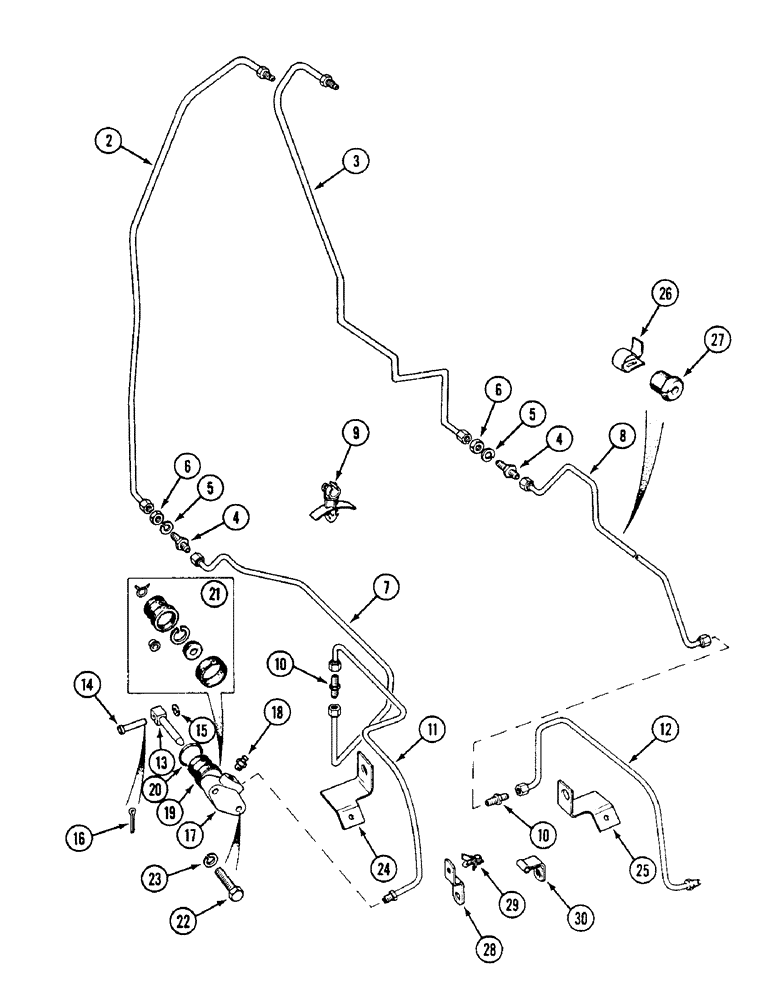

Запчасти Case IH 1494 (7-266) - BRAKE TUBES AND SLAVE CYLINDERS, TRACTORS WITHOUT CAB, P.I.N. 11519691 AND AFTER (07) - BRAKES

2

K310512

PIPE,6 mm DIA.

TUBE, master cylinder to union, left hand

1шт.

3

K310510

PIPE

TUBE, master cylinder to union, right hand

1шт.

4

K301280

FITTING

UNION connecting

2шт.

5

K651850

SPRING

WASHER lock, 12 mm

2шт.

6

K652100

LOCK NUT

lock, M12

2шт.

7

K301250

BRAKE

TUBE, connector to union, left hand

1шт.

8

K301253

BRAKE

TUBE, connector to union, right hand

1шт.

9

K625023

CLIP

tube

3шт.

10

K626084

FITTING

UNION, M12

2шт.

11

K304998

BRAKE

TUBE, union to slave cylinder, left hand

1шт.

11

K304305

BRAKE,6 mm DIA.

TUBE, union to left hand cylinder, high clearance

1шт.

12

K304999

BRAKE,6 mm DIA.

TUBE, union to slave cylinder, right hand

1шт.

12

K304306

BRAKE

TUBE, union to right hand cylinder, high clearance

1шт.

13

K203380

ROD

push

2шт.

14

K210362

PIN clevis, 5/16 x 1-5/8 inch

2шт.

15

K626682

WASHER

lever pin, 5/16 inch, 8 mm

4шт.

16

K621482

RING, SNAP

RING retaining, 5/16 inch, 8 mm, external

2шт.

17

K200219

CYLINDER

SLAVE CYLINDER, Includes: Ref. 18 - 21

2шт.

18

K964534

SCREW,M12 x 1

air removal

1шт.

19

K965764

SEAL

COVER rubber

1шт.

20

K628876

O-RING,1.443" ID x 0.073" Width

cylinder to reduction housing

1шт.

21

K965765

KIT

seals, mineral oil, Girling MIN 18

1шт.

22

K600365

BOLT

5/16 UNC x 1-1/2 inch

4шт.

23

K19481

SPRING WASHER

WASHER lock, 5/16 inch

4шт.

24

K302704

BRACKET

tube to final drive, left hand

1шт.

25

K302687

BRACKET

tube to final drive, right hand

1шт.

26

K621735

CLIP

CLAMP spring, tube to fuel tank straps

4шт.

27

K627716

GROMMET

13/16 inch, 21 mm, special

4шт.

28

K304345

BRACKET

support, high clearance

2шт.

29

K625023

CLIP

tube, high clearance

2шт.

30

K628376

CLIP

CLAMP tube, high clearance

2шт.
