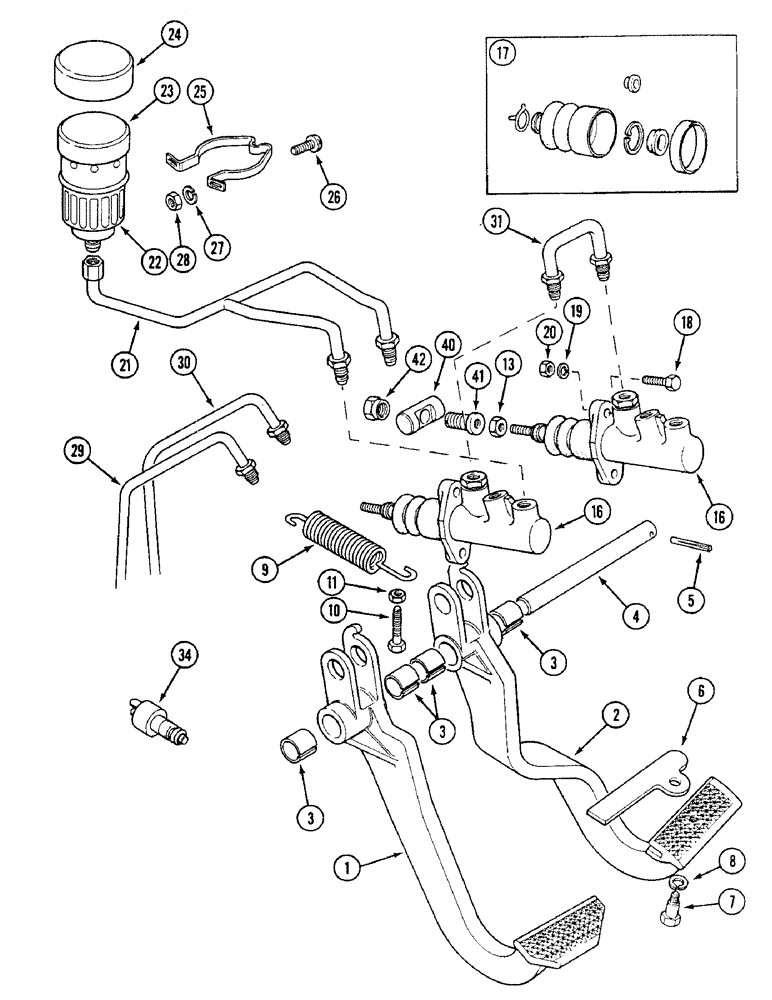

Запчасти Case IH 1494 (7-264) - BRAKE PEDALS AND MASTER CYLINDERS, TRACTORS WITHOUT CAB, P.I.N. 11519691 AND AFTER (07) - BRAKES

1

K262204

BRAKE

PEDAL brake, left hand, Includes: Ref. 3

1шт.

2

K262203

BRAKE

PEDAL brake, right hand, Includes: Ref. 3

1шт.

3

K628764

BUSHING

pivot

4шт.

4

K202055

PIN

pivot

1шт.

5

K19552

GROOVED PIN,1/8" x 1 1/8", Type A

Pin, Grooved, 1/8" x 1 1/8", Type A

1шт.

6

K948974

LATCH

PLATE locating, pedals

1шт.

7

K600500

SCREW

BOLT, special

1шт.

8

K626700

WASHER

lock

1шт.

9

K624971

SPRING

return

2шт.

10

K650645

BOLT

M8 x 35 mm

1шт.

11

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

13

425-115

NUT,5/16"-24, G5

lock, 5/16 inch UNF

2шт.

16

K307032

CYLINDER,36mm Stroke

MASTER CYLINDER, Girling 73067120, Includes: Ref. 17

2шт.

17

K262205

SEAL KIT

KIT, seals, mineral oil

2шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm

2шт.

18

K655645

BOLT

SCREW, M8 x 16 mm

2шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

20

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

21

K302630

PIPE

TUBE, reservoir to master cylinders

1шт.

22

K951526

RESERVOIR

brake, Includes: Ref. 23 & 24

1шт.

23

K964488

CAP

filler, reservoir

1шт.

24

K964813

COVER

green

1шт.

25

K200671

SPRING

CLAMP reservoir

1шт.

26

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

machine, pan Phillips, No. 10 NF x 1/2 inch

1шт.

27

K626340

RING

WASHER lock, 10

1шт.

28

225-14210

NUT,#10-32

1шт.

29

K310512

PIPE,6 mm DIA.

TUBE, master cylinder to union, left hand

1шт.

30

K310510

PIPE

TUBE, master cylinder to union, right hand

1шт.

31

K310508

BRAKE

TUBE, cylinder compensating ports

1шт.

34

K929737

SWITCH ASSY

SWITCH stop lamps, Lucas 30874A

1шт.

40

K304513

PIN

pivot

2шт.

41

K304512

NUT

SCREW adjusting, special

2шт.

42

K651561

NUT

adjusting, special

2шт.
