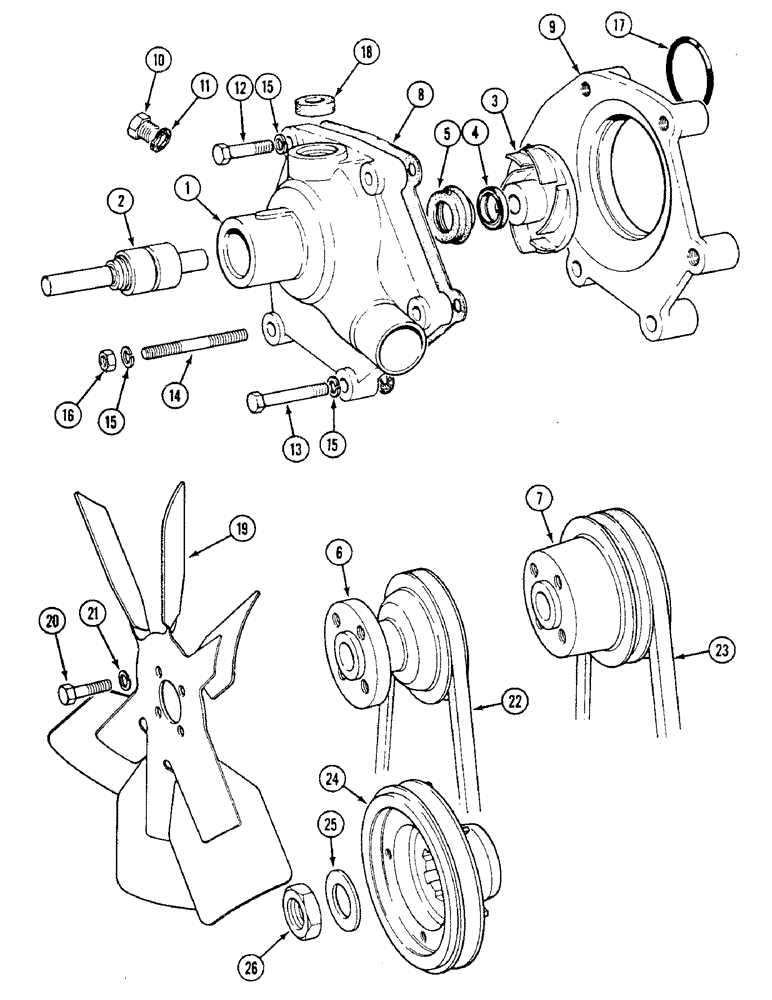

Запчасти Case IH 1494 (2-006) - WATER PUMP AND FAN (02) - ENGINE

K207578

PUMP, WATER

WATER PUMP ASSEMBLY without air conditioning, Includes: Ref. 1 - 7

1шт.

K207320

WATER PUMP

ASSEMBLY with air conditioning, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY pump, order pump

1шт.

2

K620202

BEARING ASSY

SHAFT AND BEARING pump

1шт.

3

K200687

IMPELLER

water

1шт.

4

K200821

RING

impeller

1шт.

5

K200823

GLAND

SEAL gland

1шт.

6

K207579

PULLEY

without air conditioning

1шт.

7

K207586

PULLEY

with air conditioning

1шт.

8

K942844

GASKET

pump to impeller housing

1шт.

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY, Includes: Ref. 9 & 10 and washer K15512

1шт.

9

K952667

HOUSING

impeller

1шт.

10

K623829

PLUG

3/8 inch BSP

1шт.

K15512

WASHER

not illustrated

1шт.

11

K19500

GASKET

WASHER sealing, 5/8 inch, 16 mm

1шт.

12

K600205

BOLT

5/16 UNC x 1-1/2 inch

2шт.

13

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

hex, 5/16 NC x 2-1/4 inch

3шт.

14

K608173

STUD

5/16 UNC x 3-1/4 inch

1шт.

14

K608141

STUD

5/16 UNC x 1-11/16 inch, with air conditioning

2шт.

15

K19481

SPRING WASHER

WASHER lock, 5/16 inch

6шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

17

238-6223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

1-5/8 x 1/8 inch

1шт.

18

K915330

SEALING RING

SEAL rubber, pump to cylinder head

1шт.

19

K954916

FAN

17 inch, 432 mm

1шт.

20

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

21

492-11038

LOCK WASHER,3/8"

4шт.

22

K68073

V-BELT

Drive, Fan and alternator, Without air conditioning

1шт.

23

K308448

V-BELT,13.00 mm W x 1232.00 mm L

V-BELT , Drive, Fan and Alternator, With air conditioning 13.00 mm W x 1232.00 mm L

1шт.

24

K947778

PULLEY

crankshaft, without air conditioning

1шт.

24

K207318

PULLEY

crankshaft, with air conditioning

1шт.

25

K626403

WASHER

special, 1 inch, 25 mm

1шт.

26

K623300

NUT

crankshaft, 1 inch, special

1шт.
