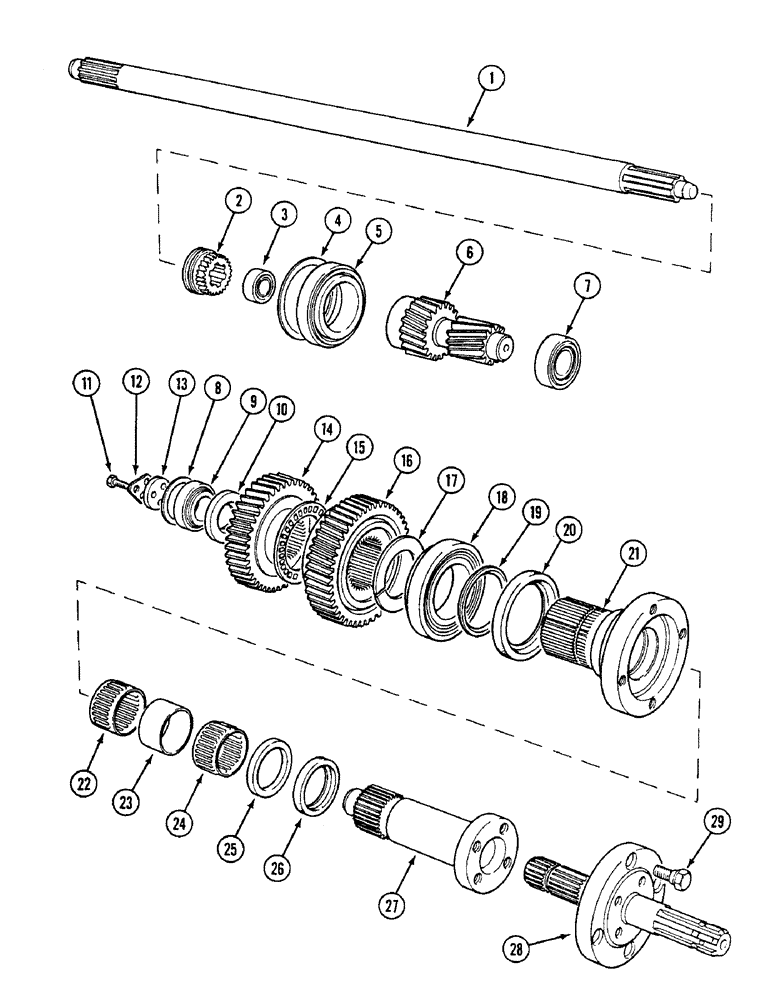

Запчасти Case IH 1494 (6-256) - SHAFTS AND GEARS, REVERSIBLE SHAFT PTO (06) - POWER TRAIN

1

K956320

SHAFT

cardan, PTO drive

1шт.

2

K946388

GEAR

sliding, dog clutch

1шт.

3

A43356

BEARING ASSY

BEARING ball

1шт.

4

K627406

SHIM,.003" Thk

(0.07 mm) .003" Thk

1шт.

4

K627407

SHIM,.005" Thk

(0.12 mm) .005" Thk

1шт.

4

K627408

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

4

K627409

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

5

REF

INSTRUCTION

BEARING, order 40392 and 40393

1шт.

6

K948384

GEAR

SHAFT input, 21/13 teeth

1шт.

7

REF

INSTRUCTION

BEARING, order 618023R91 and 618024R1

1шт.

8

K88921

SHIM,.003" Thk

(0.07 mm) .003" Thk

1шт.

8

K88922

SHIM,.005" Thk

(0.12 mm) .005" Thk

1шт.

8

K88923

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

8

K88924

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

9

REF

INSTRUCTION

BEARING, order 618023R91 and 618024R1

1шт.

10

K948389

WASHER

special

1шт.

11

K602803

BOLT

5/16 UNC x 3/4 inch

3шт.

12

K626430

WASHER

tab, retainer bolt

1шт.

13

K948390

BEARING

RETAINER bearing

1шт.

14

K948386

GEAR

driven, high speed, 43 teeth

1шт.

15

K620147

THRUST BEARING

BEARING thrust, needle

1шт.

16

K948385

GEAR

driven, low speed, 50 teeth

1шт.

17

K948392

RING

split, halves

2шт.

18

K620145

TAPERED BEARING,75mm ID x 130mm OD x 33.25mm W

taper roller

1шт.

19

K948391

RING

WASHER, special, early tractors

1шт.

20

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

oil, inner, 90 x 110 x 12 mm

1шт.

21

K948387

SHAFT

output, low speed

1шт.

22

K620146

NEEDLE BEARING

BEARING needle roller

1шт.

23

K948394

BUSHING

SPACER bearing

1шт.

24

K620146

NEEDLE BEARING

BEARING roller, needle

1шт.

25

K948395

PLATE

abutment

1шт.

26

K623464

OIL SEAL

oil, 55 x 70 x 8 mm

1шт.

27

K948388

SHAFT

output, high speed

1шт.

28

K948393

SHAFT

PTO SHAFT reversible, 6/21 splindes

1шт.

29

K948397

BOLT

BOLT, 1/2 inch

4шт.
