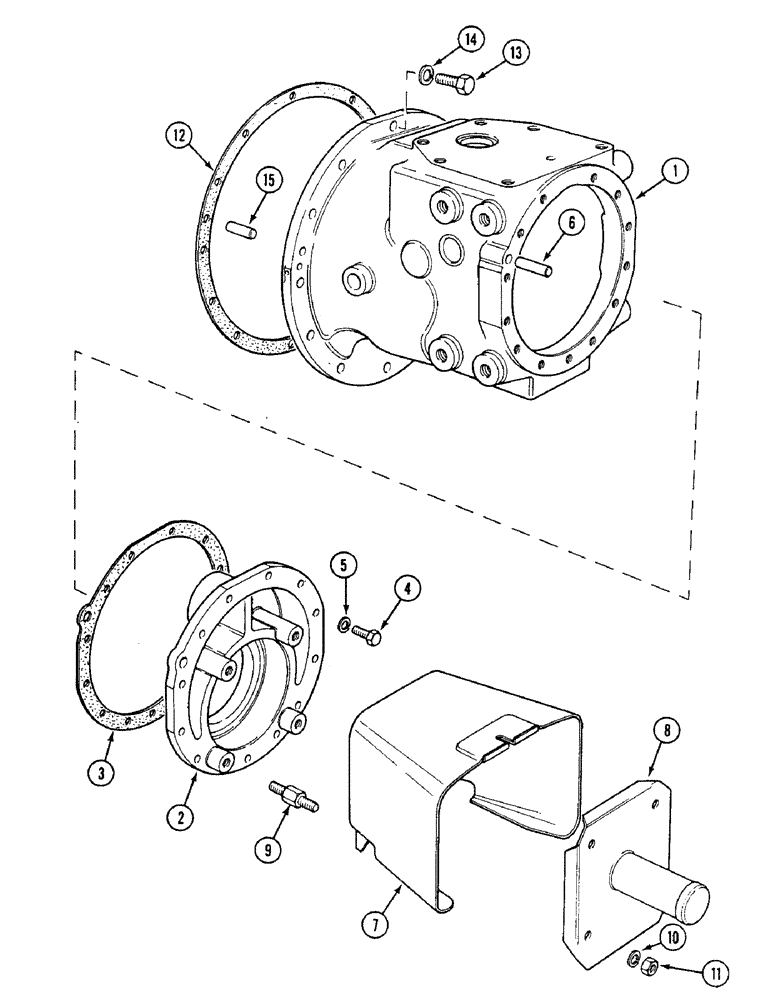

Запчасти Case IH 1494 (6-254) - HOUSING AND COVERS, REVERSIBLE SHAFT PTO (06) - POWER TRAIN

1

K948229

CASE

HOUSING PTO

1шт.

2

K207825

SHAFT

COVER housing

1шт.

3

K948396

GASKET,0.25mm Thk

cover

1шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

13шт.

5

K19481

SPRING WASHER

WASHER lock, 5/16 inch

13шт.

6

K30134

PIN

DOWEL, 1/2 x 1-5/16 inch, 13 x 33 mm

1шт.

7

K948409

GUARD

PTO shaft

1шт.

8

K955938

GUARD

COVER PTO shaft

1шт.

9

K608325

STUD

7/16 UNC x 2-1/2 inch

4шт.

10

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

11

280717

NUT,7/16"-14, G5

4шт.

12

K205398

GASKET

plate to rear axle housing and PTO unit

1шт.

13

K603006

SCREW

BOLT, 7/16 UNC x 1-3/8 inch

12шт.

14

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

15

K61412

PIN

DOWEL, PTO to axle case, 7/16 x 1-1/4 inch, 11 x 32 mm

1шт.
