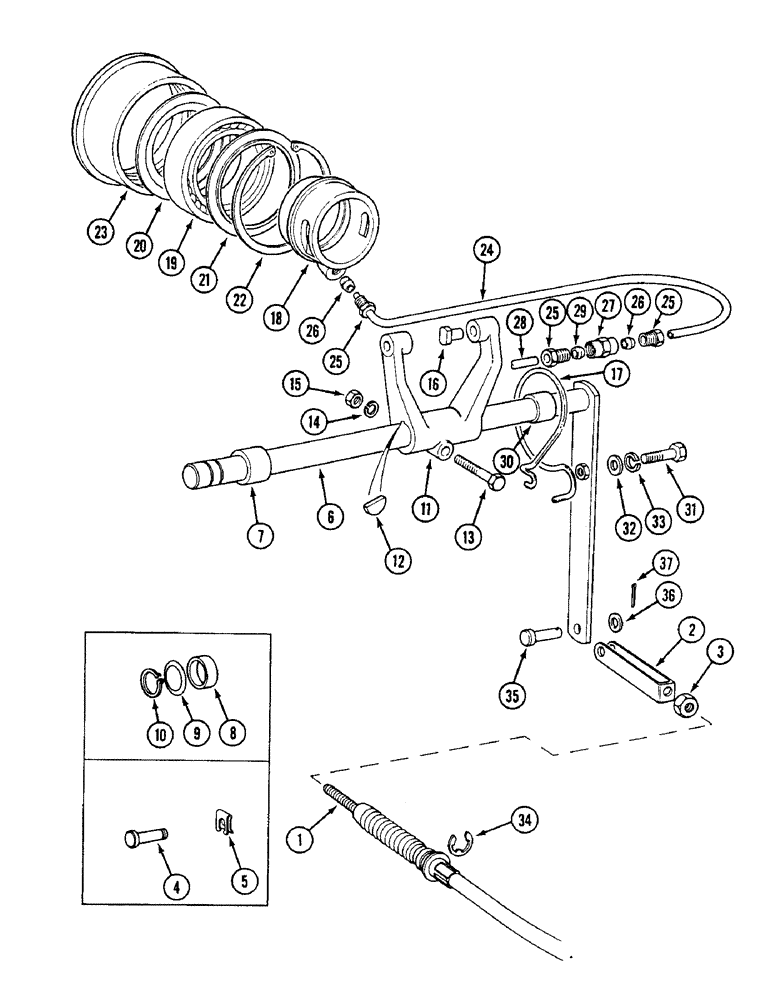

Запчасти Case IH 1494 (6-248) - PTO CLUTCH RELEASE MECHANISM (06) - POWER TRAIN

1

K310597

CABLE

inner and outer, without cab, 1605 mm

1шт.

1

K310598

CABLE

inner and outer, with cab, 2105 mm

1шт.

Ref #1 if dealer is looking for cable 75" long order K307921. LLB 1-28-99

1шт.

Ref #1(K310598) : If dealer is looking for a cable that is approx. 95" long, try K307920. SMA 8/20/98

1шт.

2

K310584

FORK

cable end, without cab, 83 mm

1шт.

2

K310585

FORK

cable end, with cab, 106 mm

1шт.

3

825-13412

NUT,M12 x 1.25, Cl 8

cable, M12

2шт.

4

K658613

PIN

clevis

1шт.

5

K659105

CLIP

link pin

1шт.

6

K206500

SHAFT

CROSS SHAFT AND ARM

1шт.

7

K206499

BUSHING

SPACER

1шт.

8

K627472

WASHER

1 inch, prior to P.I.N. 11515727

1шт.

9

K626749

WASHER

Belleville, 1 inch, prior to P.I.N. 11515727

1шт.

10

K11128

CIRCLIP

RING snap, 1 inch, 25 mm, OD, prior to P.I.N. 11515727

1шт.

11

K928940

FORK

PTO clutch

1шт.

12

126-22

WOODRUFF KEY,#13, 3/16" x 1"

(No. 608) #13, 3/16" x 1"

2шт.

13

K600406

BOLT

3/8 UNC x 1-3/4 inch, special

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

280136

NUT,3/8"-16, G8

1шт.

16

K84748

TRUNNION

PIN trunnion, clutch fork

2шт.

17

K307501

SPRING

cross shaft return

1шт.

18

K928939

CARRIER

release bearing

1шт.

19

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

BEARING thrust, PTO clutch

1шт.

20

K928741

RETAINER,76.33mm ID x 111.13mm OD x 0.79mm Thk

SHIELD, front

1шт.

21

K928742

RETAINER

SHIELD, rear

1шт.

22

K12777

RING, SNAP

RING retaining, 4-1/2 inch, 115 mm, internal

1шт.

23

K928938

SLEEVE,104.78mm ID x 139.7mm OD x 55.56mm L

thrust

1шт.

24

K926410

TUBE,0.122" ID x 0.187" OD

plastic

1шт.

25

K617956

NUT

tubing, 3/8 inch UNF

3шт.

26

K622407

FERRULE

SLEEVE tube, 3/16 inch ID

2шт.

27

K626045

FITTING

CONNECTOR, 3/8 inch UNF

1шт.

28

K926411

TUBE,0.187" OD x 2.625" L

main frame

1шт.

29

222-651

SLEEVE,3/16" Tube, Comp

Tapered 3/16" Tube, Comp

1шт.

30

K628753

BUSHING

main frame

3шт.

31

K650629

SCREW

BOLT, M6 x 25 mm

1шт.

32

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

33

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

34

K621595

RING, SNAP

RING snap, cable to fuel tank support

1шт.

35

K625941

PIN

clevis

1шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

1шт.

37

K652196

PIN

cotter

1шт.
