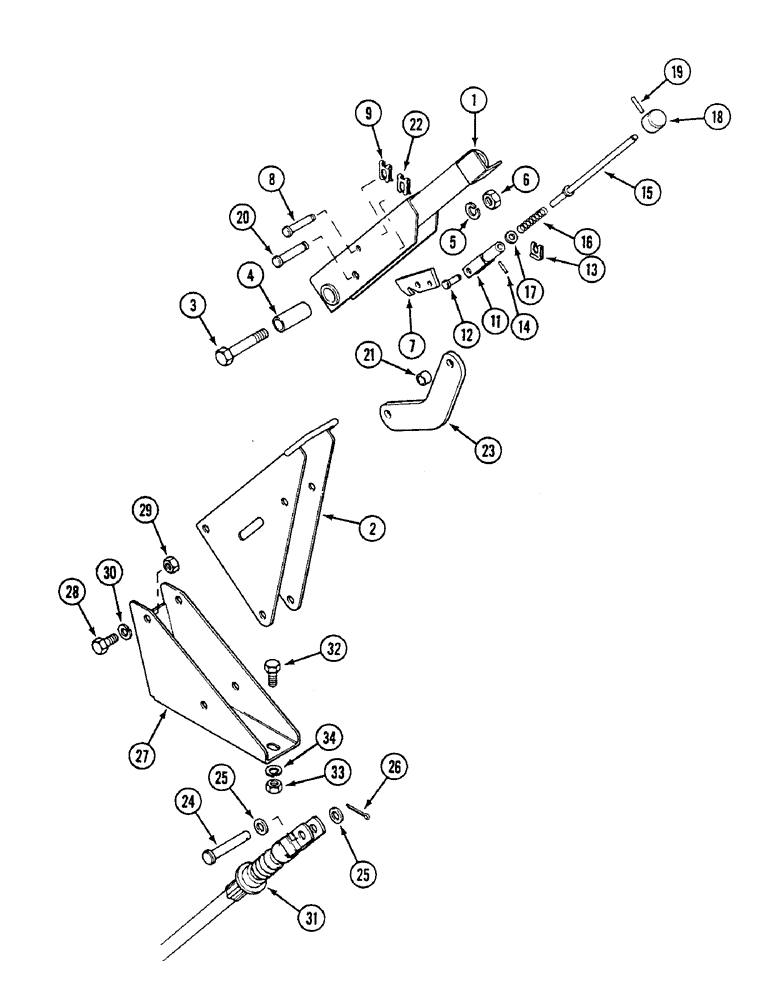

Запчасти Case IH 1494 (6-244) - RELEASE LEVER FOR PTO CLUTCH, TRACTORS WITHOUT CAB - PRIOR TO P.I.N. 11276966, ALL TRACTORS W/ CAB (06) - POWER TRAIN

1

K307090

HANDLE

LEVER hand

1шт.

2

K307095

BRACKET

hand lever

1шт.

3

K650665

BOLT

M10 x 50 mm, order 814-10010

1шт.

4

K655731

BUSHING

SPACER pivot

1шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

K651554

NUT

M10

1шт.

7

K307099

LATCH

hand lever

1шт.

8

K658511

PIN

latch pivot

1шт.

9

K659104

CLIP

latch pin

1шт.

11

K659017

FORK

release rod

1шт.

12

K658611

PIN

fork

1шт.

13

K659103

CLIP

fork pin

1шт.

14

K657400

PIN

roll

1шт.

15

K307101

ROD

latch release

1шт.

16

K658021

SPRING

latch rod

1шт.

17

K651776

WASHER

5 mm

1шт.

18

K307100

BUTTON

latch release

1шт.

19

K657402

PIN

roll

1шт.

20

K658525

LINK

PIN link

1шт.

21

K655718

BUSHING

SPACER link pin

2шт.

22

K659105

CLIP

link pin

1шт.

23

K307325

LINK

, Serial Range: cable-lever

1шт.

24

K658524

PIN

cable

1шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.

26

K652196

PIN

cotter, order 632-79

1шт.

27

K307096

BRACKET

lever mounting, with cab

1шт.

27

K307142

BRACKET

lever mounting, without cab

1шт.

28

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

4шт.

29

825-1408

NUT,M8, Cl 8

4шт.

30

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

31

K310598

CABLE

inner and outer, with cab, 82.87 inch, 2105 mm

1шт.

31

K310597

CABLE

inner and outer, without cab, 75.25 inch, 1910 mm

1шт.

32

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

2шт.

33

825-1408

NUT,M8, Cl 8

2шт.

34

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.
