Запчасти Case IH 1494 (6-242) - POWER ADJUSTED REAR WHEELS (06) - POWER TRAIN

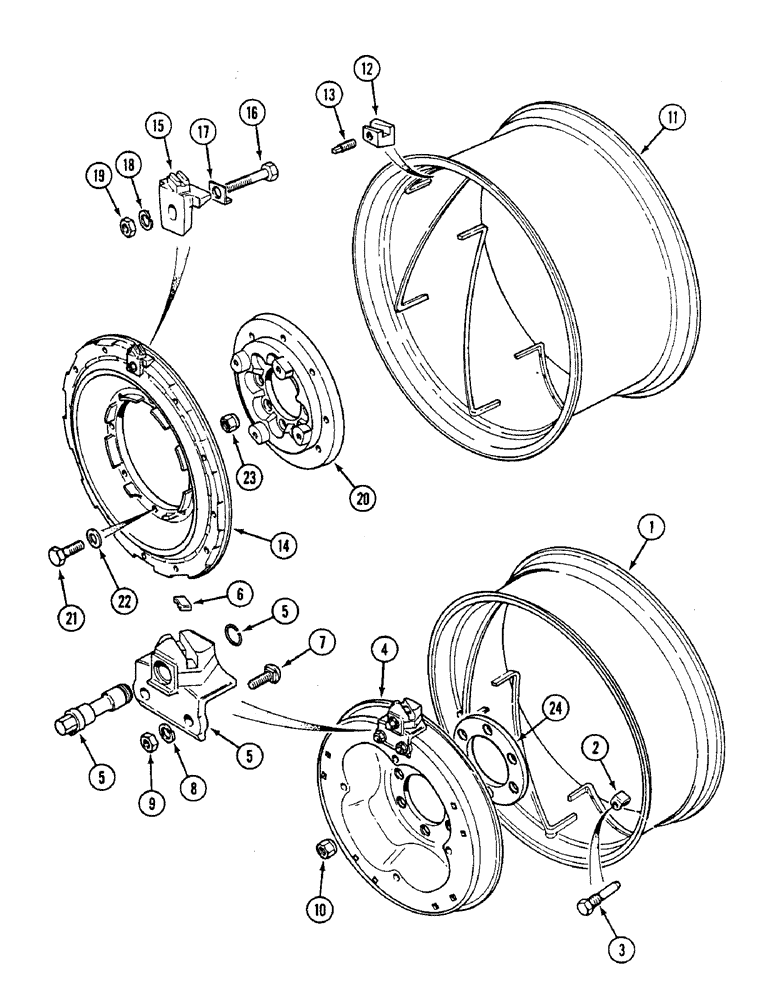

Схема запчастей Case IH 1494 - (6-242) - POWER ADJUSTED REAR WHEELS (06) - POWER TRAIN
18
3
10
2
24
5
8
14
7
15
17
4
1
11
12
13
22
9
6
5
16
21
20
5
23
19

Артикул

Название

Примечание

Количество

A147232

RIM

ASSEMBLY, rear, fits 15.5 x 38 tires, Includes: Ref. 1 - 9

2шт.

1

A45192

WHEEL

RIM, rear, W14L x 38

1шт.

2

A41740

STOP

BRACKET stop, wheel rim

2шт.

3

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT stop bracket

2шт.

4

A147234

DISC

WHEEL center, rear

1шт.

5

K918809

AXLE PIN

PIN eccentric

1шт.

6

A41741

BLOCK

clamp

1шт.

7

111-614

CARRIAGE BOLT,Short NK, 5/8"-11 x 1 5/8", G5

BOLT, 5/8 UNC x 1-5/8 inch

12шт.

8

129-25

WASHER

lock, 5/8 inch

12шт.

9

425-1010

NUT,5/8"-11, G5

12шт.

10

K617168

WHEEL NUT

wheel, 3/4 inch UNF

16шт.

K301058

WHEEL

ASSEMBLY, rear, for 18.4/15-38 tires, Includes: Ref. 11 - 19

2шт.

11

K309573

RIM

rear wheel, W16L x 38 inch, Replaces: K301021

1шт.

12

A9406

STOP

rim

2шт.

13

K301032

LOCK

BOLT stop bracket, order A49440

2шт.

14

K301033

WHEEL

CENTER rear wheel, order A33714

1шт.

15

A33171

CLAMP

double ramp

6шт.

16

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

square head, 3/4 NC x 3-1/2 inch

6шт.

17

A34799

LOCK WASHER

lock, clamp bolt

6шт.

18

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

clamp nut

6шт.

19

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

6шт.

K301057

RIM

WHEEL ASSEMBLY, rear, for 16.9/14-34 tires, order components, Includes: Ref. 11 - 19

2шт.

11

K309572

RIM

rear wheel, W15 x 34 inch, Replaces: K302265

1шт.

12

A9406

STOP

rim

2шт.

13

K301032

LOCK

BOLT stop bracket

2шт.

14

A33172

WHEEL

CENTER wheel

1шт.

15

A33171

CLAMP

double ramp

6шт.

16

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

square head, 3/4 NC x 3-1/2 inch

6шт.

17

A34799

LOCK WASHER

lock, clamp bolt

6шт.

18

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

clamp nut

6шт.

19

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

6шт.

20

K205298

WHEEL

ADAPTOR rear wheel

2шт.

21

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

16шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

23

K617168

WHEEL NUT

wheel, 3/4 inch UNF

16шт.

24

A166489

BUSHING

SPACER wheel

2шт.

Выбрано товаров: 36
