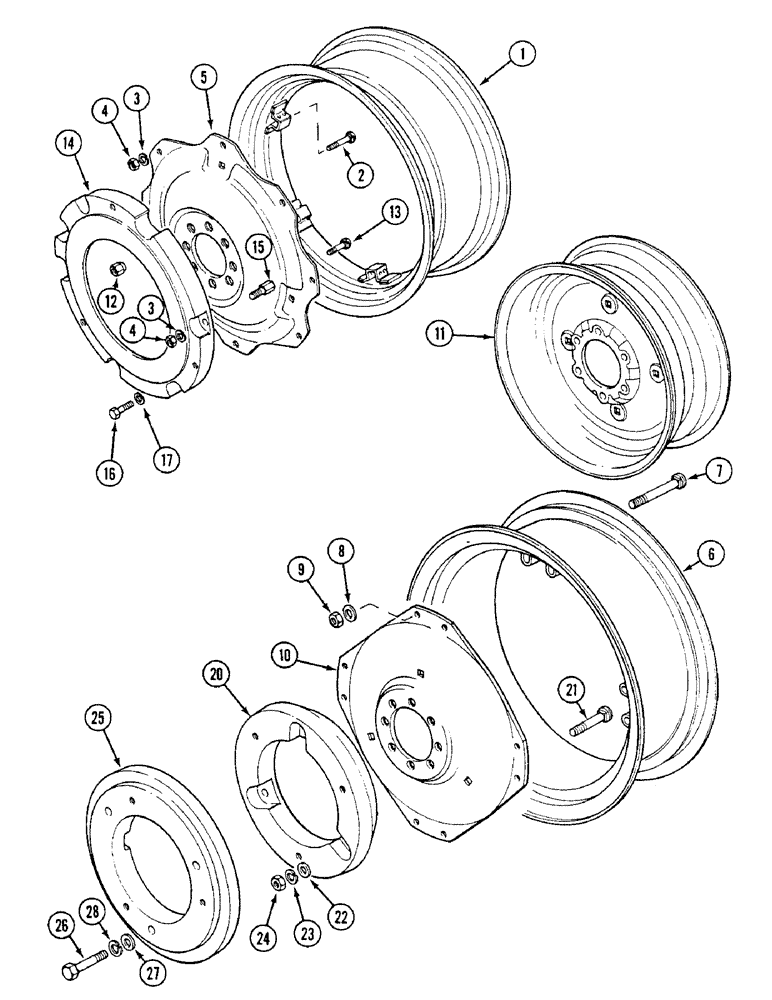

Запчасти Case IH 1494 (6-240) - REAR WHEELS AND BALLAST WEIGHTS (06) - POWER TRAIN

K301014

WHEEL

RIM ASSEMBLY, rear, fits Sankey, Includes: Ref. 1 - 5

2шт.

1

K301015

RIM

ASSEMBLY, rear wheel, W14 x 30

1шт.

2

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT rim, 5/8 UNF x 2-7/8 inch

6шт.

3

K19475

WASHER

5/8 inch

6шт.

4

425-1110

NUT,5/8"-18, G5

6шт.

5

K301016

WHEEL

center, rear

1шт.

K330214

RIM

ASSEMBLY, rear, fits 16.9/14-30 tires, Sankey, Includes: Ref. 6 - 10

2шт.

6

1332736C1

RIM

ASSEMBLY, rear wheel, with lugs, DW14 x 30

1шт.

7

K310777

WHEEL BOLT,M16 x 2 x 79mm, Gr 8.8

BOLT rim, M16 x 78 mm

8шт.

8

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

8шт.

9

829-1416

NUT,M16, Cl 10

hex, 16 mm - 2.0, class 10

8шт.

10

K330217

WHEEL

center, rear

1шт.

REF

INSTRUCTION

WHEEL ASSEMBLY, rear, for 16.9/14-34 tires, Includes: Ref. 6 - 10

2шт.

6

K306351

RIM

wheel, rear, DW, 14 x 34

1шт.

7

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT coach, 16 x 120 mm, grade 8.8

8шт.

9

829-1416

NUT,M16, Cl 10

hex, 16 mm - 2.0, class 10

8шт.

10

K306356

DISC, WHEEL

WHEEL center, rear

1шт.

REF

INSTRUCTION

WHEEL ASSEMBLY, rear, for 18.4/15-34 tires, Includes: Ref. 6 - 10

2шт.

6

K306363

RIM

rear wheel, DW, 16 x 34

1шт.

7

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT coach, 16 x 120 mm, grade 8.8

8шт.

8

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

8шт.

9

829-1416

NUT,M16, Cl 10

hex, 16 mm - 2.0, class 10

8шт.

10

K306356

DISC, WHEEL

WHEEL center, rear

1шт.

REF

INSTRUCTION

WHEEL ASSEMBLY, rear, for 13.6/12-38 tires, Includes: Ref. 6 - 10

2шт.

6

1265244C1

RIM

wheel

1шт.

7

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT coach, 16 x 120 mm, grade 8.8

8шт.

8

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

8шт.

9

829-1416

NUT,M16, Cl 10

hex, 16 mm - 2.0, class 10

8шт.

10

K306355

DISC, WHEEL

WHEEL center, rear

1шт.

11

K309291

WHEEL

rear, W, 15L x 24

2шт.

11

K309292

WHEEL

rear, DW, 16 x 26

2шт.

12

K617168

WHEEL NUT

wheel, 3/4 inch UNF

16шт.

UK729

WHEEL

WEIGHT ASSEMBLY ballast, use with wheel K301014, Includes: Ref. 13 - 17

1шт.

13

K611280

BOLT

rim, 5/8 UNF x 3 inch

6шт.

14

K86167

WEIGHT

ballast, 45 kg

4шт.

15

K914869

STUD

5/8 inch UNF

6шт.

16

K19305

BOLT

5/8 BSF x 2 inch

6шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

UK5926

WHEEL

WEIGHT UNIT ballast, for wheels, Includes: Ref. 20 - 28

1шт.

20

K207479

WHEEL

WEIGHT ballast, inner, 45 kg, 100 lb

2шт.

21

K611283

BOLT

5/8 UNF x 3-1/2 inch

6шт.

22

K626855

WASHER

5/8 inch, 10 mm, special

6шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

24

425-1110

NUT,5/8"-18, G5

6шт.

25

K207480

WHEEL

WEIGHT ballast, outer, 44 kg, 97 lb

2шт.

26

K601366

BOLT

5/8 UNC x 3-1/2 inch, order 413-1056

6шт.

27

K626855

WASHER

5/8 inch, 10 mm, special

6шт.

28

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.
