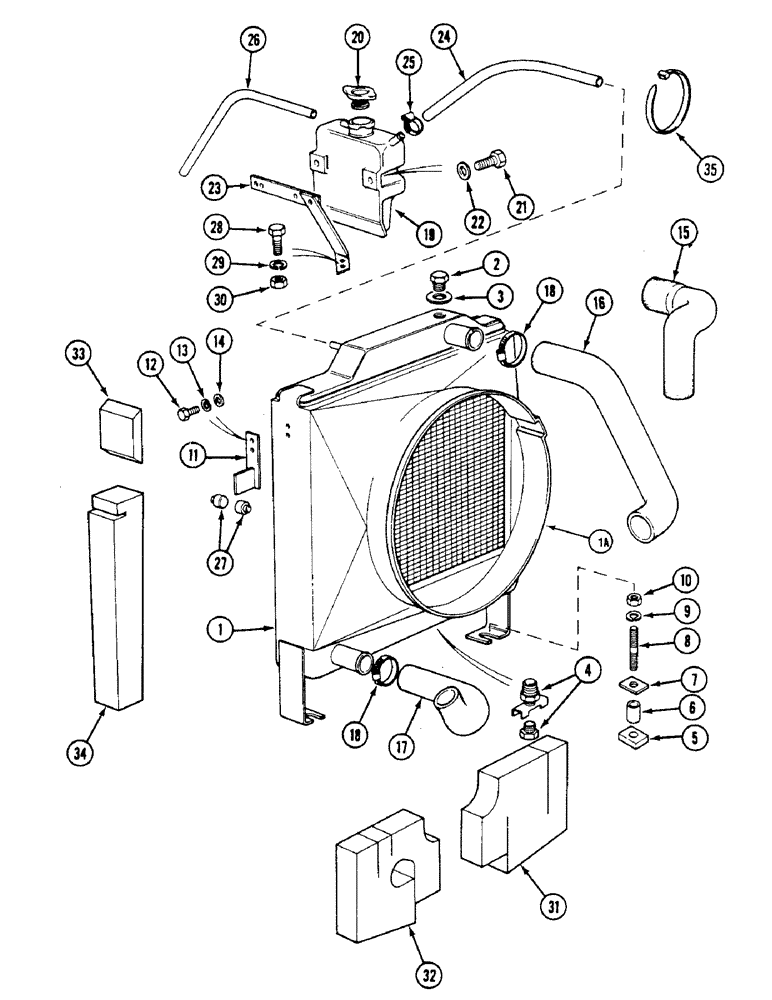

Запчасти Case IH 1494 (2-004) - RADIATOR (02) - ENGINE

1

K307602

RADIATOR

standard, Includes: Ref. 1A

1шт.

1a

K262492

ORIFICE RING

SHROUD radiator

1шт.

1

K307593

RADIATOR

tropical or with air conditioning, Includes: Ref. 1A - 3

1шт.

1a

K262492

ORIFICE RING

SHROUD radiator

1шт.

2

K262787

PLUG

radiator fill

1шт.

3

K965726

WASHER

plug

1шт.

4

K622060

PLUG, DRAIN

VALVE drain, 1/4 inch BSP

1шт.

4

K19531

PIN

PLUG drain 1/4 inch, BSP alternative, early tractors, 3/32 x 1-1/4 inch

1шт.

5

K921836

WEDGE

PACKING mounting

4шт.

6

K203115

TUBE

SPACER stud

2шт.

7

K304769

BRACKET

PLATE clamping

2шт.

8

K608209

STUD

exhaust manifold, 3/8 UNC x 2-1/4 inch

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

K305579

BRACKET

radiator upper

2шт.

12

K651225

BOLT

M6 x 12 mm

4шт.

13

K626552

WASHER

lock, 1/4 inch

4шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

15

K201747

RADIATOR HOSE

Inlet

1шт.

16

K207335

RADIATOR HOSE,1.50" ID, 2.00 ID x 7.13", SAE J20 R4 Class D1

1.50" ID, 2.00" ID x 7.13", SAE J20R4 Class D-1, Inlet

1шт.

17

K203350

RADIATOR HOSE,1.50" ID x 6.88", SAE J20 R4 Class D1

Outlet 1.50" ID x 6.88", SAE J20 R4 Class D1

1шт.

18

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

3шт.

18

K622031

CLAMP

hose, 2-1/4 inch, 57 mm, diameter

1шт.

19

K300647

TANK

overflow

1шт.

20

E81942

RADIATOR CAP,Vented

CAP tank

1шт.

21

K602846

SCREW,5/16" - 18 x 5/8", Gr S

BOLT 5/16 UNC x 5/8 inch

2шт.

22

K626682

WASHER

lever pin, 5/16 inch, 8 mm

2шт.

23

K307657

BRACKET

support, overflow tank

1шт.

24

REF

INSTRUCTION

HOSE radiator overflow, cut from A21562

1шт.

25

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

2шт.

26

K304338

HOSE

TUBE drain, 8 x 600 mm

1шт.

27

K302961

RUBBER

BLOCK rubber

4шт.

28

K650628

BOLT

M6 x 20 mm

2шт.

29

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

30

825-13412

NUT,M12 x 1.25, Cl 8

cable, M12

2шт.

31

K308093

BAFFLE

radiator, right hand

1шт.

32

K308094

BAFFLE

radiator, left hand

1шт.

33

K308092

BAFFLE

radiator, side, upper

2шт.

34

K306752

BAFFLE

radiator, side, lower

2шт.

35

K628387

STRAP

TIE cable to air cleaner

2шт.
