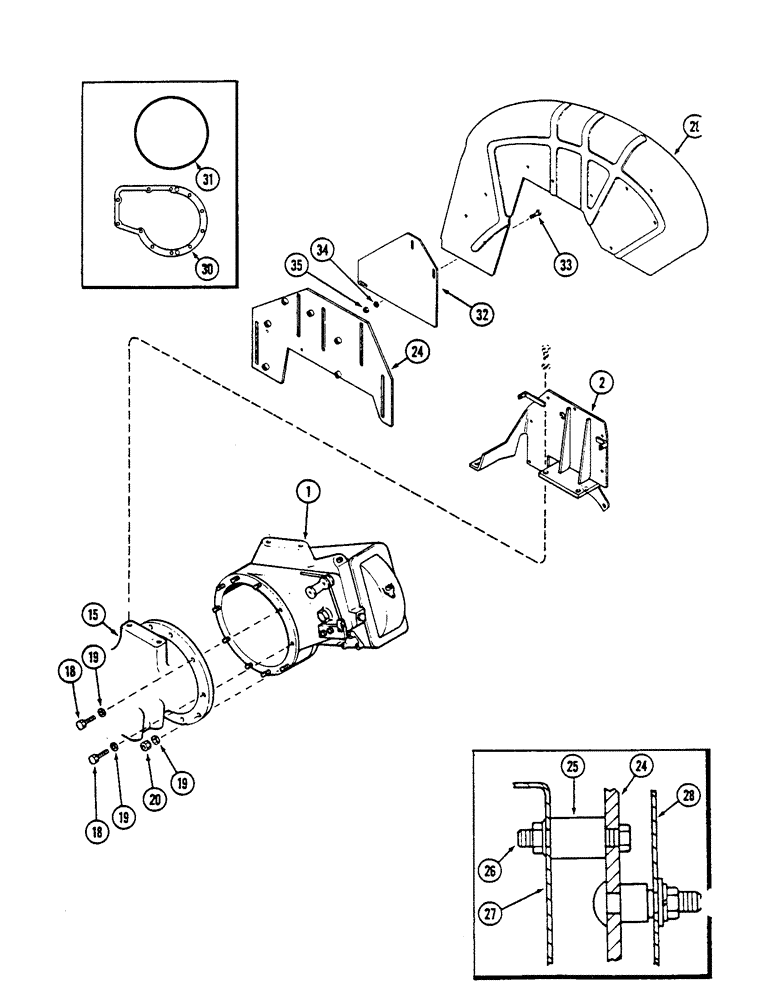

Запчасти Case IH 1494 (6-236) - ROTATED FINAL DRIVE HOUSING RELATED PARTS, LOW PROFILE SPECIAL (06) - POWER TRAIN

A177414

KIT, rear axle rotation, Includes: Ref. 1 - 35

1шт.

1

REF

INSTRUCTION

HOUSING final drive, right hand shown, See Figure 6-234

1шт.

2

A177285

FENDER

SUPPORT fender, right hand shown

1шт.

2

A177284

FENDER

SUPPORT fender, left hand

1шт.

15

REF

INSTRUCTION

HOUSING rear axle, See Figure 9-390

1шт.

18

113-2441

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

20шт.

20

REF

INSTRUCTION

NUT hex, 1/2 inch NC

20шт.

24

A165439

FITTING

ADAPTER fender

2шт.

25

REF

INSTRUCTION

SPACER adapter, 1/2 inch

12шт.

26

REF

INSTRUCTION

BOLT, 8 x 45 mm

12шт.

27

REF

INSTRUCTION

COVER rear axle

1шт.

28

REF

INSTRUCTION

FENDER rear, right-hand

1шт.

30

1349362C1

GASKET

2шт.

31

K628855

O-RING,3mm Thk x 244mm ID, 75 Duro

9-5/8 inch, 245 mm, ID

2шт.

32

A166394

GUARD

tire

2шт.

33

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2

4шт.

34

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

35

425-106

NUT,3/8"-16, Cl 5

4шт.
