Запчасти Case IH 1494 (6-234) - HOUSING AND COVERS FOR FINAL DRIVES (06) - POWER TRAIN

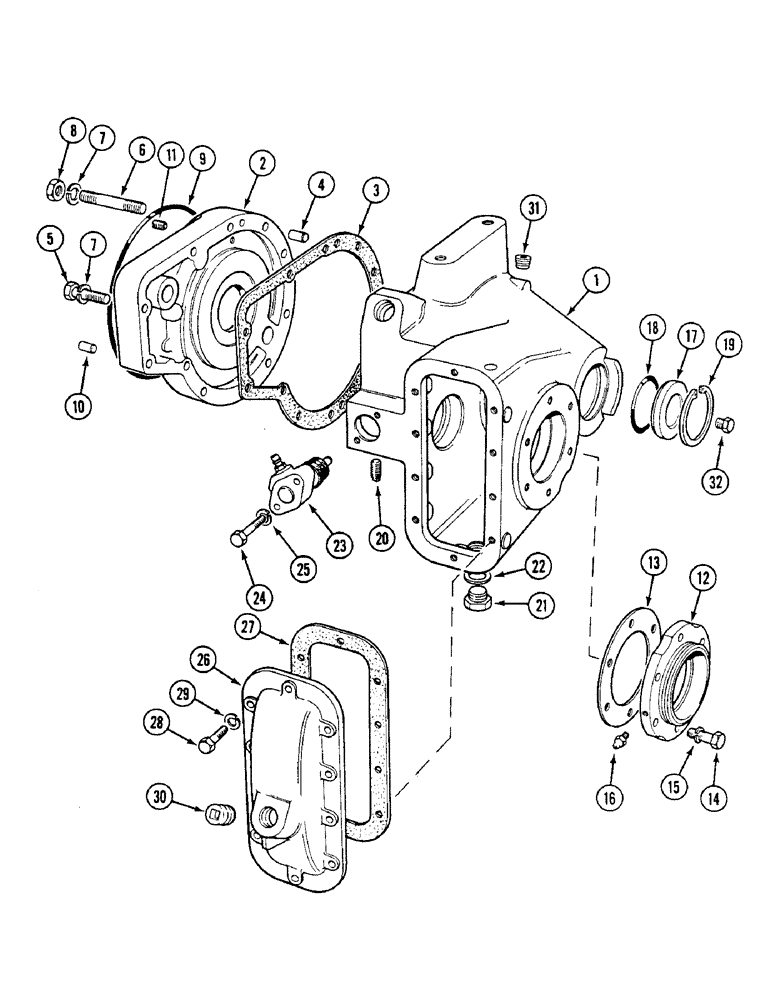

Схема запчастей Case IH 1494 - (6-234) - HOUSING AND COVERS FOR FINAL DRIVES (06) - POWER TRAIN
5
7
7
8
10
3
6
29
22
1
18
17
30
32
27
9
16
26
11
24
19
15
20
23
21
25
2
28
13
14
4
31
12

Артикул

Название

Примечание

Количество

1

K954724

HOUSING

right hand, standard clearance

1шт.

1

K954723

HOUSING

left hand, standard clearance

1шт.

1

K957275

HOUSING

right hand, high clearance

1шт.

1

K957274

HOUSING

left hand, high clearance

1шт.

2

K954734

HOUSING

brake, right hand, standard clearance

1шт.

2

K954733

HOUSING

brake, left hand, standard clearance

1шт.

2

K957262

HOUSING

brake, right hand, high clearance

1шт.

2

K957261

HOUSING

brake, left hand, high clearance

1шт.

3

1349362C1

GASKET

2шт.

4

K900105

PIN

DOWEL, 5/8 x 1-7/16 inch

4шт.

5

K600909

BOLT

1/2 UNC x 1-3/4 inch, Grade V

4шт.

5

K600912

BOLT

1/2 UNC x 2 inch, folding ROPS

4шт.

6

K608430

STUD

1/2 UNC x 4-1/16 inch

16шт.

6

K608429

STUD

1/2 UNC x 4-5/8 inch, without cab

4шт.

6

K608432

STUD,1/2" - 13 x 4-1/2"

lifting bracket, 1/2 UNC x 4-1/2 inch, high clearance

20шт.

6

K600989

STUD, 1/2 UNC x 3-7/8 inch, folding ROPS

4шт.

6

K608511

STUD

BOLT, 1/2 UNC x 2-11/16 inch, without cab

18шт.

6

K608427

STUD

1/2 UNC x 2-7/8 inch, without cab

2шт.

7

K19484

LOCK WASHER

WASHER lock, 1/2 inch

30шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

9

K628855

O-RING,3mm Thk x 244mm ID, 75 Duro

9-5/8 inch, 245 mm, ID

2шт.

10

K900105

PIN

DOWEL, 5/8 x 1-7/16 inch

4шт.

11

K947891

BREATHER

3/8 inch UNF, standard clearance

2шт.

12

K944516

HOUSING

oil seal, right-hand

1шт.

12

K944517

HOUSING

oil seal, left-hand

1шт.

13

K902772

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

13

K902772

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

13

K902774

SHIM,.009" Thk

(0.23 mm) .009" Thk

1шт.

13

K902775

GASKET

SHIM, 0.015 inch, 0.38 mm

1шт.

13

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

0.030 inch, 0.76 mm

1шт.

14

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

hex, 7/16 NC x 1-1/2 inch

12шт.

15

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

17

K929045

COVER

end, pinion bearing, standard clearance

2шт.

17

K203967

COVER

end, high clearance

2шт.

18

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

19

K13042

RING, SNAP

RING snap, 3-1/4 inch, 82 mm, internal

2шт.

20

K623758

PLUG

taper, 1/4 inch BSP

2шт.

21

K623849

PLUG

sump drain, 1/2 inch BSP

4шт.

22

K15143

WASHER

sealing, 7/8 inch, 22 mm

4шт.

23

K200219

CYLINDER

SLAVE CYLINDER brakes

2шт.

24

K600205

BOLT

5/16 UNC x 1-1/2 inch, order 413-524

4шт.

25

K19481

SPRING WASHER

WASHER lock, 5/16 inch, order 492-11031

4шт.

26

K203311

COVER

2шт.

27

K923221

GASKET,0.51mm Thk

cover

2шт.

28

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

20шт.

29

492-11038

LOCK WASHER,3/8"

20шт.

30

K12362

PLUG

taper, 1 inch BSP

4шт.

31

K12362

PLUG

taper, 1 inch BSP

4шт.

31

K14596

PLUG

taper, high clearance, 1/2 inch BSP

2шт.

32

K623752

PLUG

end cover, 1/8 inch BSP, high clearance

2шт.

Выбрано товаров: 51
