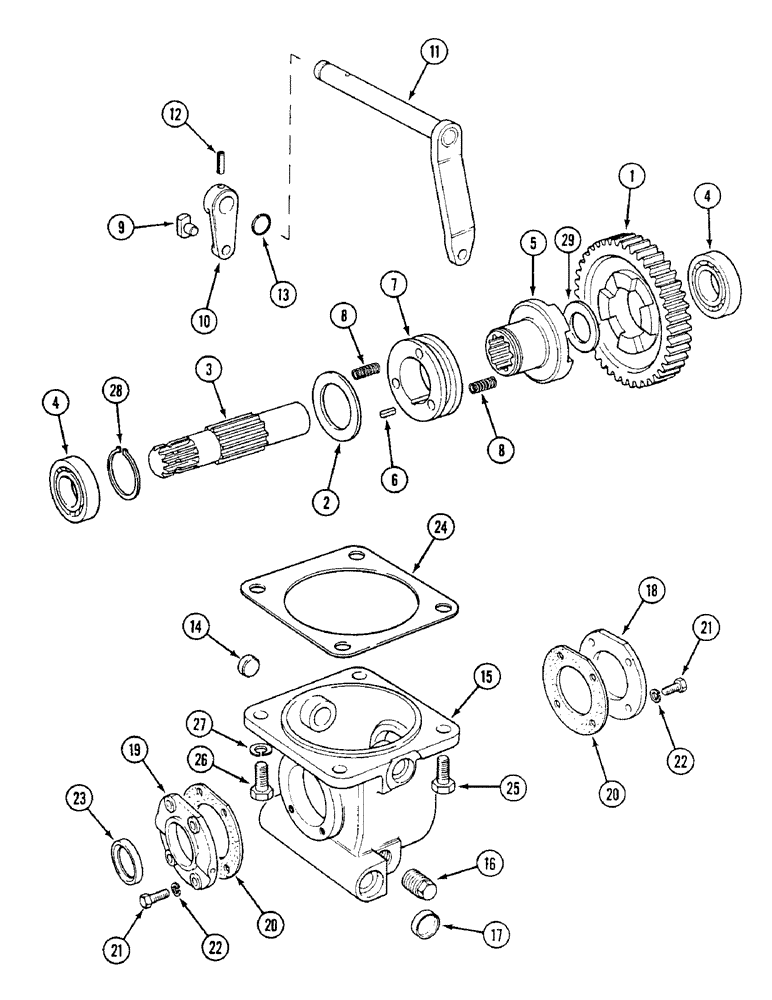

Запчасти Case IH 1494 (6-232) - TRANSFER GEARBOX ASSEMBLY, MFD - POWER SHIFT (06) - POWER TRAIN

1

K205167

GEAR

drive, with two lugs, Carraro 116105

1шт.

2

K261812

WASHER

clutch, Carraro 115208

1шт.

3

K261920

SHAFT

output, Carraro 116104

1шт.

4

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING ball

2шт.

5

K208021

SPLINED COUPLING

CLUTCH sliding, Carraro 118914, Replaces: K261918

1шт.

6

1966855C1

SPLINE

KEY sleeve

1шт.

7

1967549C1

SLEEVE

clutch

1шт.

8

K261814

SPRING

clutch, Carraro 115798

6шт.

9

K261924

SELECTOR

PIN trunnion, Carraro 115307

2шт.

10

K261922

SELECTOR

FORK selector, Carraro 112872

2шт.

11

K261930

SHAFT

SPINDLE AND LEVER, Carraro 116108

1шт.

12

K261917

PIN

roll, spindle, Carraro 24440

2шт.

13

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

14

A157155

PLUG

Carraro 106320

1шт.

15

K205168

HOUSING

transfer box, Carraro 116090

1шт.

16

110782A1

PLUG, DRAIN

PLUG, 24 mm

1шт.

17

K260751

CORE

PLUG core, Carraro 112588

2шт.

18

K965396

COVER

PLATE, rear, Carraro 89244

1шт.

19

K965397

COVER

PLUG drain, Carraro 89275

1шт.

20

K965398

GASKET

end plates

2шт.

21

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm

8шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

23

K965399

OIL SEAL

oil, Carraro 25156

1шт.

24

K261921

GASKET

main frame, Carraro 116136

1шт.

25

K260269

BOLT

BOLT, 5/8 inch UNC, Carraro 21475

3шт.

26

K260276

PIN

BOLT, 5/8 inch UNC, Carraro 106594

1шт.

27

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

28

800-1152

SNAP RING,M52, External

RING snap

1шт.

29

K261919

WASHER

thrust, Carraro 110287

1шт.
