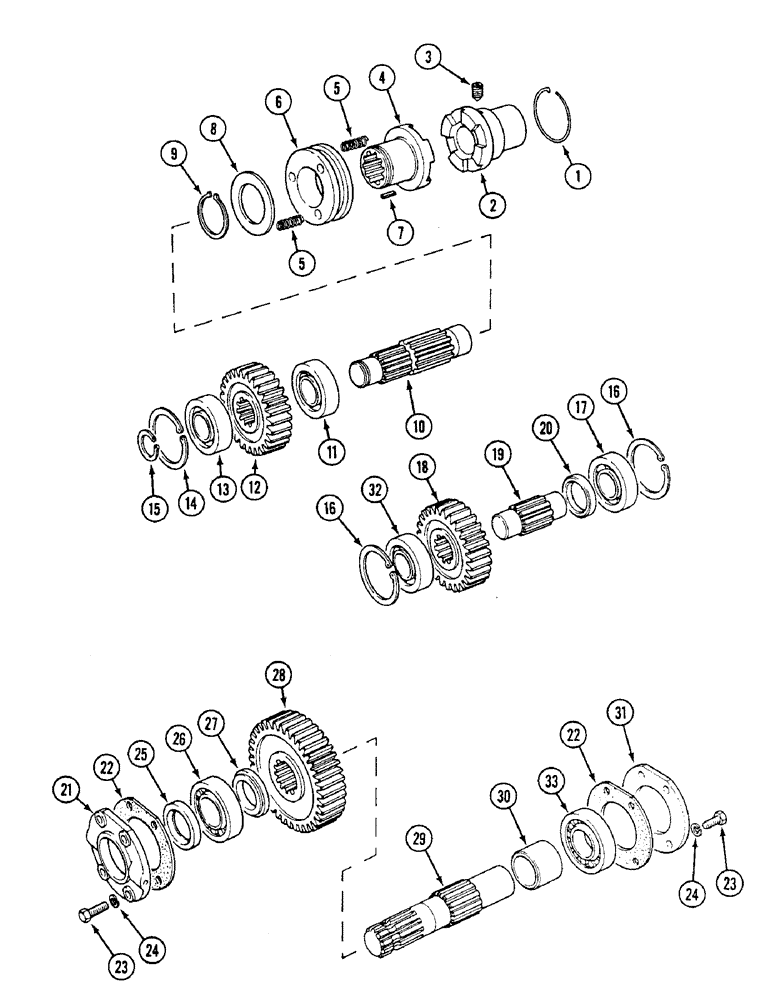

Запчасти Case IH 1494 (6-230) - TRANSFER GEARBOX, GEARS AND SHAFTS, MFD - SYNCHROMESH (06) - POWER TRAIN

1

K965760

SPRING

RING snap, Carraro 108169

1шт.

2

K261903

SPLINED COUPLING

COUPLING drive, Carraro 115962

1шт.

3

K260742

SCREW

drive coupling, Carraro 110550

1шт.

4

K261815

SPLINED COUPLING

CLUTCH sliding, Carraro 117836

1шт.

5

K261814

SPRING

clutch, Carraro 115798

6шт.

6

1967549C1

SLEEVE

clutch

1шт.

7

1966855C1

SPLINE

KEY sleeve

1шт.

9

800-1152

SNAP RING,M52, External

WASHER clutch

1шт.

10

K261811

DRIVE SHAFT

SHAFT drive, gearbox, Carraro 115961

1шт.

11

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING ball

1шт.

12

K260271

PINION

GEAR drive, Carraro 106583

1шт.

13

K965401

BALL BEARING

BEARING roller, prior to P.I.N. 11515001, order ST241

1шт.

13

K395136

ROLLER BEARING

roller, P.I.N. 11515001 and after

1шт.

14

K965403

RING, SNAP

RING snap, Carraro 24913

1шт.

15

K965402

RING, SNAP

RING snap, Carraro 24785

1шт.

16

K965403

RING, SNAP

RING snap, Carraro 24913

2шт.

17

ST241

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

BEARING ball

1шт.

18

K260271

PINION

GEAR drive, Carraro 106583

2шт.

19

K965389

SHAFT

intermediate, Carraro 105359

1шт.

20

K260277

COLLAR

SPACER bearing, Carraro 106580

1шт.

21

K965397

COVER

PLUG drain, Carraro 89275

1шт.

22

K965398

GASKET

end plates, Carraro 88830

2шт.

23

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm

8шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

25

K965399

OIL SEAL

oil, Carraro 25156

1шт.

26

K965408

BALL BEARING

BEARING ball, prior to P.I.N. 11515001, order ST205A

1шт.

26

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING ball, P.I.N. 11515001 and after

1шт.

27

K260278

COLLAR

SPACER, front, Carraro 104839

1шт.

28

K260272

GEAR

driven, Carraro 105803

1шт.

29

K260273

SHAFT

output, Carraro 106581

1шт.

30

K965409

SHAFT

SPACER, rear, Carraro 105357

1шт.

31

K965396

COVER

PLATE, rear, Carraro 89244

1шт.

32

K395136

ROLLER BEARING

roller, Carraro 27515

1шт.

33

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING ball

1шт.
