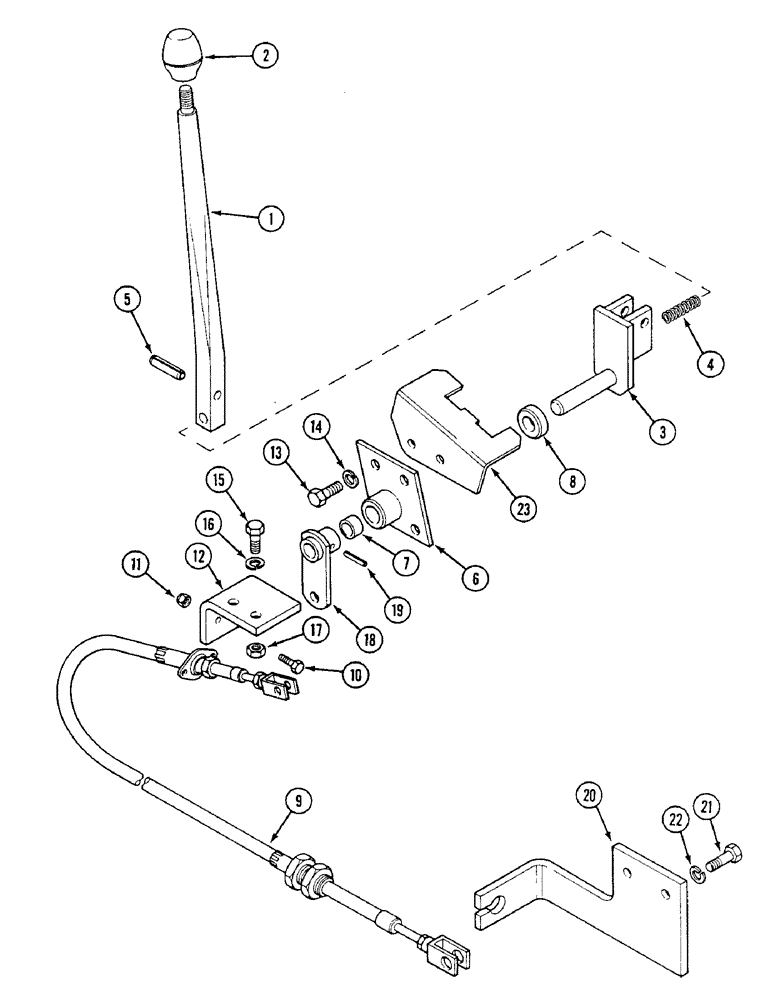

Запчасти Case IH 1494 (6-226) - MFD ENGAGEMENT LEVER, TRACTORS WITH CAB (06) - POWER TRAIN

1

K207104

LEVER

MFD selector

1шт.

2

K950493

KNOB

selector lever

1шт.

3

K207163

BLOCK

SPINDLE selector lever

1шт.

4

K13507

SPRING

gear detent

1шт.

5

K623894

PIN

roll, 5/16 x 1-1/4 inch

1шт.

6

K303119

PLATE

BRACKET spindle

1шт.

7

K628759

BUSHING

bracket

2шт.

8

K207191

BUSHING

SPACER spindle

1шт.

9

K307987

CABLE

inner and outer, complete with clevis pins

1шт.

10

K613988

SCREW

No. 10 UNF x 3/4 inch

2шт.

11

K617299

LOCK NUT

self locking, No. 10 UNF

2шт.

12

K207336

BRACKET

cable support, upper

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

3шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

15

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

BOLT 5/16 UNC x 3/4 inch

2шт.

16

K19481

SPRING WASHER

WASHER lock, 5/16 inch

2шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

18

K952260

LEVER

operating

1шт.

19

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, 3/16" x 7/8", Slotted

1шт.

20

K207583

BRACKET

cable support

1шт.

21

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm

2шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

23

K207585

PLATE

GATE hand lever

1шт.
