Запчасти Case IH 1494 (6-224) - MFD ENGAGEMENT LEVER, TRACTORS WITHOUT CAB (06) - POWER TRAIN

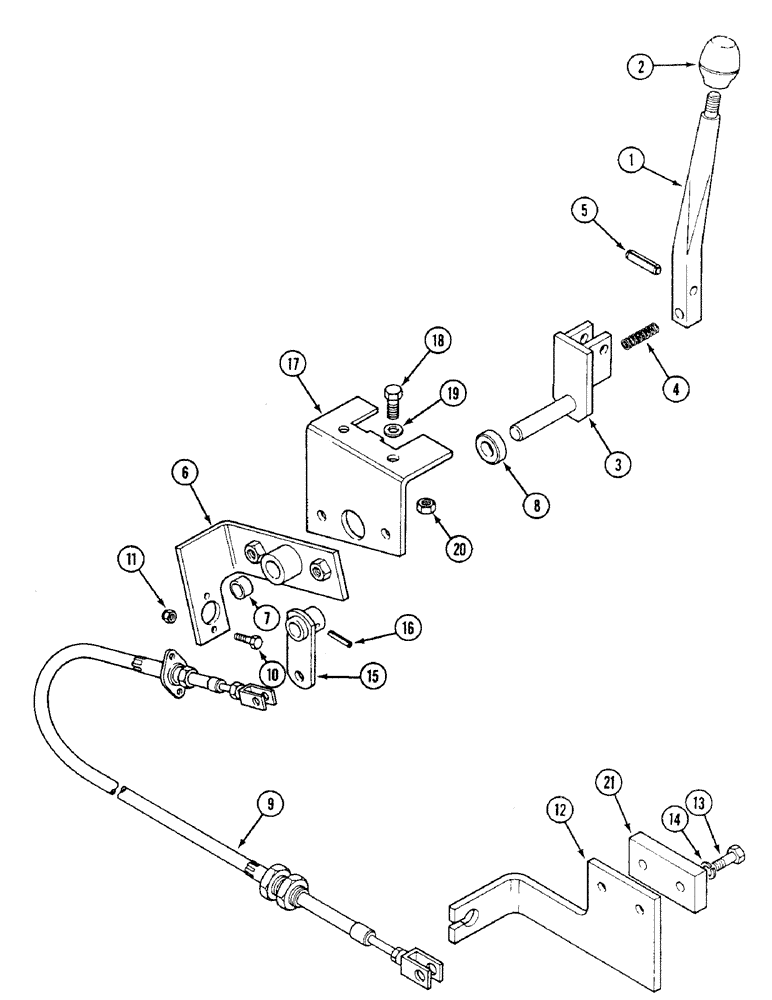

Схема запчастей Case IH 1494 - (6-224) - MFD ENGAGEMENT LEVER, TRACTORS WITHOUT CAB (06) - POWER TRAIN
6
19
5
7
14
18
16
1
12
4
3
11
2
13
15
10
21
9
8
20
17

Артикул

Название

Примечание

Количество

1

K207961

LEVER

MFD selector, Replaces: K206949

1шт.

2

K950493

KNOB

selector lever

1шт.

3

K207163

BLOCK

SPINDLE selector lever

1шт.

4

K13507

SPRING

gear detent

1шт.

5

K623894

PIN

roll, 5/16 x 1-1/4 inch

1шт.

6

K207337

BRACKET

spindle

1шт.

7

K628759

BUSHING

bracket

2шт.

8

K207191

BUSHING

SPACER spindle

1шт.

9

K307987

CABLE

inner and outer, complete with clevis pins

1шт.

10

K613988

SCREW

No. 10 UNF x 3/4 inch

2шт.

11

K617299

LOCK NUT

self-locking, No., 10 UNF

2шт.

12

K207583

BRACKET

cable support

1шт.

13

K650645

BOLT

M8 x 35 mm

2шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

15

K952260

LEVER

operating

1шт.

16

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, 3/16" x 7/8", Slotted

1шт.

17

K207584

PLATE

GATE hand lever

1шт.

18

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

4шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

20

825-1408

NUT,M8, Cl 8

2шт.

21

K207349

BLOCK

SPACER cable bracket

1шт.

Выбрано товаров: 21
