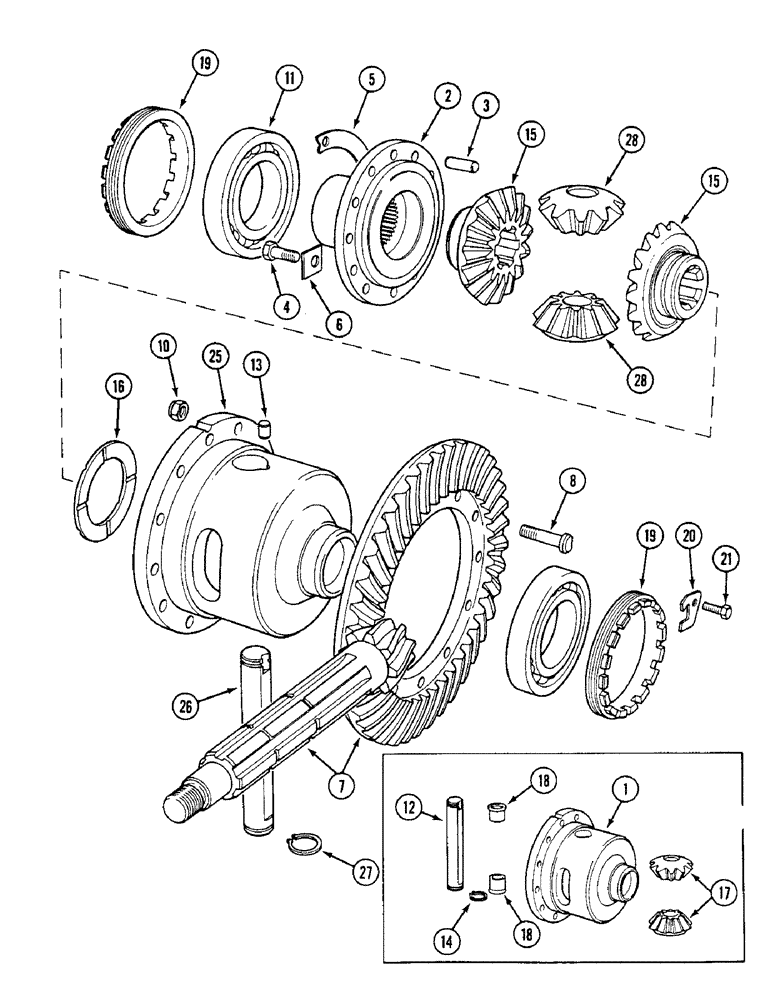

Запчасти Case IH 1494 (6-218) - DIFFERENTIAL (06) - POWER TRAIN

1

REF

INSTRUCTION

CAGE differential, prior to P.I.N. 11518512, order Ref. 25, 26, 27 and 28

1шт.

2

K903184

FLANGE

PLATE end

1шт.

3

K621801

PIN

DOWEL, 3/8 x 1-1/8 inch

3шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Order 413-616 Hex, 3/8"-16 x 1", G5, Full Thd

9шт.

5

K903185

WASHER

tab, end plate

3шт.

6

K626372

WASHER

tab, end plate

3шт.

7

K964873

GEAR-SET

PINION AND SPIRAL GEAR bevel, Synchromesh, two wheel drive

1шт.

7

K965895

BEVEL GEAR

PINION AND SPIRAL GEAR bevel, Synchromesh, MFD

1шт.

7

K962894

GEAR-SET

BEVEL PINION AND SPIRAL GEAR, power shift, two wheel drive

1шт.

7

K261788

GEAR-SET

BEVEL PINION AND SPIRAL GEAR bevel, power shift, MFD

1шт.

8

K905664

WHEEL BOLT

7/16 inch UNC, special

12шт.

10

232-4117

LOCK NUT,7/16"-14, GC

NUT, LOCK, 7/16"-14, GC

12шт.

11

K19010

BALL BEARING

BEARING ball

2шт.

12

K951551

PIN

1-1/8 inch, 29 mm, diameter, prior to P.I.N. 11518512

1шт.

13

K621858

PIN

DOWEL pin

1шт.

14

103-11112

SNAP RING,#112, Ext

Ring, Snap, #112, Ext

2шт.

15

K30234

CONE PINION

GEAR bevel, 16 teeth

2шт.

16

K940805

WASHER, THRUST

WASHER thrust

1шт.

17

K261657

GEAR

PINION bevel, with bushing, prior to P.I.N. 11518512, Includes: Ref. 18

2шт.

18

K203837

BUSHING

bevel pinion

1шт.

19

K15007

RING, LOCKING

ADJUSTER pinion

2шт.

20

K626420

WASHER

PLATE locking

2шт.

21

K602801

BOLT (SPREADER)

BOLT, 5/16 inch UNC, order 413-58

2шт.

25

K210383

CAGE

differential, P.I.N. 11518512 and after

1шт.

26

K206650

PIN

1-1/4 inch, 32 mm, diameter, P.I.N. 11518512 and after

1шт.

27

K11129

RING, SNAP

RING snap, 1-1/4 inch, 32 mm, external, P.I.N. 11518512 and after

2шт.

28

K206651

GEAR

PINION bevel, without bushing, P.I.N. 11518512 and after

2шт.
