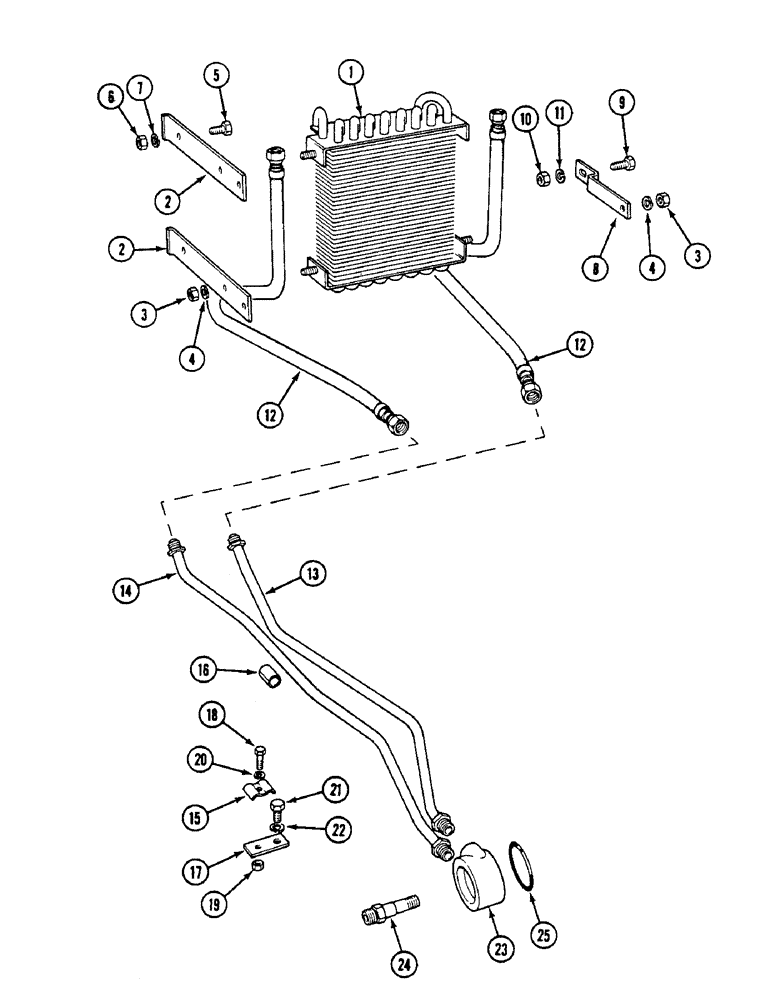

Запчасти Case IH 1494 (2-002) - ENGINE OIL COOLER - UK5516 (02) - ENGINE

1

K306303

COOLER

oil

1шт.

2

K306304

SUPPORT

BRACKET support

2шт.

3

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

4

K19481

SPRING WASHER

WASHER lock, 5/16 inch

3шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

2шт.

6

825-1408

NUT,M8, Cl 8

2шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

8

K306307

STAY

with air conditioning

1шт.

8

K306306

STAY

without air conditioning

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

1шт.

10

825-1408

NUT,M8, Cl 8

1шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

12

K201664

HOSE

flexible

2шт.

13

K206745

HOSE

TUBE oil feed

1шт.

14

K206746

HOSE

TUBE oil return

1шт.

15

K951974

CLIP

1шт.

16

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE nylon

4шт.

17

K203934

CLAMP

BRACKET support clip

1шт.

18

K602737

SCREW

BOLT 1/4 UNC x 1 inch

1шт.

19

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

1шт.

20

K626341

SPRING WASHER

WASHER lock, 1/4 inch

1шт.

21

K602982

SCREW,3/8" - 16 x 3/4", Gr S

BOLT 3/8 UNC x 3/4 inch

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

K955686

HOUSING

oil filter

1шт.

24

K200039

CONNECTOR, ELEC

CONNECTOR 5/8 UNC, 3/4 inch UNF

1шт.

25

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.
