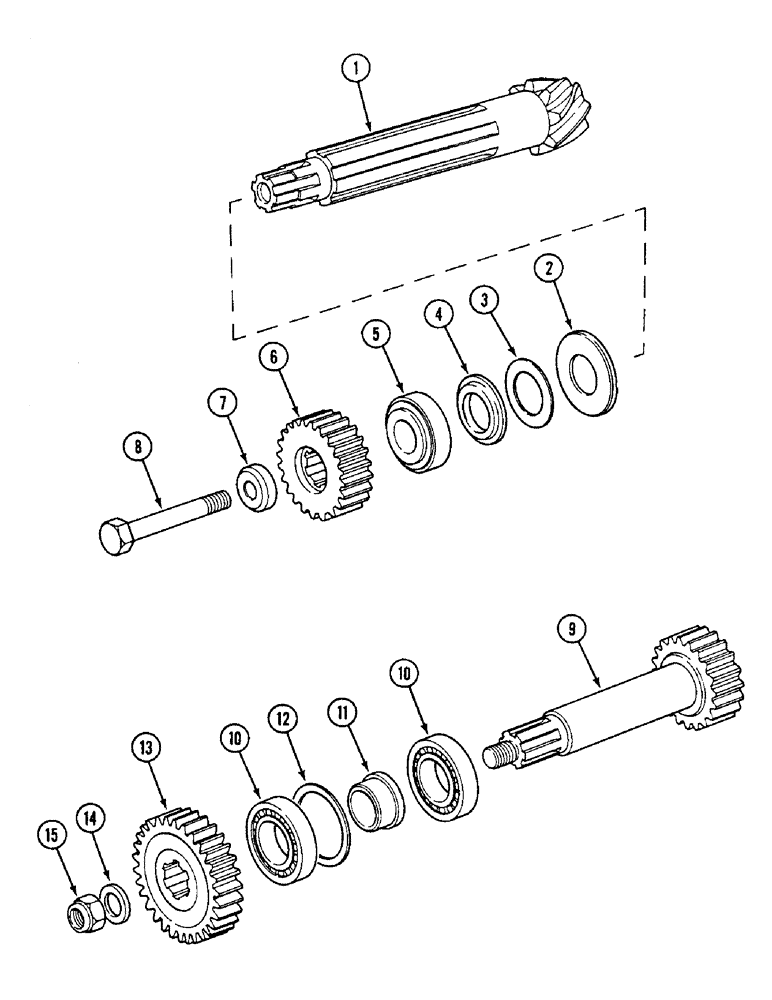

Запчасти Case IH 1494 (6-216) - IDLER SHAFT AND GEARS, MFD, POWER SHIFT (06) - POWER TRAIN

1

K261788

GEAR-SET

BEVEL PINION AND SPIRAL GEAR bevel

1шт.

2

K953045

SPACER

pinion shaft

1шт.

3

K950878

SHIM

pinion shaft, 0.030 inch

1шт.

3

K950879

SHIM

pinion shaft, 0.010 inch

1шт.

3

K950880

SHIM

pinion shaft, 0.003 inch

1шт.

3

K950881

SHIM

pinion shaft, 0.002 inch

1шт.

4

K953044

BUSHING

SPACER pinion shaft

1шт.

5

REF

INSTRUCTION

BEARING, order A13161 and D71216

1шт.

6

K206948

GEAR

pinion shaft, 23 teeth

1шт.

7

K626777

WASHER

5/8 inch, 16 mm, special

1шт.

8

K601218

BOLT

5/8 UNC x 4-1/2 inch

1шт.

9

K206947

SHAFT

idler

1шт.

10

REF

INSTRUCTION

BEARING roller, tapered, North America, G15218 and G15219

2шт.

11

K953043

BUSHING

COLLAR idler shaft

1шт.

12

K626960

SHIM,.002" Thk

Idler shaft .002" Thk

1шт.

12

K626961

SHIM,.005" Thk

Idler shaft .005" Thk

1шт.

12

K626962

BLOCK

SHIM idler shaft, 0.010 inch, 0.25 mm

1шт.

12

K626963

SHIM,.030" Thk

Idler shaft (0.76 mm) .030" Thk

1шт.

13

K205166

GEAR

idler, 30 teeth, Carraro 116103

1шт.

14

K626321

WASHER

idler shaft, 3/4 inch, 19 mm

1шт.

15

K617307

LOCK NUT

self locking, 3/4 inch UNF

1шт.
