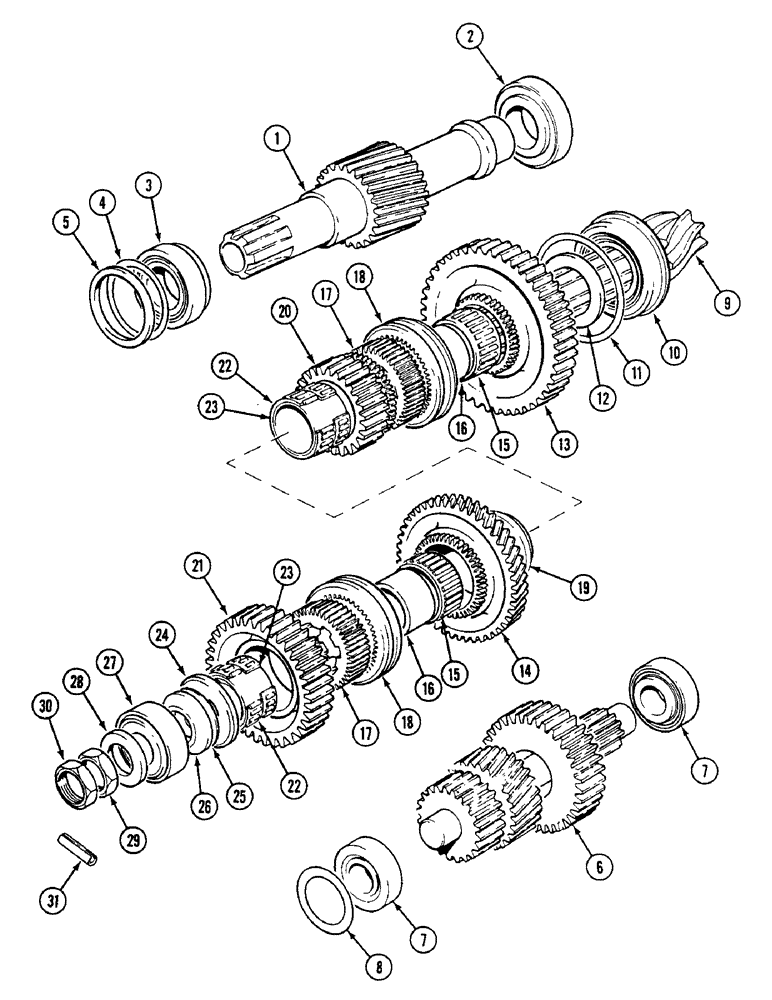

Запчасти Case IH 1494 (6-214) - RANGE GEARBOX, SHAFTS AND GEARS, POWER-SHIFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
K948489
DRIVE SHAFT
SHAFT drive
1шт.
2
K620117
ROLLER
BEARING roller, tapered, North America, order A13161 and S60769
1шт.
3
REF
INSTRUCTION
BEARING, order B17220 and 300426R91
1шт.
4
K626254
SHIM,.002" Thk
(0.05 mm) .002" Thk
1шт.
4
K626255
SHIM,.005" Thk
(0.13 mm) .005" Thk
1шт.
4
K626256
SHIM,.015" Thk
(0.38 mm) .015" Thk
1шт.
4
K626257
SHIM,.030" Thk
(0.76 mm) .030" Thk
1шт.
5
K940603
BUSHING
SPACER
1шт.
6
K928317
SHAFT
LAYSHAFT
1шт.
7
K620116
TAPERED BEARING,31.75mm ID x 68.26mm OD x 22.23mm W
roller, tapered
2шт.
8
K928485
SHIM
0.002 inch, 0.05 mm
1шт.
8
K928486
SHIM
0.005 inch, 0.13 mm
1шт.
8
K928487
SHIM
0.015 inch, 0.38 mm
1шт.
8
K928488
SHIM
0.030 inch, 0.76 mm
1шт.
9
K962894
GEAR-SET
BEVEL PINION AND SPIRAL GEAR bevel, two wheel drive
1шт.
9
K261788
GEAR-SET
BEVEL PINION AND SPIRAL GEAR bevel, MFD
1шт.
10
K620158
TAPERED BEARING
BEARING roller, tapered
1шт.
11
K626983
SHIM,.002" Thk
(0.05 mm) .002" Thk
1шт.
11
K626984
SHIM,.005" Thk
(0.13 mm) .005" Thk
1шт.
11
K626985
SHIM
0.010 inch, 0.25 mm
1шт.
12
K928637
COLLAR
1шт.
13
K916877
GEAR
46 teeth, first range
1шт.
14
K928319
GEAR
43 teeth, reverse range
1шт.
15
K620081
NEEDLE BEARING
BEARING roller, needle
2шт.
16
K917103
BUSHING
BEARING BUSHING, short
2шт.
17
K928636
GEAR
CLUTCH fixed dog
2шт.
18
K917109
GEAR
CLUTCH sliding dog
2шт.
19
K928637
COLLAR
1шт.
20
K916879
GEAR
24 teeth, third range
1шт.
21
K928634
GEAR
36 teeth, second range
1шт.
22
K620080
NEEDLE BEARING
BEARING roller, needle
4шт.
23
K917104
BUSHING
BEARING BUSHING, long
2шт.
24
K917106
COLLAR
1шт.
25
K943058
SHIM
0.002 inch, 0.05 mm, two wheel drive
1шт.
25
K943059
SHIM
0.005 inch, 0.13 mm, two wheel drive
1шт.
25
K943060
SHIM
0.015 inch, 0.38 mm, two wheel drive
1шт.
25
K943061
SHIM
0.030 inch, 0.76 mm, two wheel drive
1шт.
26
K928641
BUSHING
SPACER, two wheel drive
1шт.
28
K14687
WASHER
1-1/8 inch, 29 mm, two wheel drive
1шт.
29
K623317
LOCK NUT
1-1/8 inch BSF
1шт.
30
K622805
LOCK NUT
lock, 1-1/8 BSF
1шт.
31
138-100
LOCK PIN,3/16" x 1 1/2", Slotted
PIN, 3/16" x 1 1/2", Slotted
1шт.
Выбрано товаров: 42
