Запчасти Case IH 1494 (6-210) - GEARBOX PUMP, POWER SHIFT (06) - POWER TRAIN

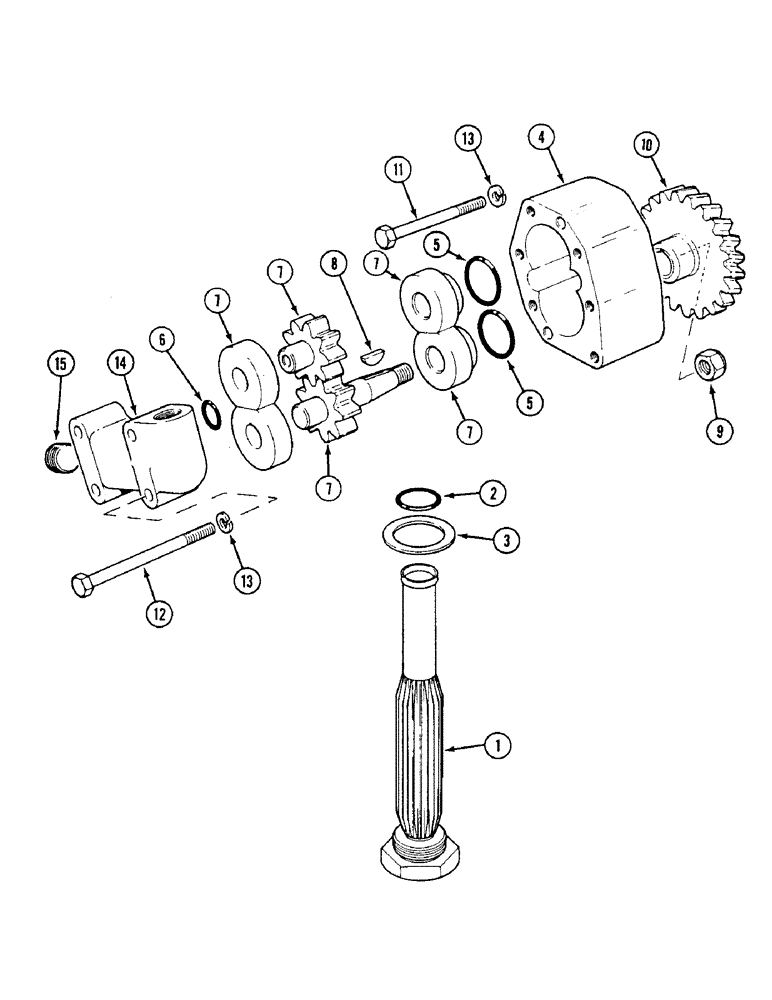

Схема запчастей Case IH 1494 - (6-210) - GEARBOX PUMP, POWER SHIFT (06) - POWER TRAIN
7
10
13
2
7
8
7
11
13
12
6
5
15
14
9
4
7
1
3
7
5

Артикул

Название

Примечание

Количество

1

K205927

FILTER

oil

1шт.

2

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

3

K17457

WASHER

sealing, 1-1/4 inch, 34 mm, ID

1шт.

REF

INSTRUCTION

PUMP ASSEMBLY, Includes: Ref. 4 - 7

1шт.

4

K963525

PUMP

1шт.

K962993

SEALING RING

O-Rings, Includes: Ref. 5 & 6

1шт.

5

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

2шт.

6

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3шт.

7

K962992

ROTOR

KIT, rotors and bearings

1шт.

8

K19604

KEY

Woodruff No. 405

1шт.

9

K617303

LOCK NUT

self-locking, 7/16 inch UNF

1шт.

10

K928670

GEAR

1шт.

11

K600218

BOLT

5/16 UNC x 3-1/4 inch, order 413-552

2шт.

11

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

hex, 5/16 NC x 2-1/4 inch

1шт.

12

K600223

BOLT

5/16 UNC x 4-1/2 inch, order 413-572

4шт.

13

K19481

SPRING WASHER

WASHER lock, 5/16 inch, order 492-11031

6шт.

14

K923653

CONNECTOR, ELEC

CONNECTOR pump outlet

1шт.

15

K619539

PLUG

3/4 inch, 19 mm

1шт.

Выбрано товаров: 18
