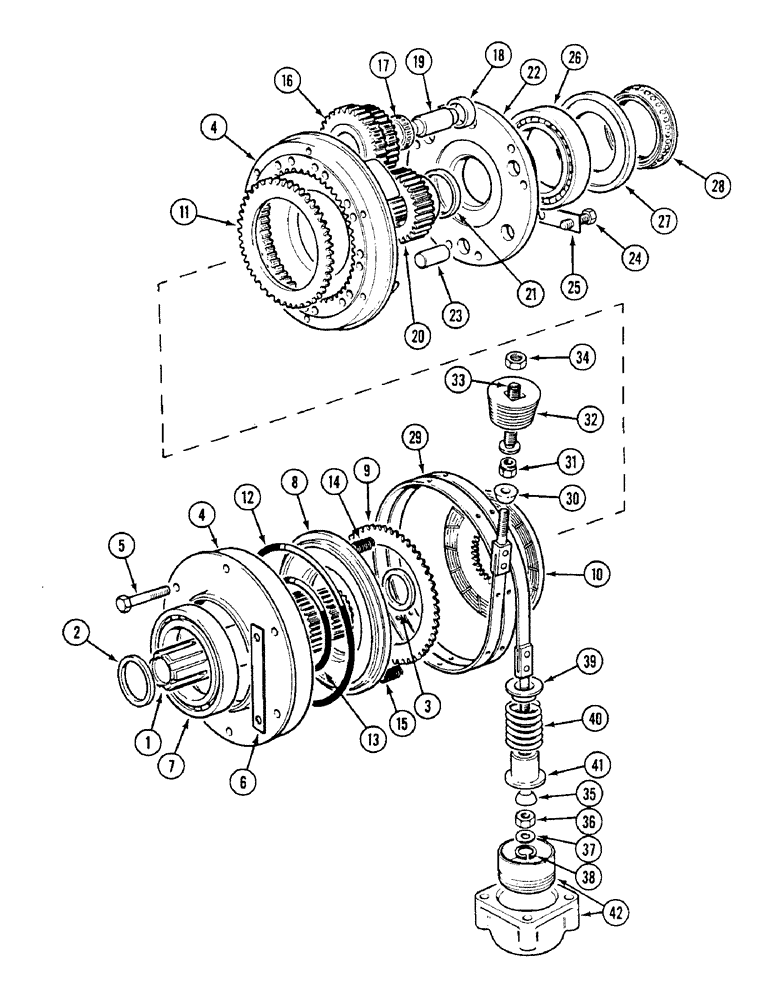

Запчасти Case IH 1494 (6-208) - REAR PLANETARY ASSEMBLY, POWER SHIFT (06) - POWER TRAIN

1

K948486

DRIVE SHAFT

SHAFT drive

1шт.

2

K908509

WASHER

thrust, front

1шт.

3

K917185

WASHER

thrust, inner

1шт.

4

K917836

CARRIER

AND CLUTCH CYLINDER, Includes: Ref. 5 & 6

1шт.

5

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

6шт.

6

K626386

WASHER

tab

3шт.

7

K620082

BEARING, BALL

BEARING ball

1шт.

8

K943958

PISTON

clutch cylinder

1шт.

K262538

CLUTCH PACK

PLATE ASSEMBLY selective clutch, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE clutch, steel

4шт.

10

NSS

NOT SOLD SEPARAT

PLATE clutch, grooved faces

3шт.

10

NSS

NOT SOLD SEPARAT

PLATE clutch, plain bronze faces

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE backing

1шт.

12

238-5441

O-RING,0.275" Thk x 6.975" ID, -441, Cl 5, 75 Duro

7 inch, 178 mm, internal diameter

1шт.

13

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

14

K929779

SPRING

inner

9шт.

15

K13507

SPRING

gear detent

18шт.

16

K948487

GEAR

PLANETARY GEAR, set of three

1шт.

17

K620277

ROLLER CAGE BEARING

BEARING roller, needle, 1-1/4 x 1-5/8 x 1 inch

3шт.

18

K952662

WASHER, THRUST

SPACER

3шт.

19

K940290

PIN

bearing

3шт.

20

K948488

GEAR

sun

1шт.

21

K917186

WASHER

thrust, rear

1шт.

22

K207666

FLANGE

COVER end, Replaces: K917838

1шт.

23

S65037

DOWEL

PIN, 5/8 x 1-1/4 inch

3шт.

24

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

25

K626388

WASHER

tab

3шт.

26

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

BEARING ball

1шт.

26

1341352C1

BEARING ball, optional

1шт.

27

K917834

PLATE

abutment

1шт.

28

K210447

BEARING

Replaces: K917835

1шт.

29

K943410

BRAKE BAND

BAND brake

1шт.

30

K940064

WASHER

conical, 3/8 inch

1шт.

31

K607377

LOCK NUT

self locking, 3/8 inch UNC

1шт.

32

K623827

PLUG

1 inch BSP

1шт.

33

K946253

SCREW,1/2" - 13 x 1 3/4"

BOLT, 1/2 UNC x 1-3/4 inch

1шт.

34

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

35

K917590

WASHER

spherical

1шт.

36

232-1416

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

37

K626314

WASHER

7/16 inch, 11 mm

1шт.

38

K621761

RING, SNAP

RING snap, 7/8 inch, 22 mm, internal

1шт.

39

K940346

STOP

brake band

1шт.

40

K625289

SPRING

1шт.

41

K952312

SLEEVE

1шт.

42

REF

INSTRUCTION

CYLINDER AND PISTON, brake band, See Figure 6-196

1шт.
