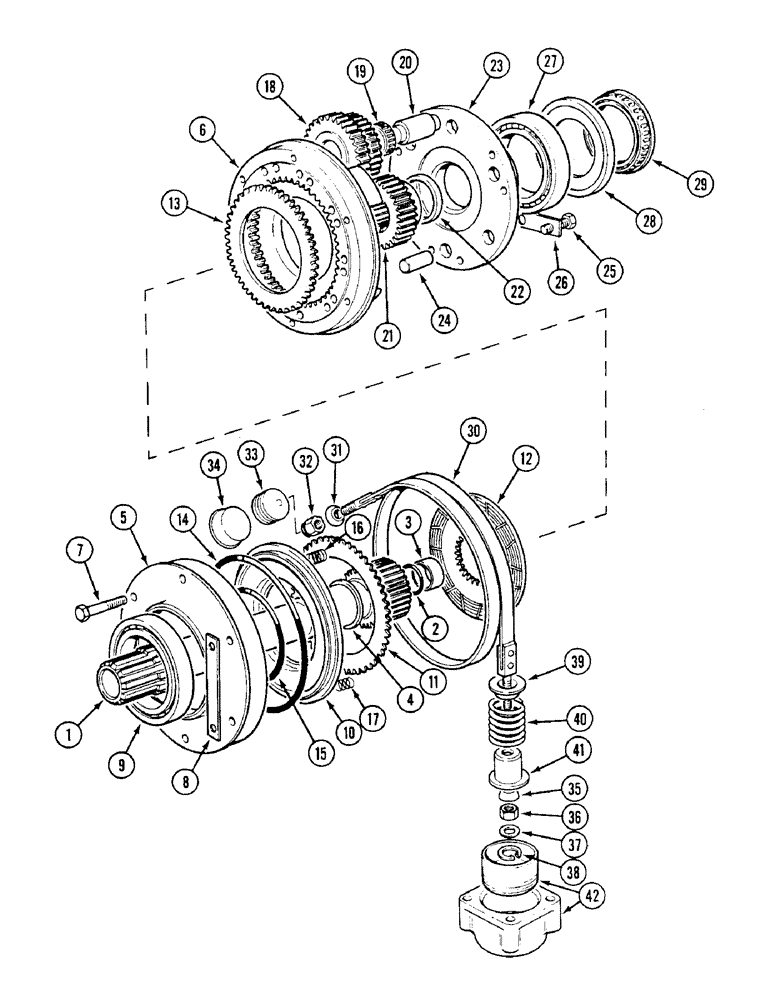

Запчасти Case IH 1494 (6-206) - FRONT PLANETARY ASSEMBLY, POWER SHIFT (06) - POWER TRAIN

1

K202083

SHAFT

clutch drive

1шт.

2

K623490

SEAL

oil, 1-1/8 x -7/8 x 3/8 inch, 29 x 48 x 10 mm

1шт.

3

K202124

BUSHING

1шт.

4

K908509

WASHER

thrust, front

1шт.

5

K917828

CARRIER

AND CLUTCH CYLINDER, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

CYLINDER clutch

1шт.

7

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

6шт.

8

K626386

WASHER

tab

3шт.

9

K620082

BEARING, BALL

BEARING ball

1шт.

10

K929781

PISTON

clutch cylinder

1шт.

K262537

CLUTCH PACK

PLATE ASSEMBLY clutch, selective assembly, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE clutch, steel

2шт.

12

NSS

NOT SOLD SEPARAT

PLATE clutch, grooved bronze faces

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE backing

1шт.

14

238-5441

O-RING,0.275" Thk x 6.975" ID, -441, Cl 5, 75 Duro

7 inch, 178 mm, ID

1шт.

15

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

16

K929779

SPRING

inner

6шт.

17

K13507

SPRING

outer

18шт.

18

K948483

GEAR

PLANETARY GEARS, set of three

1шт.

19

K620275

BEARING, NEEDLE

BEARING roller, needle

6шт.

20

K948484

PIN

bearing

3шт.

21

K202095

GEAR

sun

1шт.

22

K917186

WASHER

thrust, rear

1шт.

23

K207897

COVER

end, Replaces: K917831

1шт.

24

S65037

DOWEL

PIN, 5/8 x 1-1/4 inch

3шт.

25

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Order 413-616 Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

26

K626388

WASHER

tab

3шт.

27

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

BEARING ball, XL83 RHP

1шт.

28

K917834

PLATE

abutment

1шт.

29

K210447

BEARING

1шт.

30

K943409

BRAKE BAND

BAND brake

1шт.

31

K940064

WASHER

conical

1шт.

32

K607377

LOCK NUT

self locking, 3/8 inch UNC

1шт.

33

K623831

PLUG

1 inch BSP, special

1шт.

34

K628083

PLUG,Cap, 1.282" OD

plastic, 13/16 inch, 21 mm, diameter

1шт.

35

K917590

WASHER

spherical

1шт.

36

232-1416

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

37

K626314

WASHER

7/16 inch, 11 mm

1шт.

38

K621761

RING, SNAP

RING snap, 7/8 inch, 22 mm, internal

1шт.

39

K940346

STOP

brake band

1шт.

40

K625289

SPRING

1шт.

41

K952312

SLEEVE

1шт.

42

REF

INSTRUCTION

CYLINDER AND PISTON brake band, See Figure 6-196

1шт.
