Запчасти Case IH 1494 (6-204) - POWER SHIFT SELECTOR LEVER (06) - POWER TRAIN

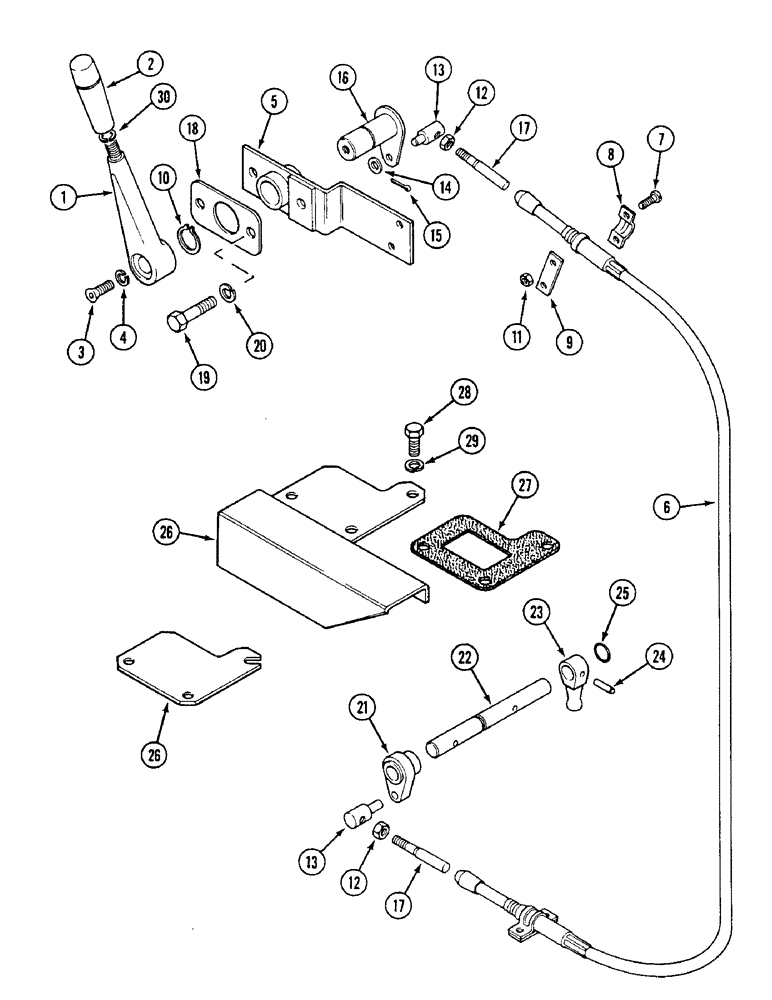

Схема запчастей Case IH 1494 - (6-204) - POWER SHIFT SELECTOR LEVER (06) - POWER TRAIN
11
24
8
16
6
26
15
10
22
14
27
20
13
17
2
12
9
23
29
5
18
25
1
3
17
30
4
21
13
19
7
26
12
28

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SELECTOR LEVER AND CABLE, without cab, Includes: Ref. 1 - 17

1шт.

REF

INSTRUCTION

SELECTOR LEVER AND CABLE, with cab, Includes: Ref. 1 - 17

1шт.

1

K261005

HANDLE

LEVER selector

1шт.

2

K307557

KNOB

selector lever

1шт.

3

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

1шт.

4

K207297

LOCK WASHER

lock, 1/4 inch

1шт.

5

K207676

BRACKET

lever shaft, without cab

1шт.

5

K207676

BRACKET

lever shaft, with cab

1шт.

6

K261003

CABLE

inner and outer, 1130 mm, without cab

1шт.

6

K261004

CABLE

CABLE, inner and outer, 975 mm, with cab

1шт.

7

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

- machine, pan Phillips, No. 10 NF x 5/8 inch

4шт.

8

K207283

CLIP

cable

2шт.

9

K207284

PLATE

cable clip

3шт.

10

K621530

RING, SNAP

RING retaining, lever shaft

1шт.

11

K617299

LOCK NUT

self locking, No., 10 UNF

2шт.

12

27122R1

LOCK NUT,1/4"-28, GC

NUT retaining

2шт.

13

K207292

PIVOT

cable end

2шт.

14

K626662

WASHER

1/4 inch

2шт.

15

K623605

PIN

cotter, pivot

2шт.

16

K207294

LEVER

AND SHAFT

1шт.

17

K207296

LARGE PIN

FITTING cable end

2шт.

18

K304556

PLATE

mounting

1шт.

19

K650645

BOLT

M8 x 35 mm

2шт.

20

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

21

K205309

LEVER

cable

1шт.

22

K205302

SHAFT

SPINDLE gearbox cover

1шт.

23

K201835

SELECTOR

LEVER spool valve

1шт.

24

K623729

PIN

3/16 x 3/4 inch

2шт.

25

K24554

O-RING

O RING, 3/8 inch, 10 mm, internal diameter

1шт.

26

K207780

COVER

PLATE gearbox cover, without cab

1шт.

26

K308400

COVER

PLATE gearbox cover, with cab

1шт.

27

K207786

GASKET,0.25mm Thk

cover plate

1шт.

28

K602803

BOLT

5/16 UNC x 3/4 inch, order 413-512

3шт.

29

K19481

SPRING WASHER

WASHER lock, 5/16 inch, 492-11031

3шт.

30

K19472

WASHER

flat, 3/8 inch, 10 mm

1шт.

Выбрано товаров: 35
