Запчасти Case IH 1494 (6-202) - RANGE SHIFT LEVER, POWER SHIFT, TRACTORS WITH CAB (06) - POWER TRAIN

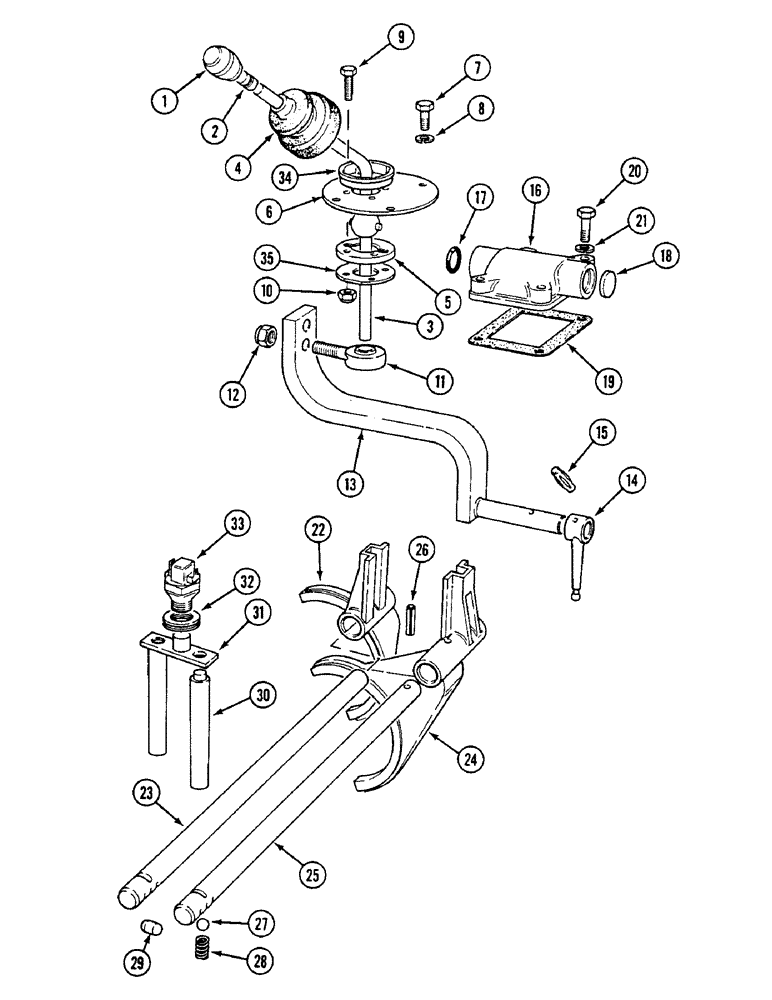

Схема запчастей Case IH 1494 - (6-202) - RANGE SHIFT LEVER, POWER SHIFT, TRACTORS WITH CAB (06) - POWER TRAIN
7
10
9
34
29
3
31
26
8
21
27
5
28
22
33
17
4
11
1
20
24
23
19
2
35
14
15
16
25
32
30
13
6
18
12

Артикул

Название

Примечание

Количество

1

K203121

BALL KNOB

KNOB lever

1шт.

2

K628472

RING

retaining, Serial Range: knob-lever

1шт.

3

K207053

LEVER

gear

1шт.

4

K204741

BELLOWS

COVER rubber

1шт.

5

K204810

HOUSING

ball

2шт.

6

K204803

PLATE

lever

1шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

4шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

10шт.

9

K606508

SCREW

BOLT, 1/4 UNC x 1-1/2 inch, order 461-32524

4шт.

10

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

11

K204680

ROD

JOINT ball

1шт.

12

131-377

LOCK NUT,5/8"-11, GC

NUT lock, ball joint, 5/8 inch UNC

1шт.

13

K204767

SHAFT

AND ARM selector

1шт.

14

K202079

SELECTOR

LEVER selector

1шт.

15

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

16

K950243

HOUSING

lever shaft

1шт.

17

K623630

SEAL

oil, 7/8 inch, 22 mm, ID

1шт.

18

41-16

PLUG,Exp, 1"

expansion, housing

1шт.

19

K950543

GASKET,0.2mm Thk

housing, to gearbox cover

1шт.

20

K600205

BOLT

5/16 UNC x 1-1/2 inch, order 413-524

4шт.

21

K19481

SPRING WASHER

WASHER lock, 5/16 inch, housing to gearbox cover, order 492-11031

4шт.

22

K917217

SELECTOR

FORK selector, first and third range

1шт.

23

K917216

SELECTOR

ROD selector, first and third range

1шт.

24

K917219

SELECTOR

FORK selector, second and reverse range

1шт.

25

K917218

SELECTOR

ROD selector, second and reverse range

1шт.

26

K623887

PIN,5.21mm OD x 25.4mm L

roll, 3/16 x 1 inch

2шт.

27

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24

4шт.

28

K13507

SPRING

gear detent

2шт.

29

K30430

LOCKING DEVICE

LOCK gear

1шт.

30

K954208

GUIDE

PLUNGER. safety switch

1шт.

31

K945204

PLUNGER

AND PLATE switch

1шт.

32

K626895

SHIM,.002" Thk

(0.05 mm) .002" Thk

1шт.

32

K626858

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

32

K626894

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

33

K262714

SWITCH

safety, starter

1шт.

34

K205234

RETAINER

upper

1шт.

35

K204742

PLATE

RETAINER, lower

1шт.
